15

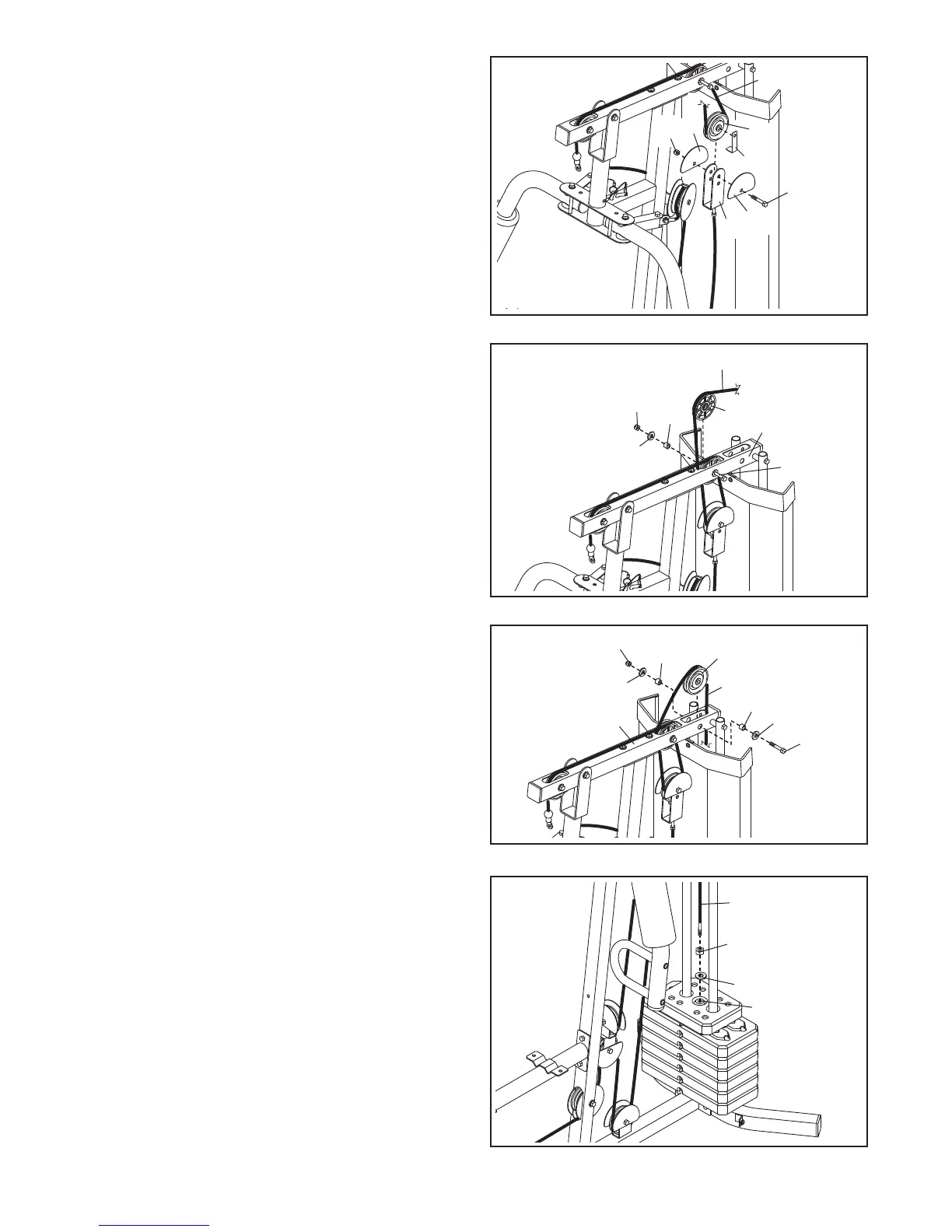

26. Wrap the High Cable (55) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (51), and
two Half Guards (43) at the upper hole in the U-
b
racket (45) with an M10 x 51mm Bolt (66) and
an M10 Locknut (56). Make sure that the Cable
T
rap is oriented to hold the Cable in the
groove of the Pulley and that the Half Guards
are on the outside of the U-bracket.
66
51
5
6
48
5
5
43
43
45
26
28. Route the High Cable (55) over a 90mm Pulley
(48) and down through the Top Frame (4). Attach
the Pulley inside the Top Frame with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Locknut (56).
71
55
52
52
48
57
4
57
56
28
27. Route the High Cable (55) up through the Top
Frame (4) and over a 90mm Thin Pulley (47).
Attach the Pulley inside the Top Frame with the
M10 x 67mm Bolt (71) used in step 25, an 11mm
Spacer (49), an M10 Washer (57), and an M10
Locknut (56).
55
47
71
4
49
57
56
27
29. Note: The shroud is shown removed in this
step for clarity.
Thread an M12 Nut (84) all the way onto the High
Cable (55). Place a Large Washer (85) on top of
the Weight Selector (24).
Tighten the High Cable (55) into the Weight
Selector (24) until all the slack is removed from
the cables. Tighten the M12 Nut (84) against the
Large Washer (85).
55
84
85
24
29
