14

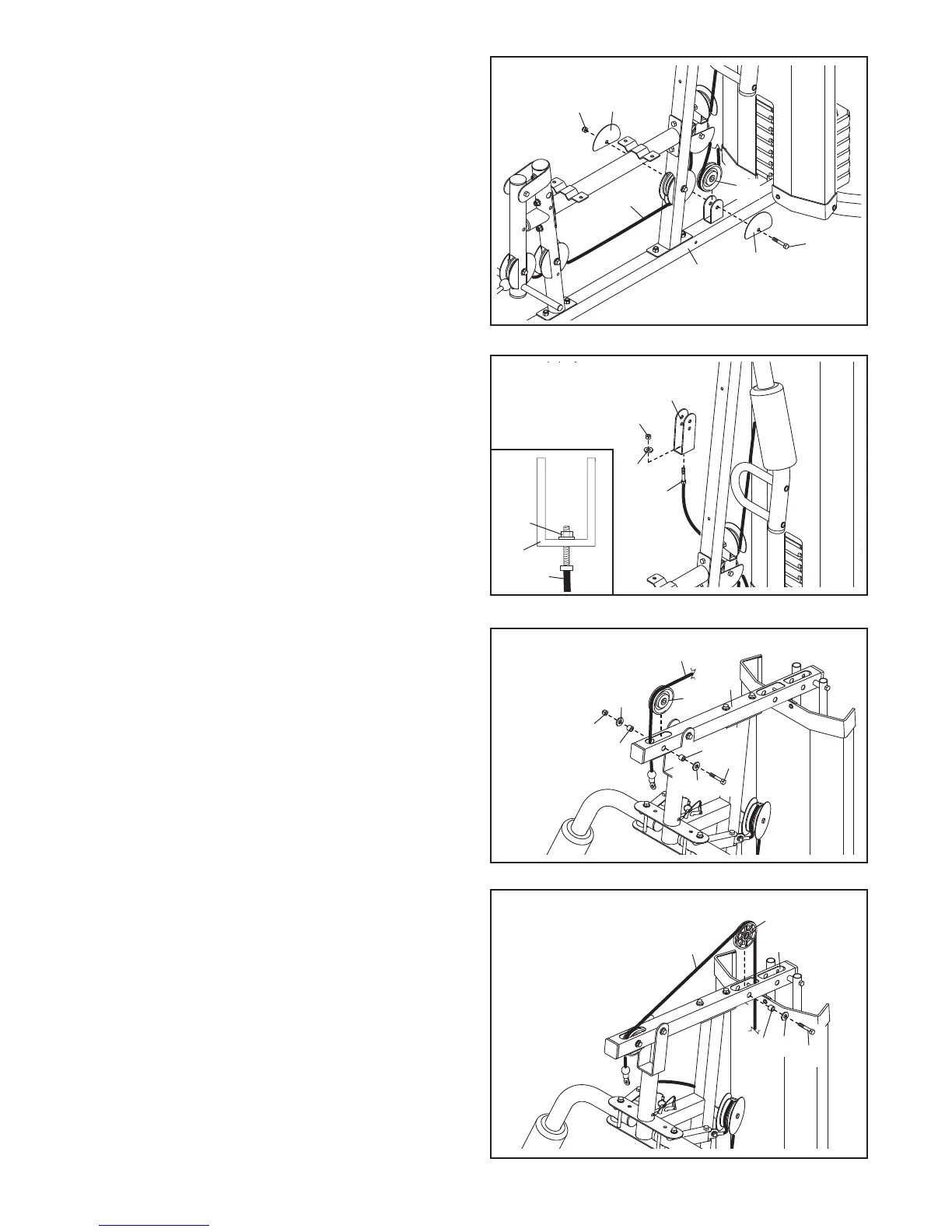

22. Route the Low Cable (53) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Base (1) with an M10 x 46mm Bolt (81)
a
nd an M10 Locknut (56). Make sure that the
Half Guards are on the outside of the bracket
a
s shown.
53
43
1
43
81
56
48
22
23. Attach the Low Cable (53) to the U-bracket (45)
with an M8 Washer (59) and an M8 Locknut (58).
See the inset drawing. Do not overtighten the
Locknut; it should be threaded onto the end
of the Cable so that only two threads are
showing above the Locknut.
53
45
58
58
45
59
53
23
24. Identify the High Cable (55). Route the Cable up
through the Top Frame (4) and over a 90mm
Pulley (48). Attach the Pulley inside the Top
Frame with an M10 x 67mm Bolt (71), two M10
Washers (57), two 12mm Spacers (52), and an
M10 Locknut (56).
25. Route the High Cable (55) over a 90mm Thin
Pulley (47) and down through the Top Frame (4).
Attach the Thin Pulley inside the Top Frame with
an M10 x 67mm Bolt (71), an M10 Washer (57),
and an 11mm Spacer (49). Make sure that the
Thin Pulley does not fall out of the Top Frame
while you complete steps 26 and 27.
4
55
49
57
47
71
25
56
4
55
52
52
57
57
48
71
24
