Weider 8980 I - Page 13

13

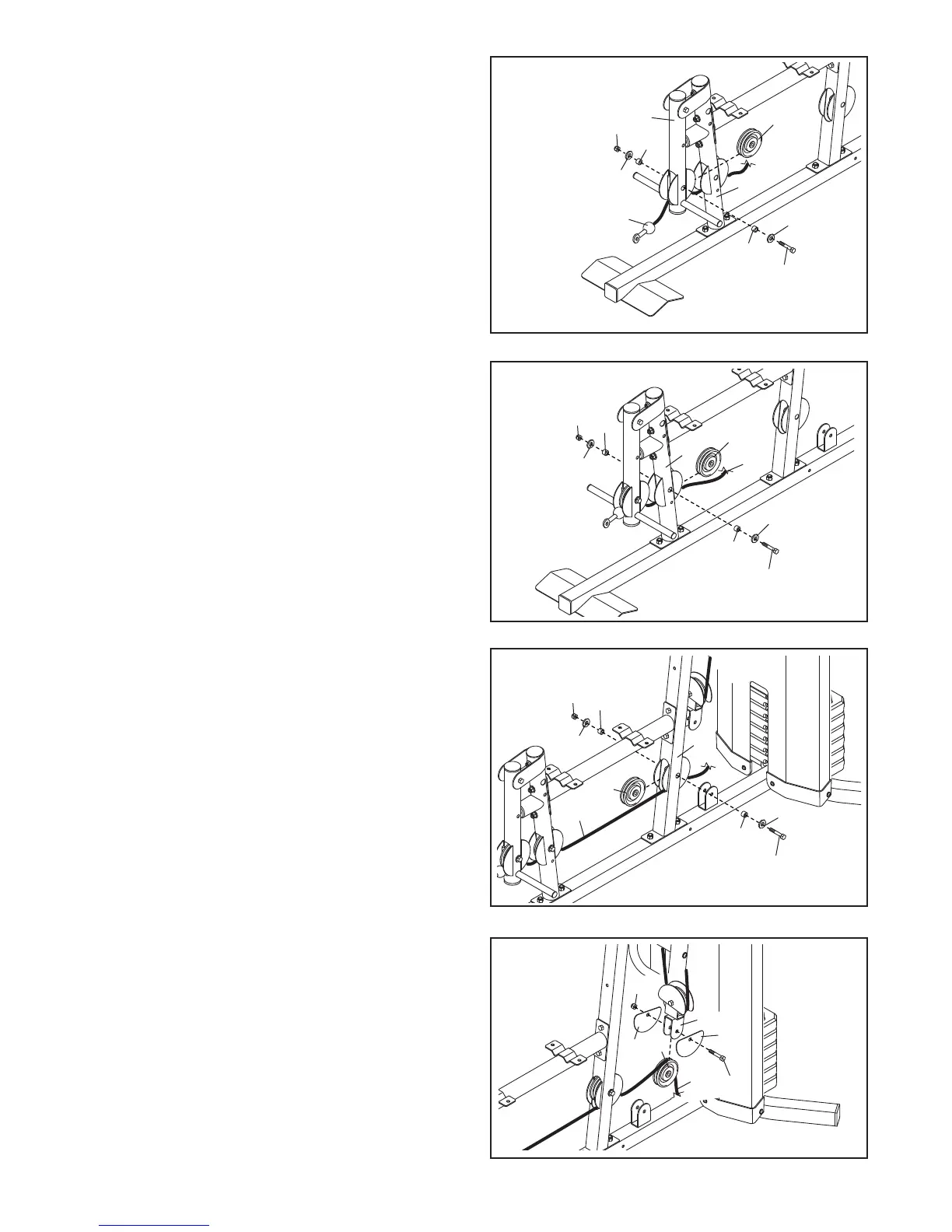

18. Identify the Low Cable (53). Route the Cable
through the Leg Lever (8) and the Front Leg (7).
A
ttach a 90mm Pulley (48) inside the Leg Lever
(8), over the Low Cable (53), with an M10 x
6
7mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Locknut (56).
19. Attach a 90mm Pulley (48) inside the Front Leg
(7), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Locknut (56).
56
7
53
52
52
57
57
48
71
19
8
7
53
52
52
57
57
48
71
56
18
20. Route the Low Cable (53) under a 90mm Pulley
(48) and through the Upright (3). Attach the Pulley
inside the Upright with an M10 x 67mm Bolt (71),
two M10 Washers (57), two 12mm Spacers (52),
and an M10 Locknut (56).
56
3
53
52
52
57
57
48
71
20
21. Route the Low Cable (53) over a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Locknut (56). Make
sure that the Half Guards are on the outside
of the U-bracket as shown.
56
53
48
43
43
63
81
21
