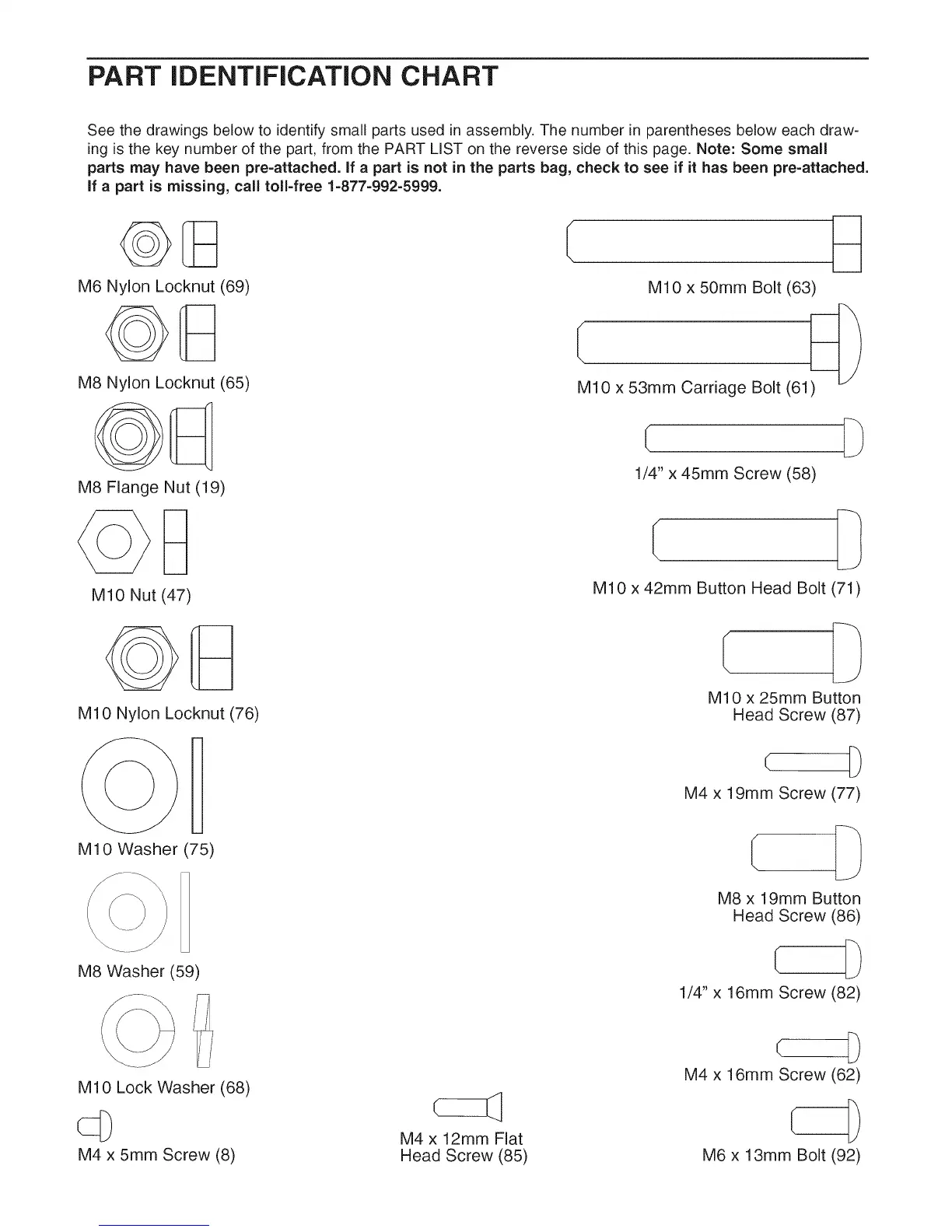

PART iDENTiFiCATiON CHART
See the drawings below to identify small parts used in assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST on the reverse side of this page. Note: Some small
parts may have been pre=attached. If a part is not in the parts bag, check to see if it has been pre=attached.
if a part is missing, call toll=free 1=877=992=5999.
M6 Nylon Locknut (69)
M8 Nylon kocknut (65)
M8 Flange Nut (19)
@D
MIO Nut (47)
M10 x 50mm Bolt (63)
MIO x 53mm Carriage Bolt (61
1/4" x 45mm Screw (58)
MIO x 42mm Button Head Bolt (71)
M10 Nylon Locknut (76)
E
M10 Washer (75)
M8 Washer (59)
MIO x 25mm Button
Head Screw (87)
D
M4 x 19mm Screw (77)
M8 x 19mm Button
Head Screw (86)
(
1/4" x 16ram Screw (82)
M10 Lock Washer (68)
M4 x 5mm Screw (8)
M4 x 12mm Flat
Head Screw (85)
M4 x 16mm Screw (62)
M6 x 13mm Bolt (92)
