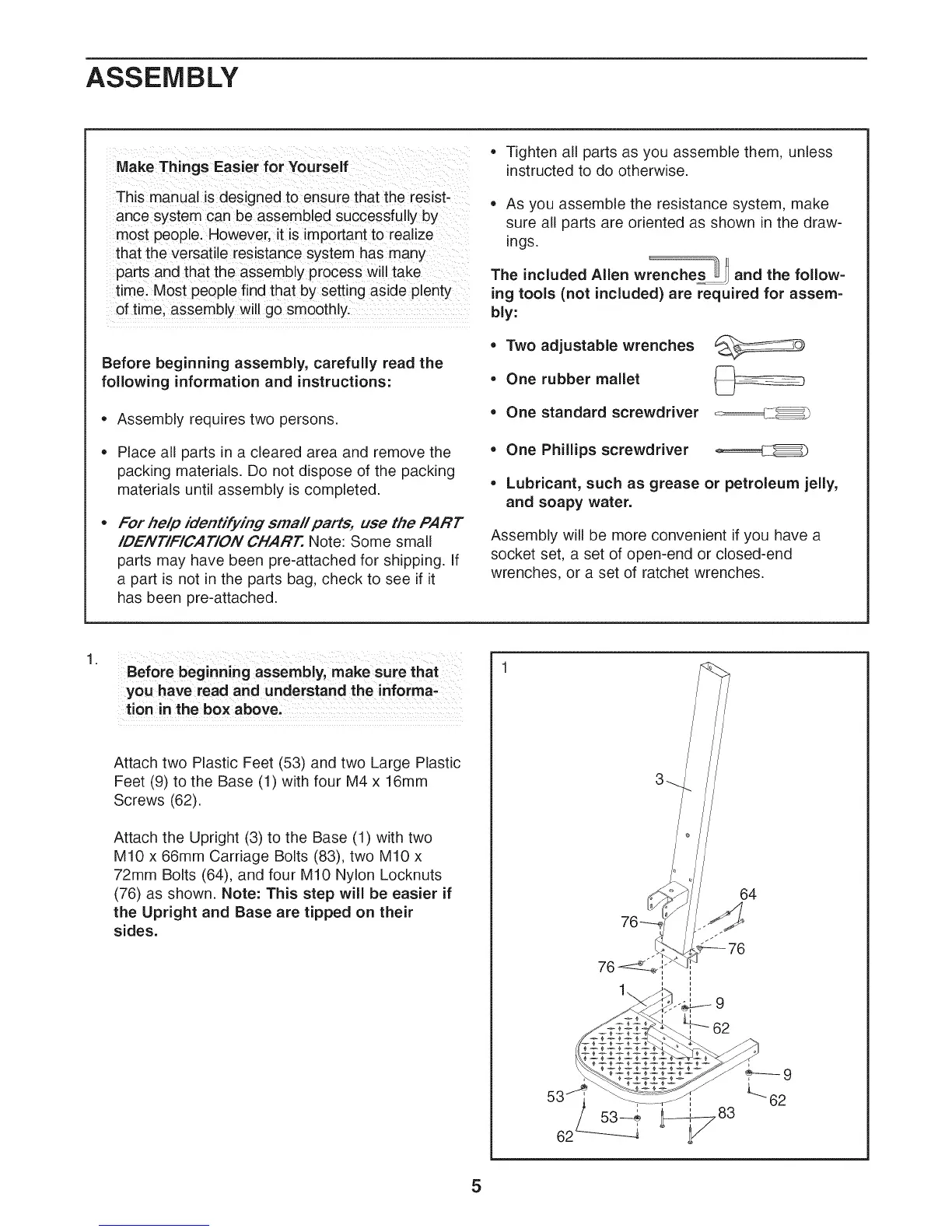

ASSEMBLY
Make Things Easier for Yourself
This manual is designed to ensure that the resist-
ance system can be assembled successfully by
most people. However, it is important to realize
that the versatile resistance system has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty
of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
o Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
For help identifying small parts, use the PART
IDENTiFICATiON CHART. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it
has been pre-attached.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
, As you assemble the resistance system, make
sure all parts are oriented as shown in the draw-
ings.
The included Allen wrenches jj and the follow-
ing tools (not included) are required for assem-
bly:
Two adjustable wrenches
One rubber mallet
One standard screwdriver
, One Phillips screwdriver _===_
Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
.
Beforebeginningassembly, surethat
you have read and understand the informa-
tion inthe box above:
Attach two Plastic Feet (53) and two Large Plastic
Feet (9) to the Base (1) with four M4 x 16mm
Screws (62).
Attach the Upright (3) to the Base (1) with two
M10 x 66mm Carriage Bolts (83), two M10 x
72mm Bolts (64), and four M10 Nylon Locknuts
(76) as shown. Note: This step will be easier if
the Upright and Base are tipped on their
sides.
9
64
5
To Next Page
