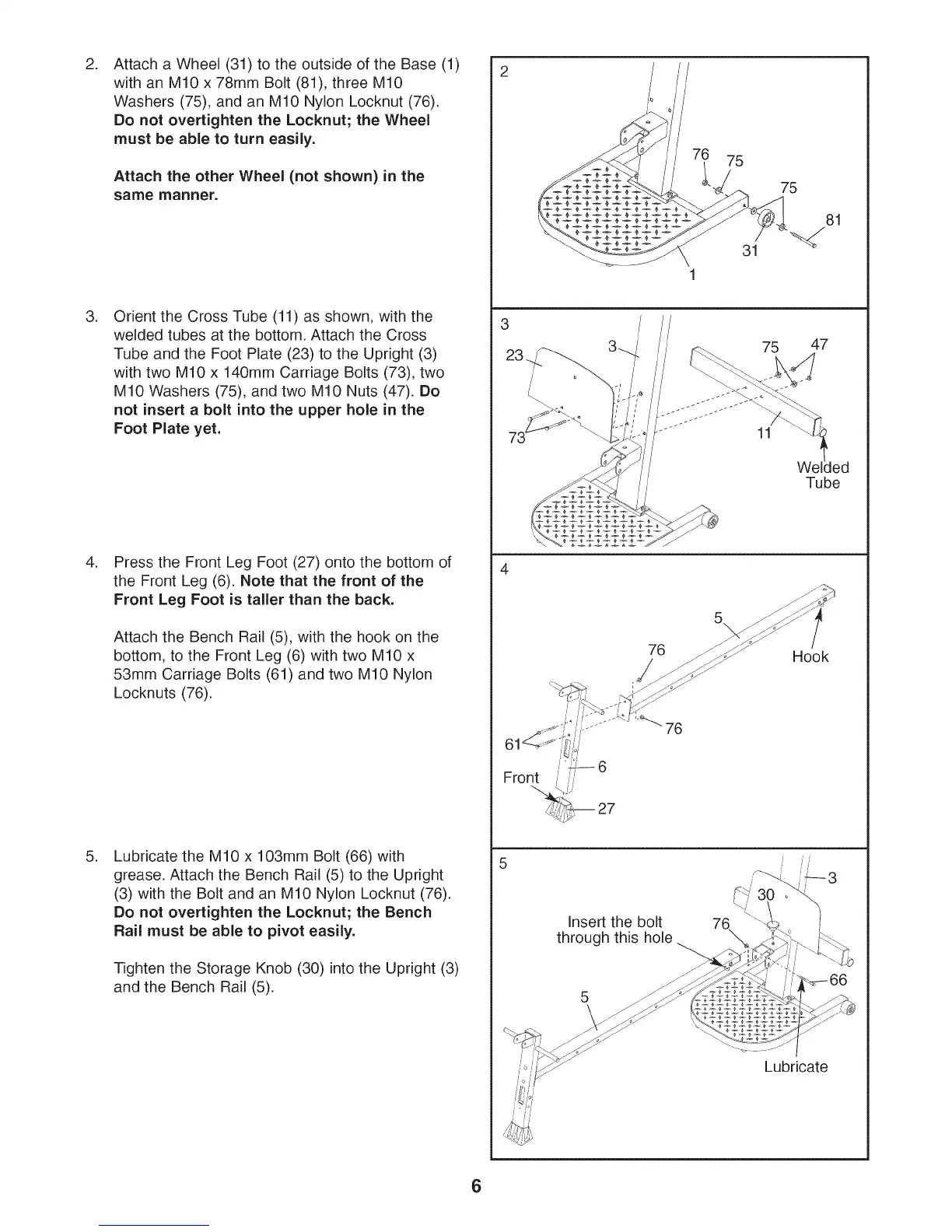

2. 2
.
.
.
Attach a Wheel (31) to the outside of the Base (1)
with an M10 x 78mm Bolt (81), three M10
Washers (75), and an M10 Nylon Locknut (76).
Do not overtighten the Locknut; the Wheel
must be able to turn easily.
Attach the other Wheel (not shown) in the
same manner.
Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom. Attach the Cross
Tube and the Foot Plate (23) to the Upright (3)
with two M10 x 140mm Carriage Bolts (73), two
M10 Washers (75), and two M10 Nuts (47). Do
not insert a bolt into the upper hole in the
Foot Plate yet.
Press the Front Leg Foot (27) onto the bottom of
the Front Leg (6). Note that the front of the
Front Leg Foot is taller than the back.
Attach the Bench Rail (5), with the hook on the
bottom, to the Front Leg (6) with two M10 x
53mm Carriage Bolts (61) and two M10 Nylon
Locknuts (76).
Lubricate the M10 x 103mm Bolt (66) with
grease. Attach the Bench Rail (5) to the Upright
(3) with the Bolt and an M10 Nylon Locknut (76).
Do not overtighten the Locknut; the Bench
Rail must be able to pivot easily.
Tighten the Storage Knob (30) into the Upright (3)
and the Bench Rail (5).
3
Front
75
31
75
81
-_/
75 47
11
We Jed
Tube
76
5\
Hook
Insert the bolt
through this hole
TZT±TZT±T±T±
Lubricate
6
