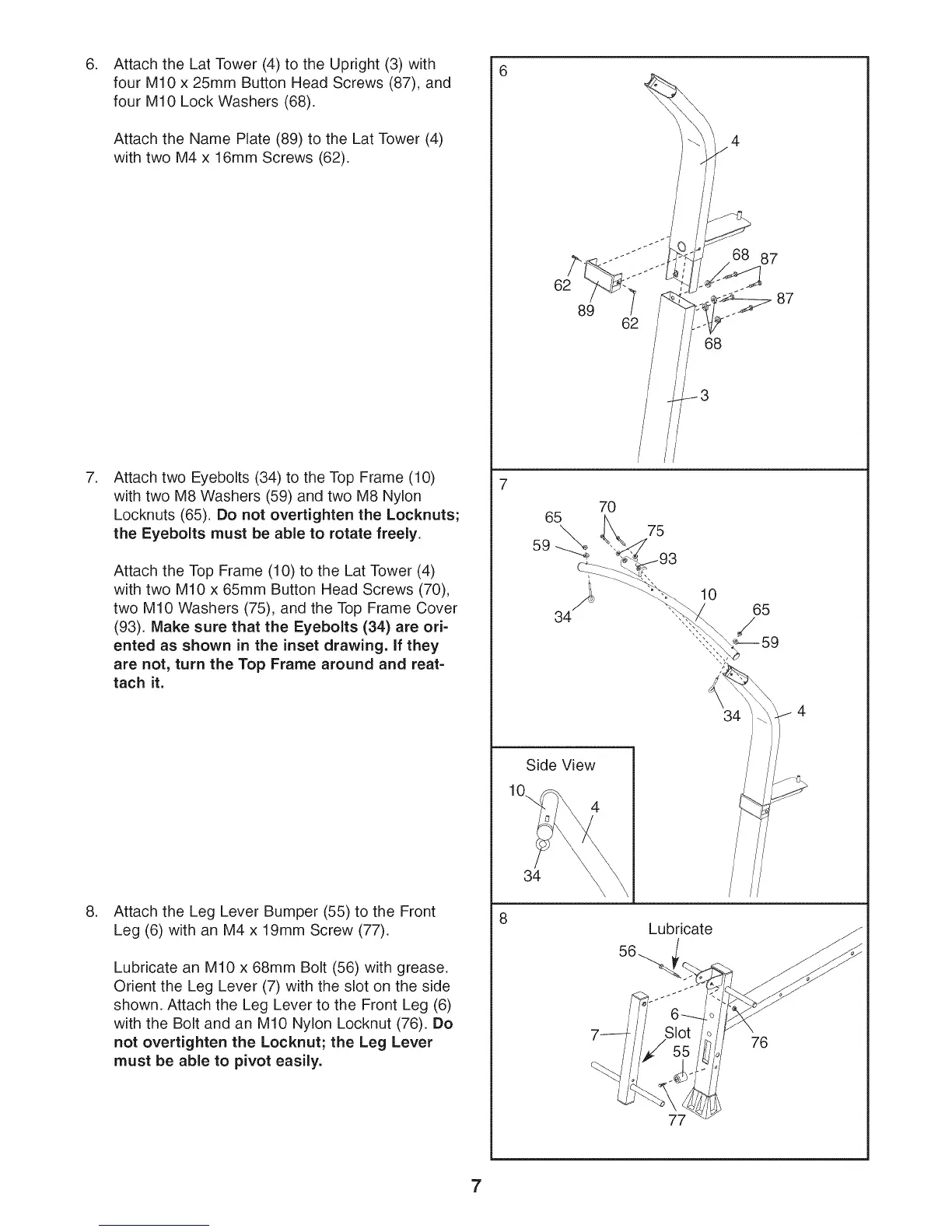

6. 6
.
.
Attach the Lat Tower (4) to the Upright (3) with
four M10 x 25mm Button Head Screws (87), and
four M10 Lock Washers (68).
Attach the Name Plate (89) to the Lat Tower (4)
with two M4 x 16mm Screws (62).
Attach two Eyebolts (34) to the Top Frame (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65). Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Head Screws (70),
two M10 Washers (75), and the Top Frame Cover
(93). Make sure that the Eyebolts (34} are ori-
ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reat-
tach it.
Attach the Leg Lever Bumper (55) to the Front
Leg (6) with an M4 x 19mm Screw (77).
Lubricate an M10 x 68mm Bolt (56) with grease.
Orient the Leg Lever (7) with the slot on the side
shown. Attach the Leg Lever to the Front Leg (6)
with the Bolt and an M10 Nylon Locknut (76). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
4
)"
62
89
62
87
68
70
65
59 _ 75
34
10
65
/
Y 59
34
34
4
Lubricate
76
77
7
To Next Page
