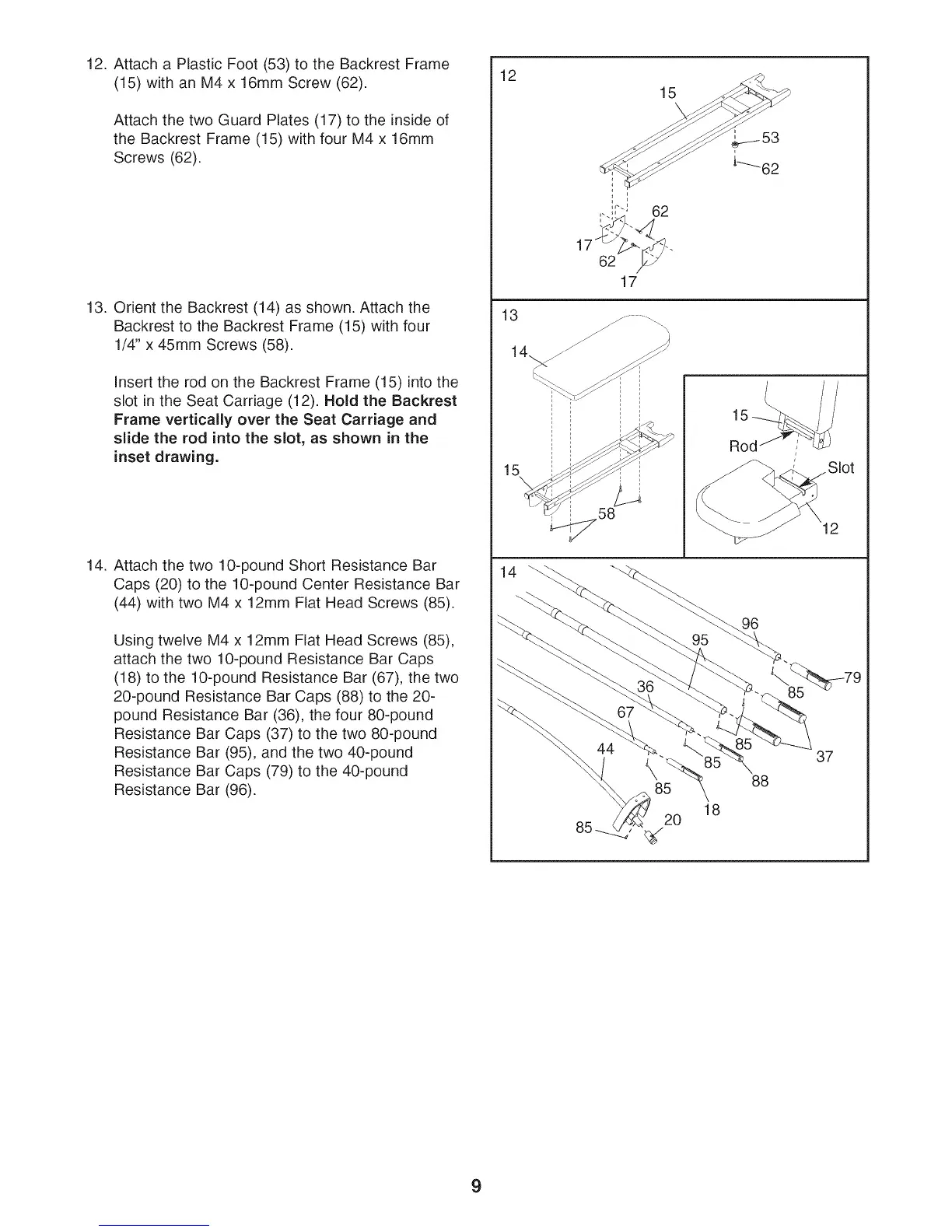

12. Attach a Plastic Foot (53) to the Backrest Frame
(15) with an M4 x 16mm Screw (62).
Attach the two Guard Plates (17) to the inside of
the Backrest Frame (15) with four M4 x 16mm
Screws (62),
13. Orient the Backrest (14) as shown. Attach the
Backrest to the Backrest Frame (15) with four
1/4" x 45mm Screws (58).
Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
14. Attach the two 10-pound Short Resistance Bar
Caps (20) to the 10-pound Center Resistance Bar
(44) with two M4 x 12mm Flat Head Screws (85).
Using twelve M4 x 12mm Flat Head Screws (85),
attach the two 10-pound Resistance Bar Caps
(18) to the 10-pound Resistance Bar (67), the two
20-pound Resistance Bar Caps (88) to the 20-
pound Resistance Bar (36), the four 80-pound
Resistance Bar Caps (37) to the two 80-pound
Resistance Bar (95), and the two 40-pound
Resistance Bar Caps (79) to the 40-pound
Resistance Bar (96).
