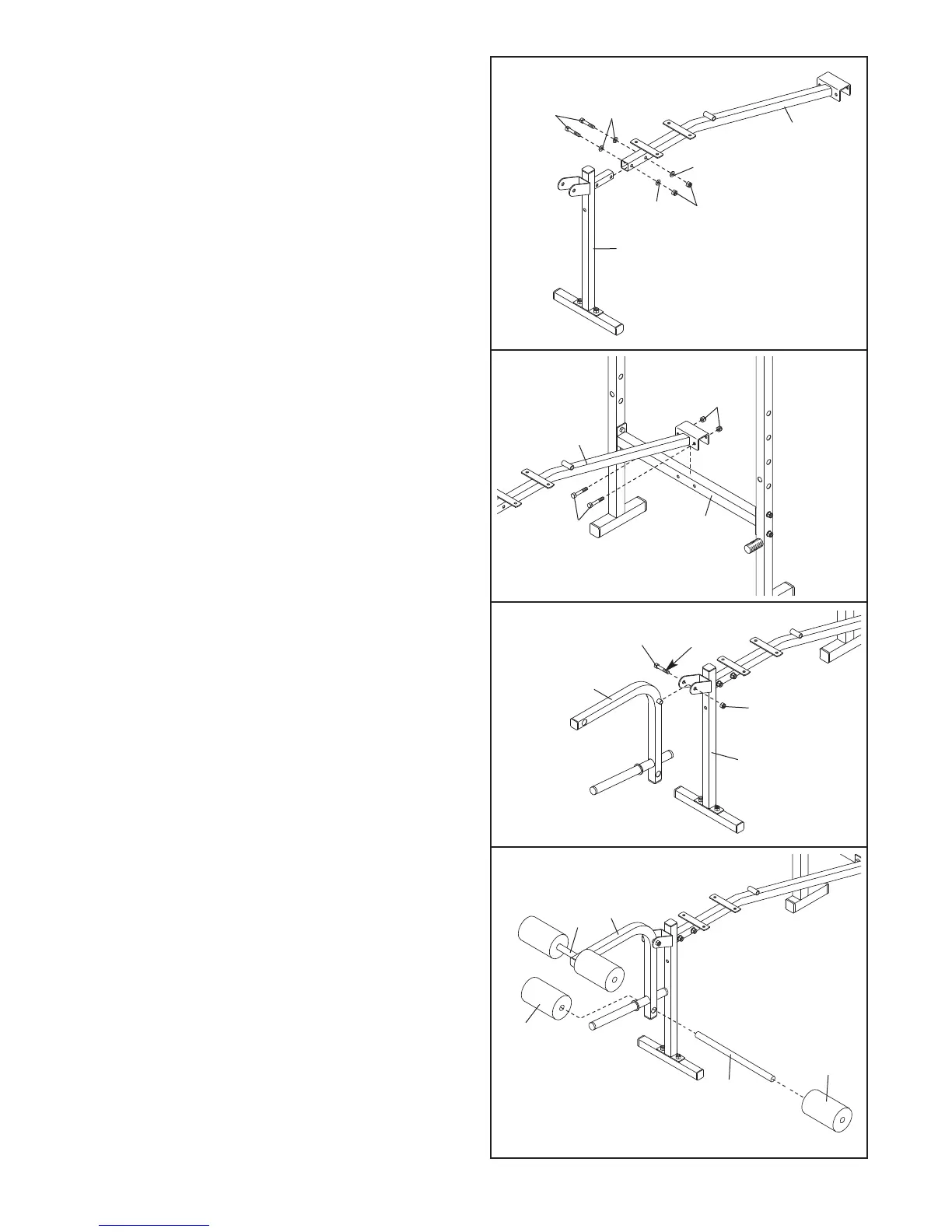

3. Attach the Front Leg (8) to the Frame (2) with two
M8 x 43mm Bolts (39), four M8 Washers (16),
a
nd two M8 Nylon Locknuts (17). D
o not tighten
the Locknuts yet.
4. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (18) and two M8 Nylon Locknuts
(17).
Tighten the M8 Nylon Locknuts (17) used in
steps 1–4.
5. Lubricate the M10 x 63mm Bolt (32) with grease.
Attach the Leg Lever (4) to the Front Leg (8) with
the Bolt and an M10 Nylon Locknut (33). Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easily.
3
17
2
39
16
16
8
1
6
4
2
3
17
18
5
33
4
Lubricate
32
8
6
6.
Insert a Pad Tube (10) into a hole in the Leg
Lever (4). Slide two Foam Pads (23) onto the Pad
Tube.
Repeat this step with the other Pad T
ube (10).
10
10
4
23
23
6
