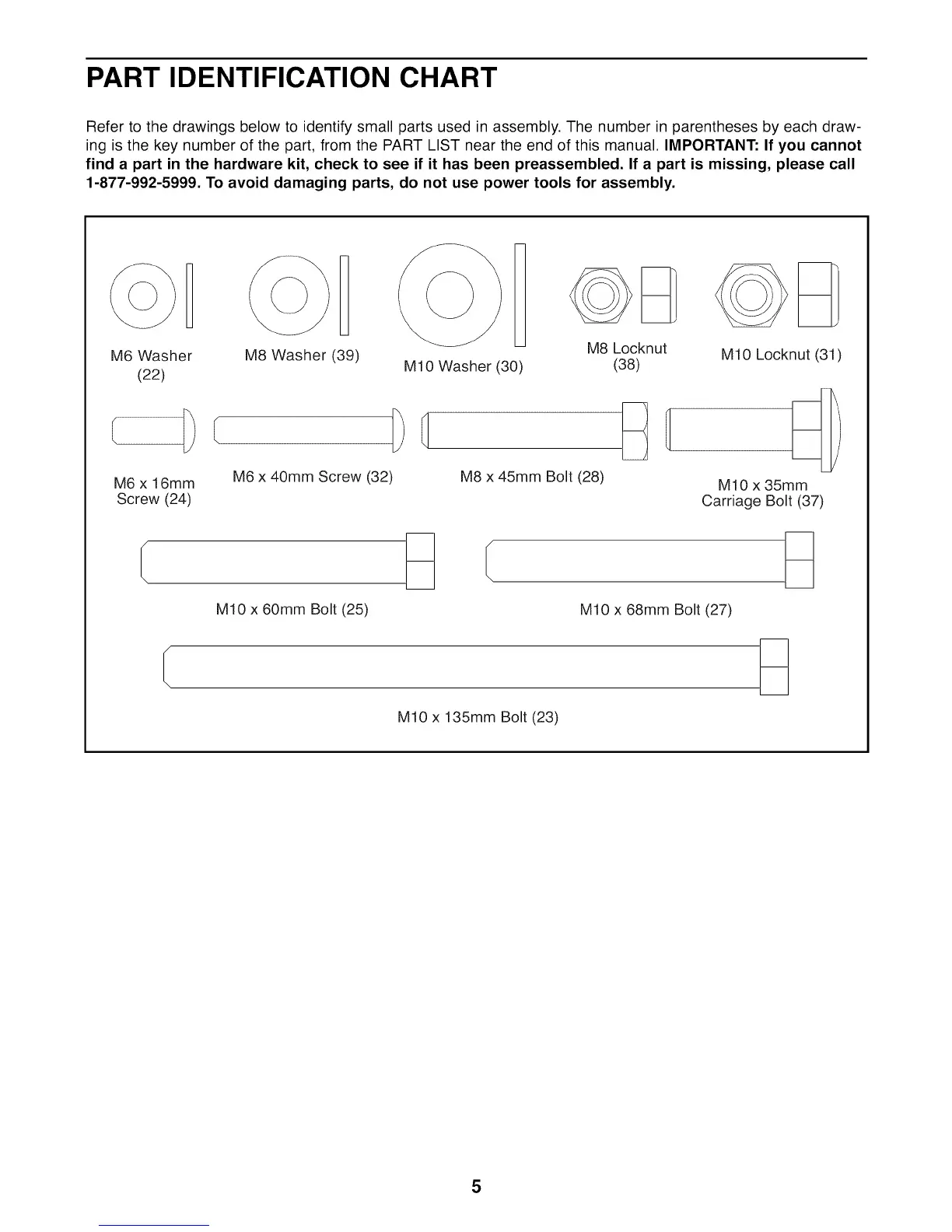

PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT" If you cannot
find a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call
1-877-992-5999. To avoid damaging parts, do not use power tools for assembly.
D
M6 Washer
(22)
M6 x 16mm
Screw (24)
M8 Washer (39)
M6 x 40mm Screw (32)
M10 Washer (30)
M8 Locknut
(38)
M8 x 45mm Bolt (28)
M10 Locknut (31)
MIO x 35mm
Carriage Bolt (37)
M10 x 60mm Bolt (25) M10 x 68mm Bolt (27)
M10 x 135mm Bolt (23)
5
