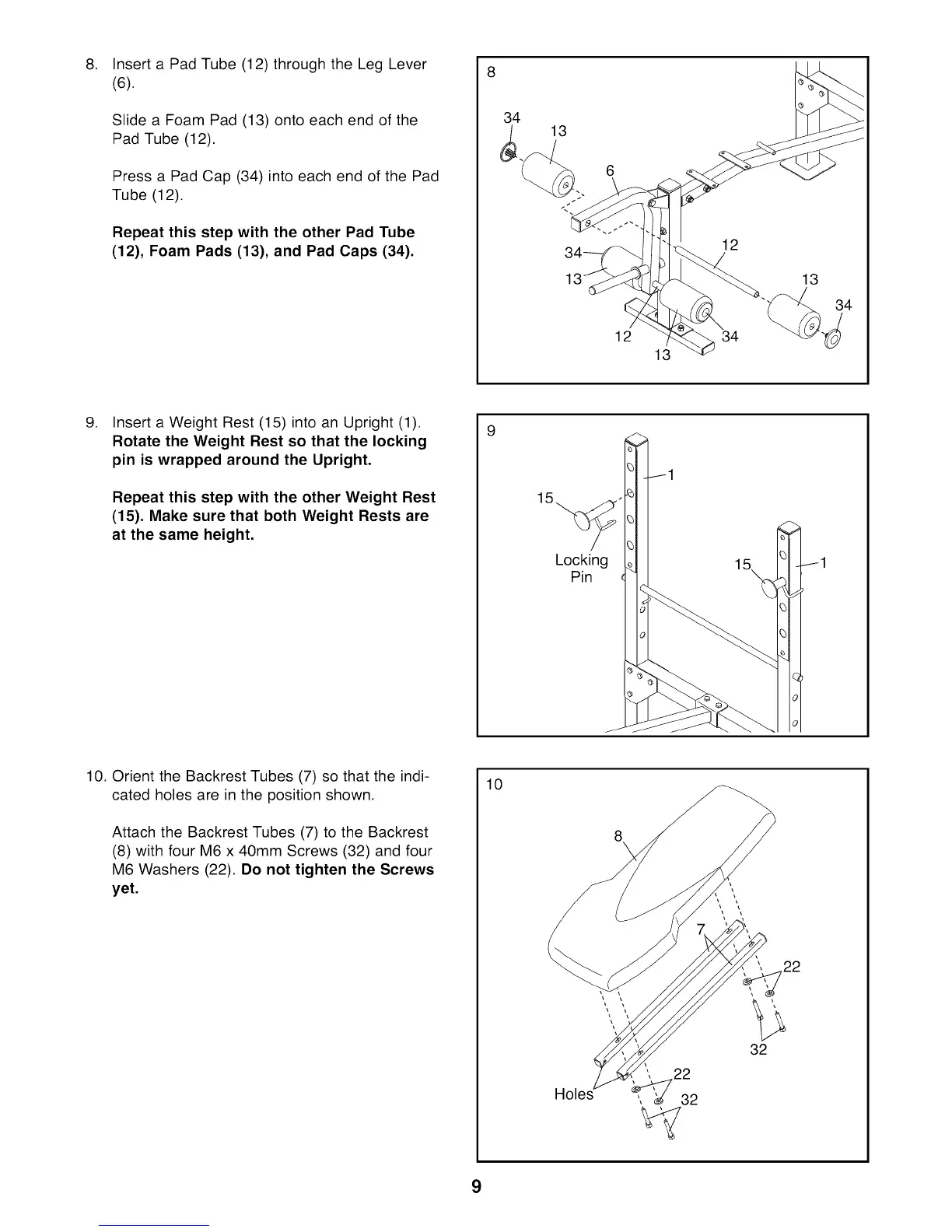

8. 8
Insert a Pad Tube (12) through the Leg Lever
(6).
Slide a Foam Pad (13) onto each end of the
Pad Tube (12).
Press a Pad Cap (34) into each end of the Pad
Tube (12).
Repeat this step with the other Pad Tube
(12), Foam Pads (13), and Pad Caps (34).
34
6
12
13
12
34
13
.
Insert a Weight Rest (15) into an Upright (1).
Rotate the Weight Rest so that the locking
pin is wrapped around the Upright.
Repeat this step with the other Weight Rest
(15). Make sure that both Weight Rests are
at the same height.
15
Locking
Pin
15
10. Orient the Backrest Tubes (7) so that the indi-
cated holes are in the position shown.
Attach the Backrest Tubes (7) to the Backrest
(8) with four M6 x 40mm Screws (32) and four
M6 Washers (22). Do not tighten the Screws
yet.
10
\
\
22
32
9
