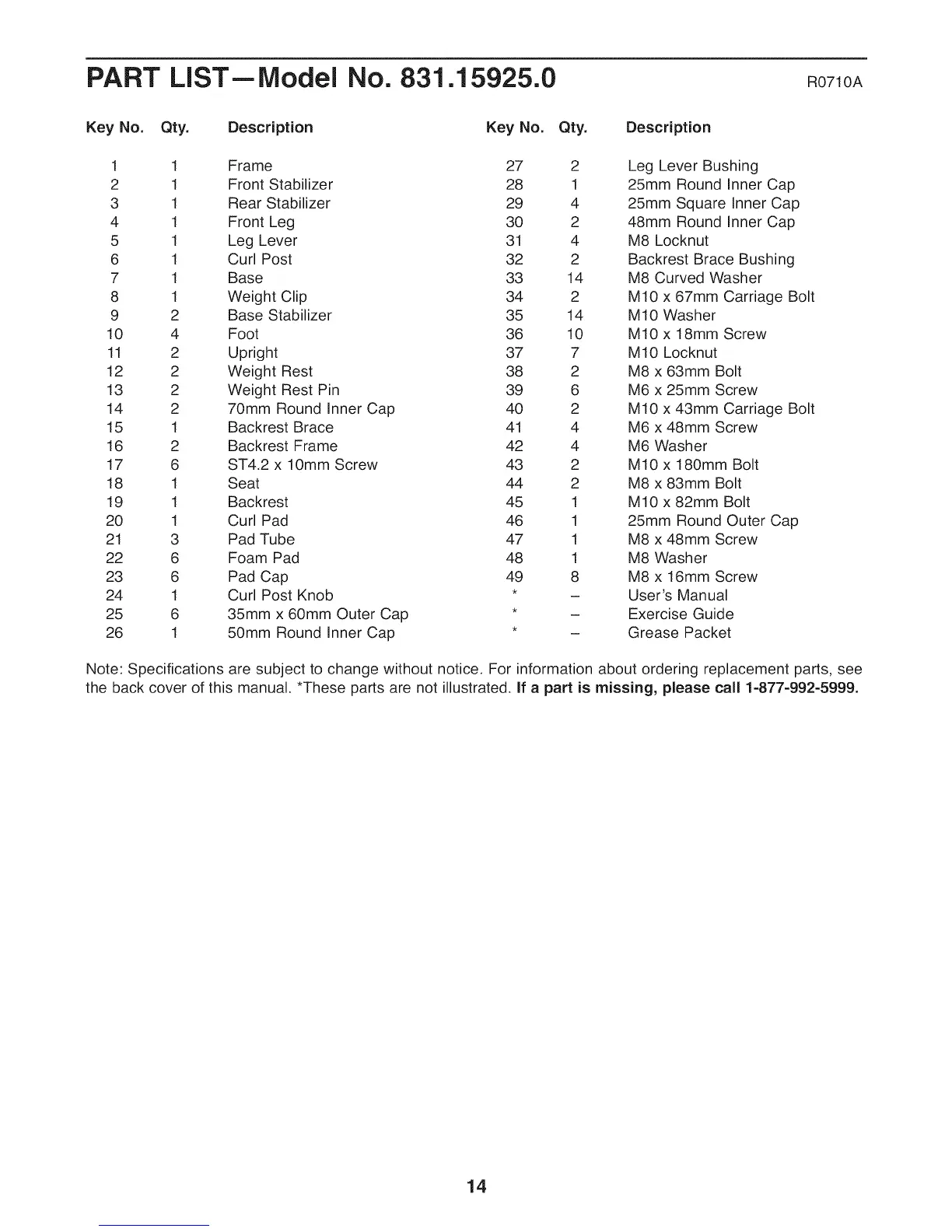

PART LIST--IVlodel No. 831.15925.0 R071oA
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 27 2 Leg Lever Bushing
2 1 Front Stabilizer 28 1 25mm Round Inner Cap
3 1 Rear Stabilizer 29 4 25mm Square Inner Cap
4 1 Front Leg 30 2 48mm Round Inner Cap
5 1 Leg Lever 31 4 M8 Locknut
6 1 Curl Post 32 2 Backrest Brace Bushing
7 1 Base 33 14 M8 Curved Washer
8 1 Weight Clip 34 2 M10 x 67mm Carriage Bolt
9 2 Base Stabilizer 35 14 M10 Washer
10 4 Foot 36 10 M10 x 18mm Screw
11 2 Upright 37 7 M10 Locknut
12 2 Weight Rest 38 2 M8 x 63mm Bolt
13 2 Weight Rest Pin 39 6 M6 x 25mm Screw
14 2 70mm Round Inner Cap 40 2 M10 x 43mm Carriage Bolt
15 1 Backrest Brace 41 4 M6 x 48mm Screw
16 2 Backrest Frame 42 4 M6 Washer
17 6 ST4.2 x 10mm Screw 43 2 M10 x 180mm Bolt
18 1 Seat 44 2 M8 x 83mm Bolt
19 1 Backrest 45 1 M10 x 82mm Bolt
20 1 Curl Pad 46 1 25mm Round Outer Cap
21 3 Pad Tube 47 1 M8 x 48mm Screw
22 6 Foam Pad 48 1 M8 Washer
23 6 Pad Cap 49 8 M8 x 16mm Screw
24 1 Curl Post Knob * - User's Manual
25 6 35mm x 60mm Outer Cap * - Exercise Guide
26 1 50mm Round Inner Cap * - Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated, if a part is missing, please call 1-877-992-5999.
