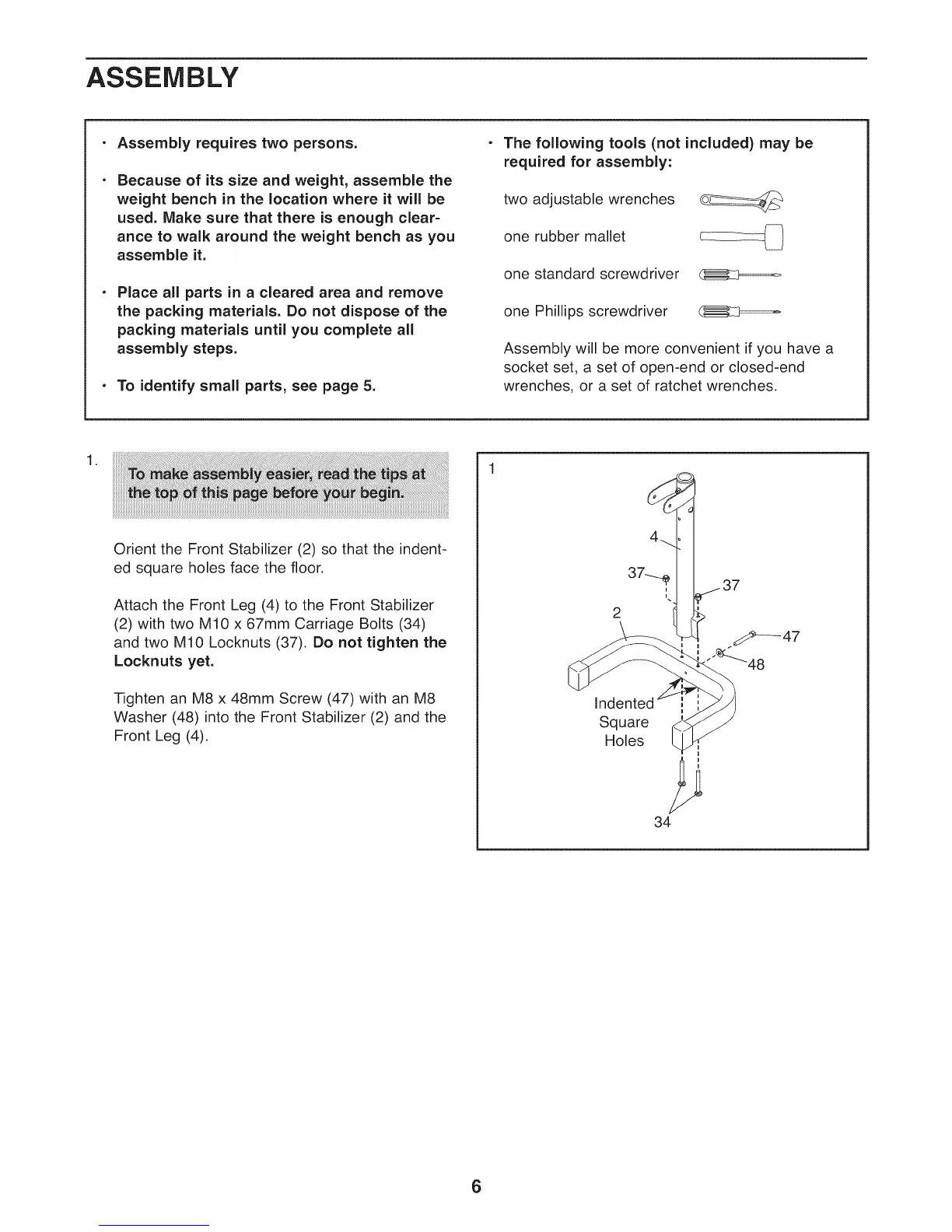

ASSEMBLY
Assembly requires two persons.
Because of its size and weight, assemble the
weight bench in the location where it will be
used. Make sure that there is enough clear-
ance to walk around the weight bench as you
assemble it.
Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
To identify small parts, see page 5.
The following tools (not included) may be
required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver _===_
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
,
Orient the Front Stabilizer (2) so that the indent-
ed square holes face the floor.
Attach the Front Leg (4) to the Front Stabilizer
(2) with two M10 x 67mm Carriage Bolts (34)
and two M10 Locknuts (37). Do not tighten the
Locknuts yet.
Tighten an M8 x 48mm Screw (47) with an M8
Washer (48) into the Front Stabilizer (2) and the
Front Leg (4).
4
37
.37
2
Square
Holes
,,
Y
34
6
