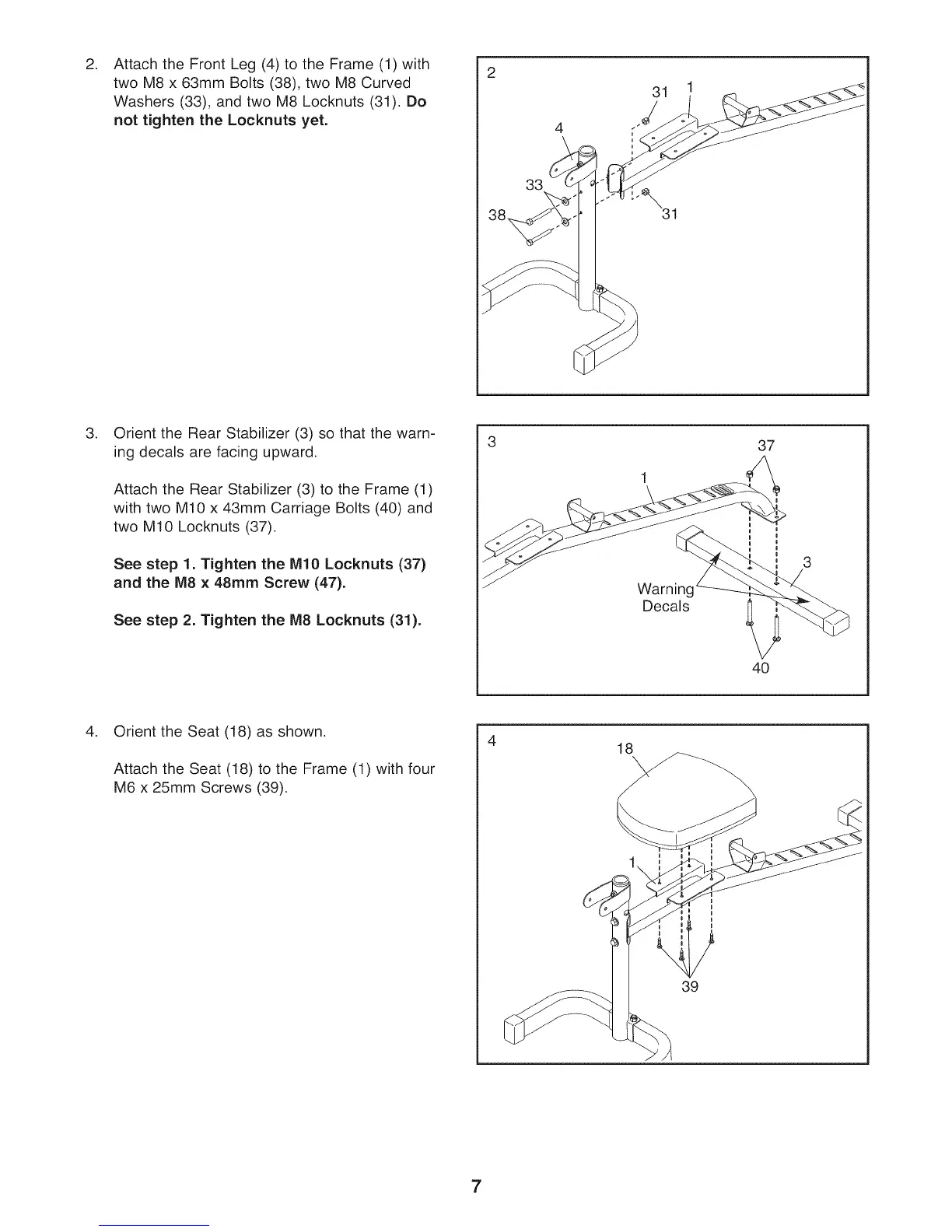

Attach the Front Leg (4) to the Frame (1) with
two M8 x 63mm Bolts (38), two M8 Curved
Washers (33), and two M8 Locknuts (31). Do
not tighten the Locknuts yet.
4
33
31
.%
31
.
Orient the Rear Stabilizer (3) so that the warn-
ing decals are facing upward.
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 43mm Carriage Bolts (40) and
two M10 Locknuts (37).
See step 1. Tighten the MIO Locknuts (37)
and the M8 × 48mm Screw (47).
See step 2. Tighten the M8 Locknuts (31).
Warning
Decals
37
40
3
.
Orient the Seat (18) as shown.
Attach the Seat (18) to the Frame (1) with four
M6 x 25mm Screws (39).
18
39
7
