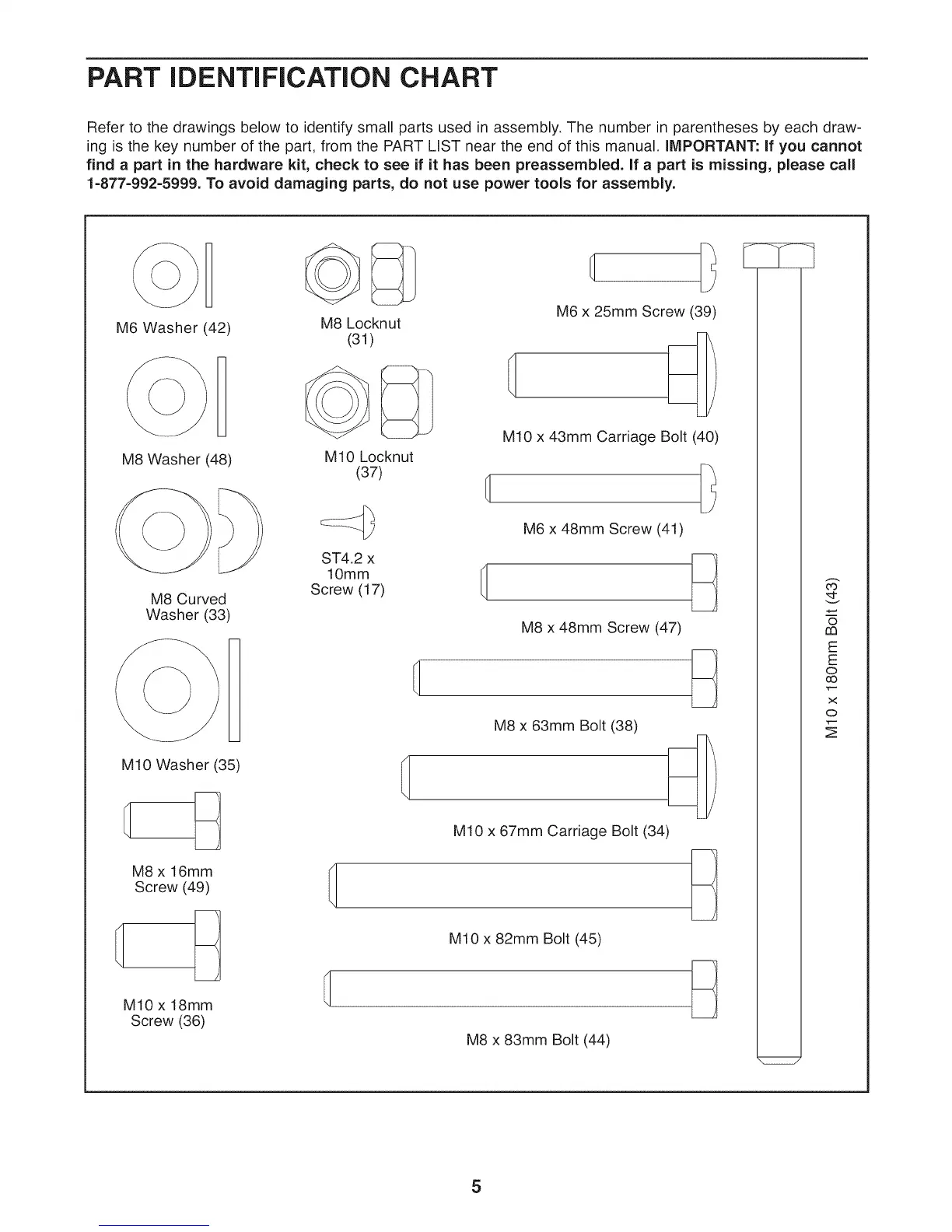

PART iDENTiFiCATiON CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT: If you cannot
find a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call
1-877=992-5999. To avoid damaging parts, do not use power tools for assembly.
D
M6 Washer (42)
]
M8 Washer (48)
M8 Curved
Washer (33)
MIO Washer (35)
M8 x 16mm
Screw (49)
M10 x 18mm
Screw (36)
M8 Locknut
(31)
M6 x 25mm Screw (39)
M10 Locknut
(37)
M10 x 43mm Carriage Bolt (40)
M6 x 48mm Screw (41)
ST4.2 x
10mm
Screw (17)
M8 x 48mm Screw (47)
M8 x 63mm Bolt (38)
M10 x 67mm Carriage Bolt (34)
M10 x 82mm Bolt (45)
M8 x 83mm Bolt (44)
03
.,,-,
©
r_
E
E
(:3
OO
*r-
X
o
5
