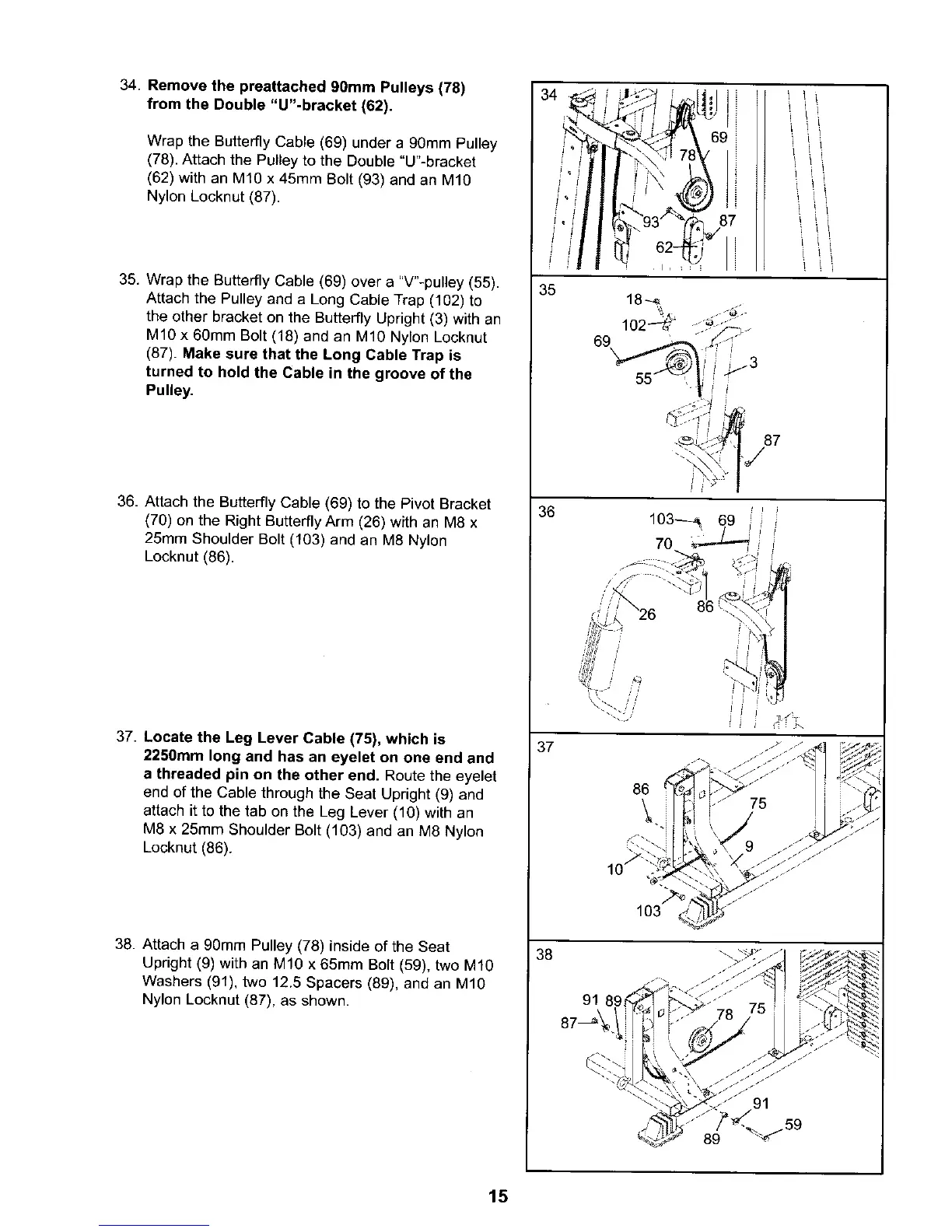

34. Remove the preattached 90mm Pulleys (78)
from the Double "U"-bracket (62).
Wrap the Butterfly Cable (69) under a 90mm Pulley
(78). Attach the Pulley to the Double "U"-bracket
(62) with an M10 x 45mm Bolt (93) and an M10
Nylon Locknut (87).
35. Wrap the Butterfly Cable (69) over a "V"-pulley (55).
Attach the Pulley and a Long Cable Trap (102) to
the ether bracket on the Butterfly Upright (3) with an
M19 x 60mm Bolt (18) and an M10 Nylon Locknut
(87). Make sure that the Long Cable Trap is
turned to hold the Cable in the groove of the
Pulley•
36. Attach the Butterfly Cable (69) to the Pivot Bracket
(70) on the Right Butterfly Arm (26) with an M8 x
25mm Shoulder Bolt (103) and an M8 Nylon
Locknut (86).
37. Locate the Leg Lever Cable (75), which is
2250mm long and has an eyelet on one end and
a threaded pin on the other end. Route the eyelet
end of the Cable through the Seat Upright (9) and
attach itto the tab on the Leg Lever (10) with an
M8 x 25ram Shoulder Bolt(103) and an M8 Nylon
Locknut (86).
38. Attach a 90ram Pulley (78) inside of the Seat
Upright (9) with an M10 x 65ram Bolt (59), two M10
Washers (91), two 12.5 Spacers (89), and an M10
Nylon Locknut (87), as shown.
35
36
37
38
, 93 "_i'm 87
• 62_,_¢" i
18--_
_ 3
I I i r
-@-<¢
86
\.
103
91
.59
89
15
To Next Page
