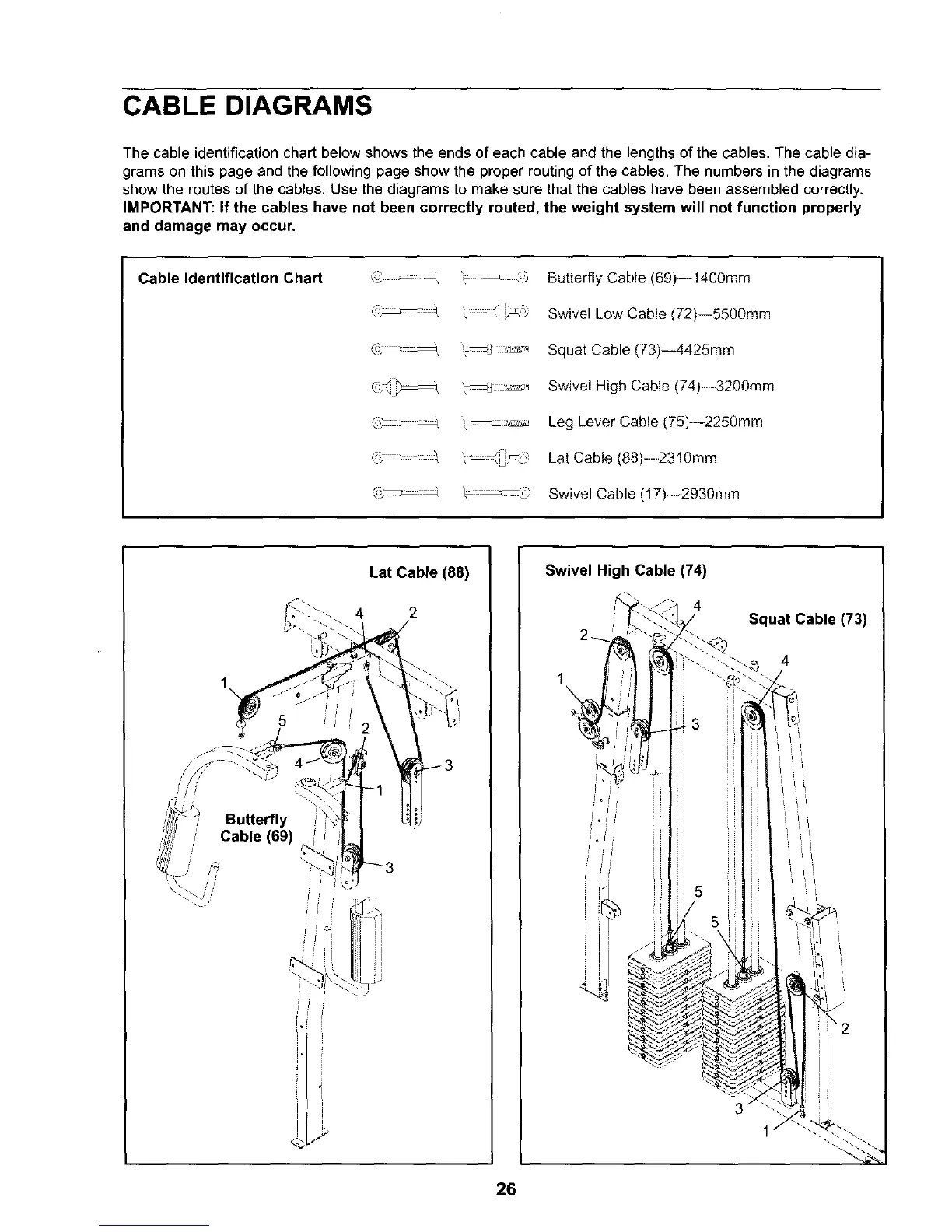

CABLE DIAGRAMS
The cable identification chart below shows the ends of each cable and the lengths of the cables. The cable dia-
grams on this page and the following page show the proper routing of the cables. The numbers in the diagrams
show the routes of the cables. Use the diagrams to make sure that the cables have been assembled correctly.
IMPORTANT: If the cables have not been correctly routed, the weight system will not function properly
and damage may occur.
Cable Identification Chart
Butterfly Cable (69)--1400mm
Swivel Low Cable (72)--5500mm
Squat Cable (73)--4425mm
Swivel High Cable (74)--3200mm
Leg Lever Cable (75)--o2250mm
Lat Cable (88)-----2310mm
Swivel Cable (17)--2930mm
1\
5
Butterfly
Cable (69)
i
i
J
i' i
L
7
Lat Cable (88)
4 2
Swivel High Cable (74)
4
2_.
Squat Cable (73)
i!
26
To Next Page
