Weider PRO 4850 - Part Identification Chart

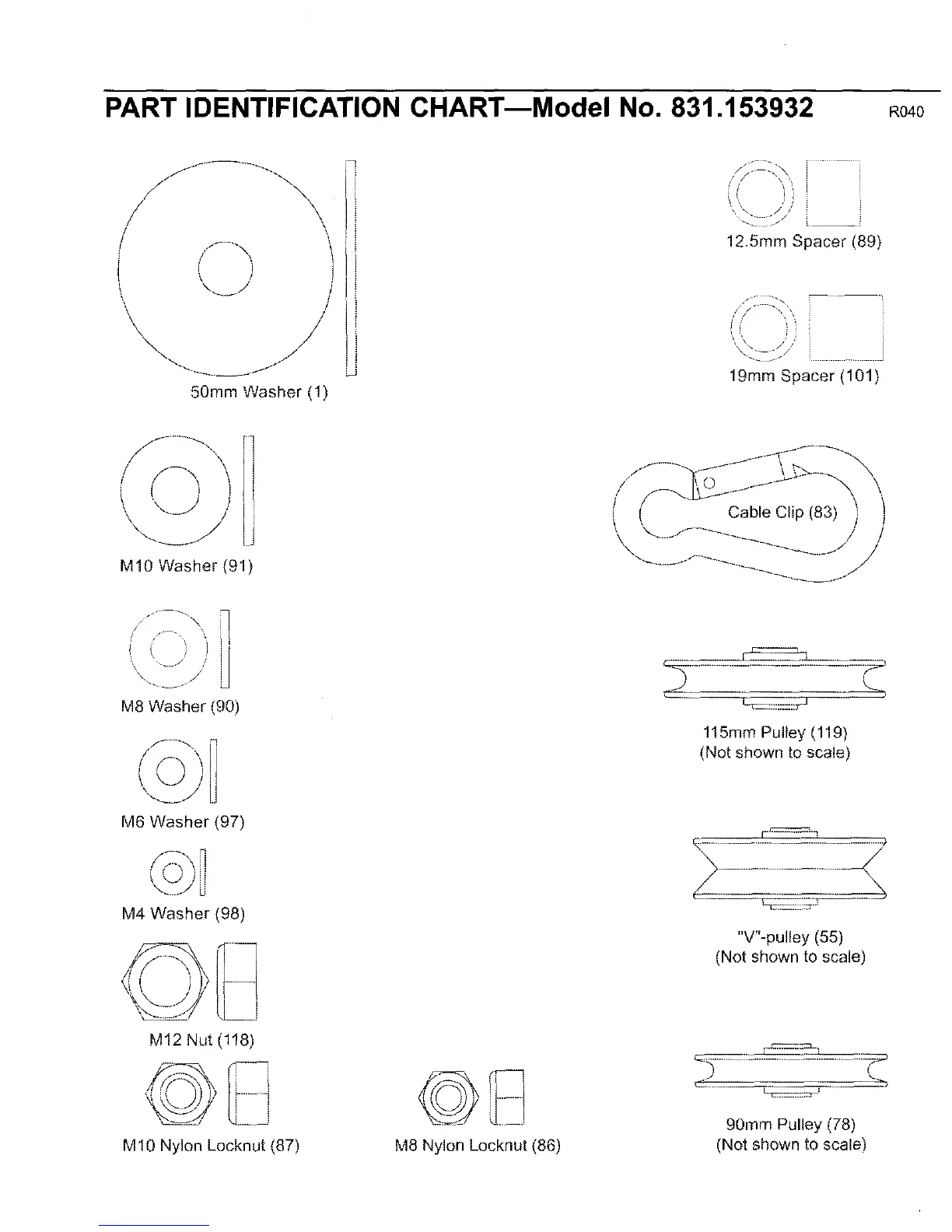

PART IDENTIFICATION CHART--Model No. 831.153932 R040
50mm Washer (1)
H- -- f •
,? .?
12,5mm Spacer (89)
Z-- --.\
, i , r
19mm Spacer (101)
M10 Washer (91)
J
j /
i
M8 Washer (90)
M6 Washer (97)
M4 Washer (98)
M12 Nut (118)
A" ' _.........i
i i
M10 Nylon Locknut (87) M8 Nylon Locknut (86)
115mm Pulley (119)
(Not shown to scale)
"V"-pulley (55)
(Not shown to scale)
90ram Pulley (78)
(Not shown to scale)
