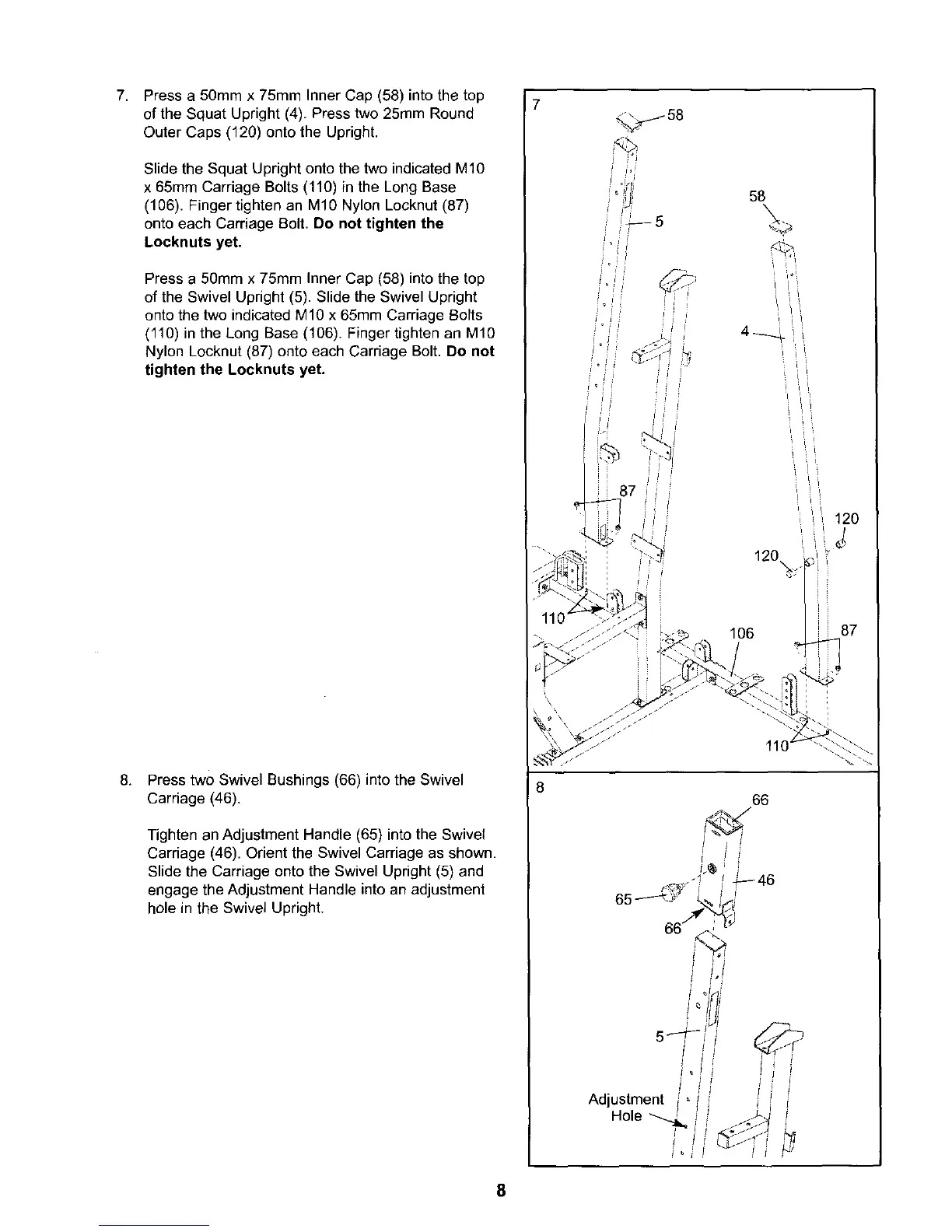

Press a 50mm x 75mm Inner Cap (58) into the top
of the Squat Upright (4). Press two 25ram Round
Outer Caps (120) onto the Upright.
Slide the Squat Upright onto the two indicated M 10
x 65mm Carriage Bolts (110) in the Long Base
(106). Finger tighten an M10 Nylon Locknut (87)
onto each Carriage Bolt. Do not tighten the
Locknuts yet.
Press a 50mm x 75mm Inner Cap (58) into the top
of the Swivel Upright (5). Slide the Swivel Upright
onto the two indicated M10 x 65mm Carriage Bolts
(110) in the Long Base (106). Finger tighten an M10
Nylon Locknut (87) onto each Carriage Bolt. De net
tighten the Lecknuts yet.
Press two Swivel Bushings (66) into the Swivel
Carriage (46).
Tighten an Adjustment Handle (65) into the Swivel
Carriage (46). Orient the Swivel Carriage as shown.
Slide the Carriage onto the Swivel Upright (5) and
engage the Adjustment Handle into an adjustment
hole in the Swivel Upright.
7
i,: f
I
106
8
65 ----_Y
66-/1
66
I/
i f
. 46
,/
i _ ftli
87
