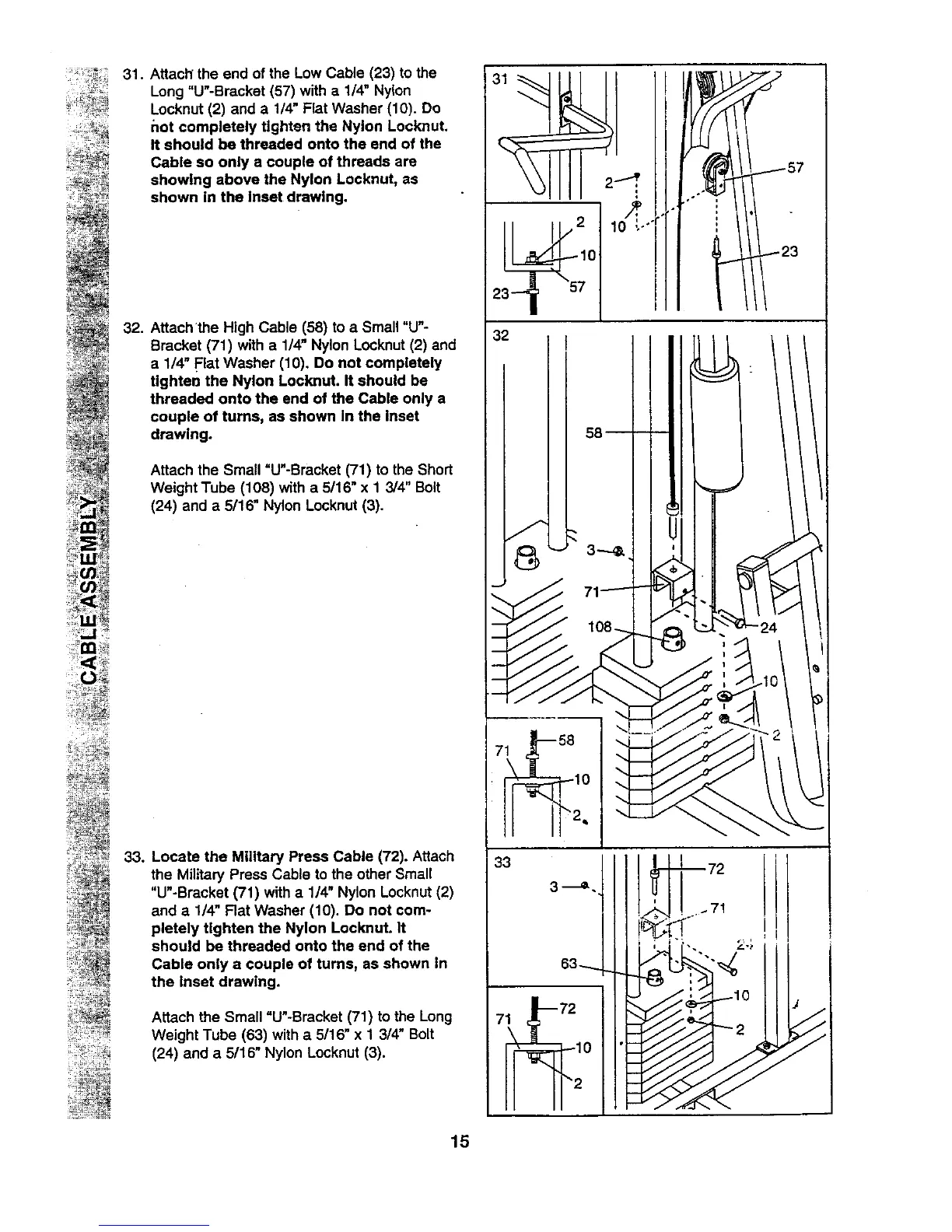

31. Attach the end of the Low Cable (23) to the
Long "U"-Bracket (57) with a 1/4" Nylon
Locknut (2) and a 1/4" Flat Washer (10). Do
not completely tighten the Nylon Locknut.
It should be threaded onto the end of the
Cable so only a couple of threads are
showing above the Nylon Locknut, as
shown In the Inset drawing.
32.
Attach the High Cable (58) to a Small "U"-
Bracket (71) with a 114" Nylon Locknut (2) and
a 1/4" Flat Washer (10). Do not completely
tighten the Nylon Locknut. It should be
threaded onto the end of the Cable only a
couple of turns, as shown In the Inset
drawing.
Attach the Small =U"-Bracket (71) to the Short
Weight Tube (108) with a 5/16" x 1 3/4" Bolt
(24) and a 5/16" Nylon Locknut (3).
3.
Locate the Military Press Cable (72). Attach
the Military Press Cable to the other Small
"U"-Bracket (71) with a 1/4" Nylon Locknut (2)
and a 1/4" Rat Washer (10). Do not com-
pletely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable only a couple of turns, as shown In
the Inset drawing.
Attach the Small "U"-Bracket (71) to the Long
Weight Tube (63) with a 5/16" x 1 3/4" Bolt
(24) and a 5/16" Nylon Locknut (3).
