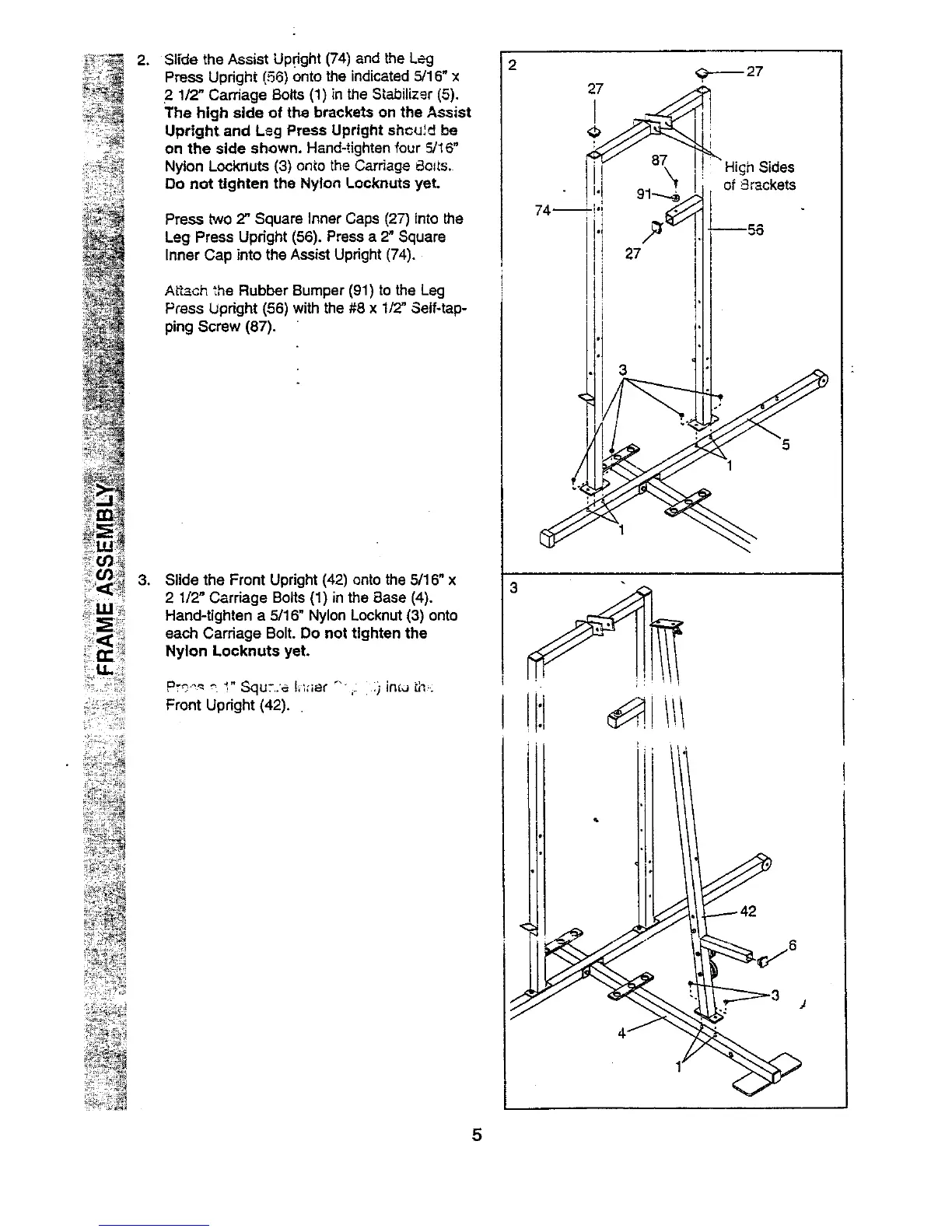

Slide the Assist Upright (74) and the Leg
Press Upright (56) onto the indicated 5/16" x
1/2" Carriage Bolts (1) in the Stabilizer (5).
The high side of the brackets on the Assist
Upright and Leg Press Upright should be
on the side shown. Hand-tighten four 5/16"
Nylon Locknuts (3) onio the Carriage 8oils.
Do not tighten the Nylon Loeknuts yet.
Press two 2" Square Inner Caps (27) into the
Leg Press Upright (56). Press a 2" Square
Inner Cap into the Assist Upright (74).
Afl_ch _he Rubber Bumper (91) to the Leg
Press lJpdght (56) with the #8 x 1/2" Self-tap-
ping Screw (87).
3. Slide the Front Upright (42) onto the 5/16" x
2 1/2" Cardage Bolts (1) in the Base (4).
Hand-tighten a 5/16" Nylon Locknut (3) onto
each Carriage Bolt. Do not tighten the
Nylon Locknuts yet.
Front Upright (42).
2
74
.,_--_ 27
n Sides
of _rackets
5
To Next Page
