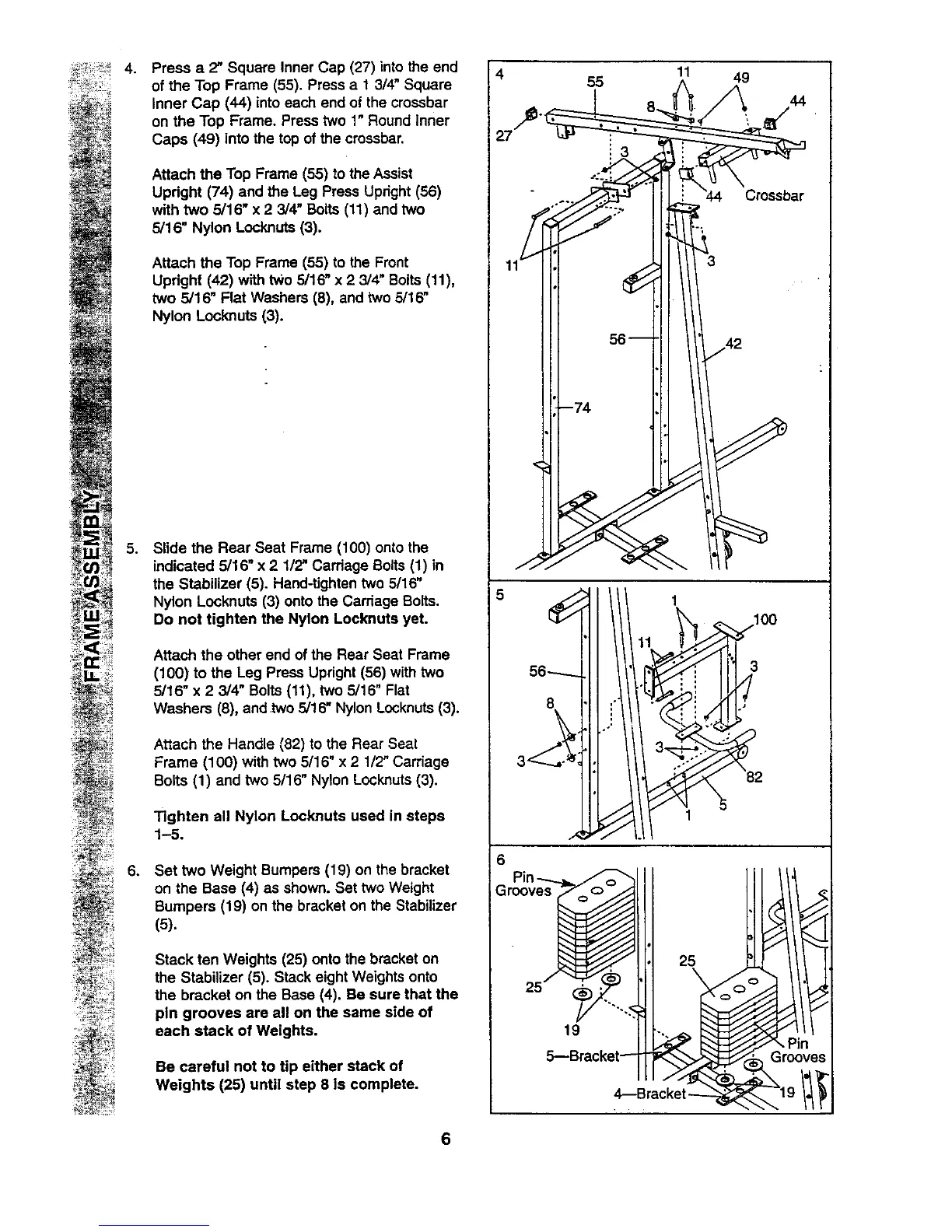

Weider PRO 9645 - Page 6

.
.
.
Press a 2" Square Inner Cap (27) into the end
of the Top Frame (55). Press a 13/4" Square
Inner Cap (44) into each end of the crossbar
on the Top Frame. Press two 1" Round Inner
Caps (49) into the top of the crossbar.
Attach the Top Frame (55) to the Assist
Updght (74) and the Leg Press Upright (56)
with two 5/16" x 2 3/4" Bolts (11) and two
5/16" Nylon Lock,nuts (3).
Attach the Top Frame (55) to the Front
Updght (42) with two 5/16" x 2 3/4" Bolts (11),
two 5/16" Flat Washers (8), and two 5/16"
Nylon Locknuts (3).
Slide the Rear Seat Frame (100) onto the
indicated 5/16" x 21/2" Carriage Bolts (1) in
the Stabilizer (5). Hand-tighten two 5/16"
Nylon Locknuts (3) onto the Carriage Bolts.
Do not tighten the Nylon Locknuts yet.
Attach the other end of the Rear Seat Frame
(100) to the Leg Press Upright (56) with two
5/16" x 23/4" Bolts (11), two 5/16" Flat
Washers (8), and .two 5/16" Nylon Locknuts (3).
Attach the Handle (82) to the Rear Seat
Frame (100) with two 5/16" x 21/2" Carriage
Botts (1) and two 5/16" Nylon Locknuts (3).
Tighten all Nylon Locknuts used in steps
1-5.
Set two Weight Bumpers (19) on the bracket
on the Base (4) as shown. Set two Weight
Bumpers (19) on the bracket on the Stabilizer
(5).
Stack ten Weights (25) onto the bracket on
the Stabilizer (5). Stack eight Weights onto
the bracket on the Base (4). Be sure that the
pin grooves are all on the same side of
each stack of Weights.
Be careful not to tip either stack of
Weights (25) until step 8 is complete.
