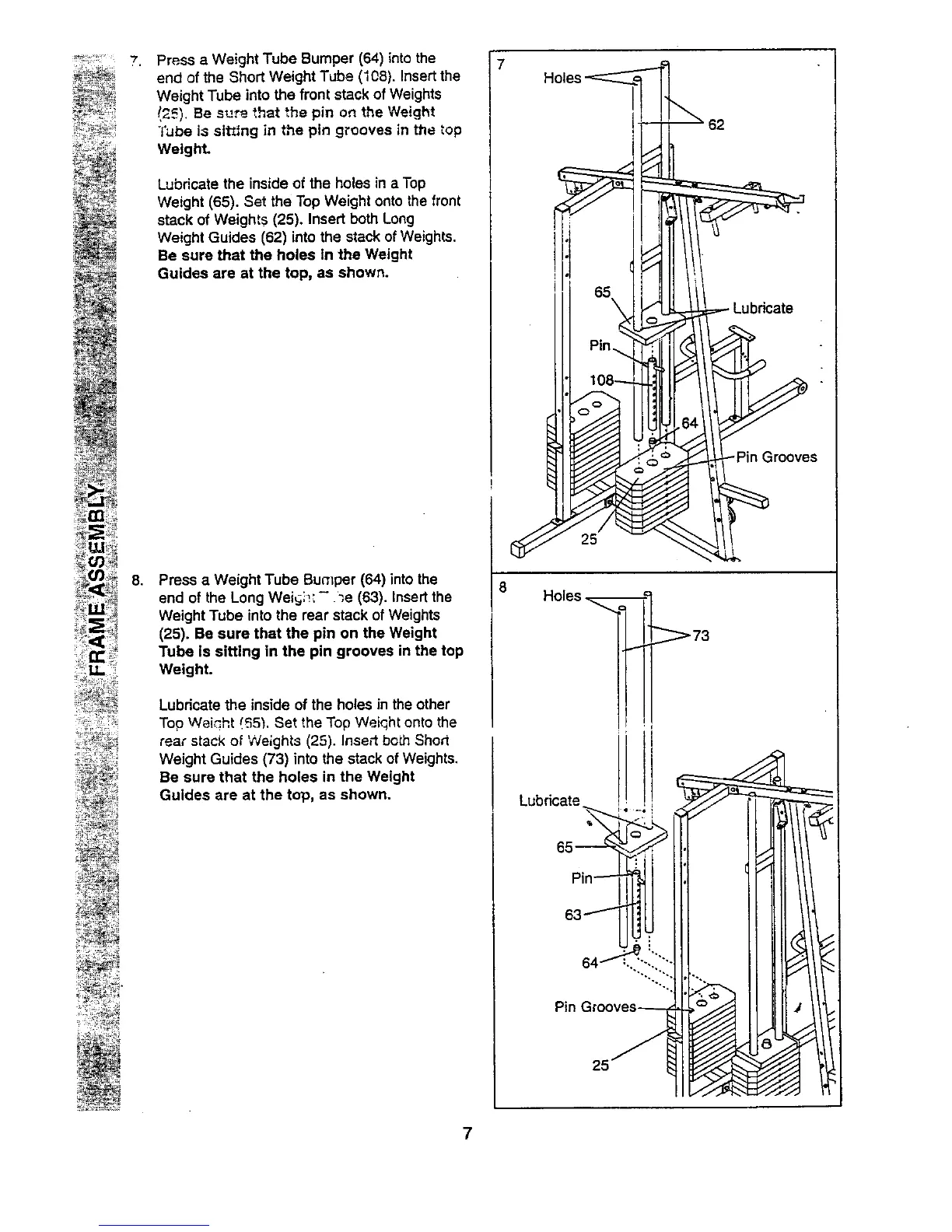

Press a Weight Tube Bumper (64) into the
end of the Short Weight Tube (I08). Insert the
Weight Tube into the front stack of Weights
!25). Be sur_ that the pin on the Weight
Tube i;sslt_lng in the pin grooves in the top
Weight.
Lubricate the inside of the holes in a Top
Weight (65). Set the Top Weight onto the front
stack of Weights (25), Insert both Long
Weight Guides (62) into the stack of Weights.
Be sure that the holes In the Weight
Guides are at the top, as shown.
,
Press a Weight Tube Bumper (64) into the
end of the Long Wei_si_:- _e (63). Insert the
Weight Tube into the rear stack of Weights
(25). Be sure that the pin on the Weight
Tube is sitting in the pin grooves in the top
Weight.
Lubricate the inside of the holes in the other
Top Weight I._5"_.Set the Top Weiqht onto the
rear stack of Weights (25). Insert bo_h Short
Weight Guides (73) into the stack of Weights.
Be sure that the holes in the Weight
Guides are at the top, as shown.
8
25
Holes
_73
!,
I
Lubricate
7
