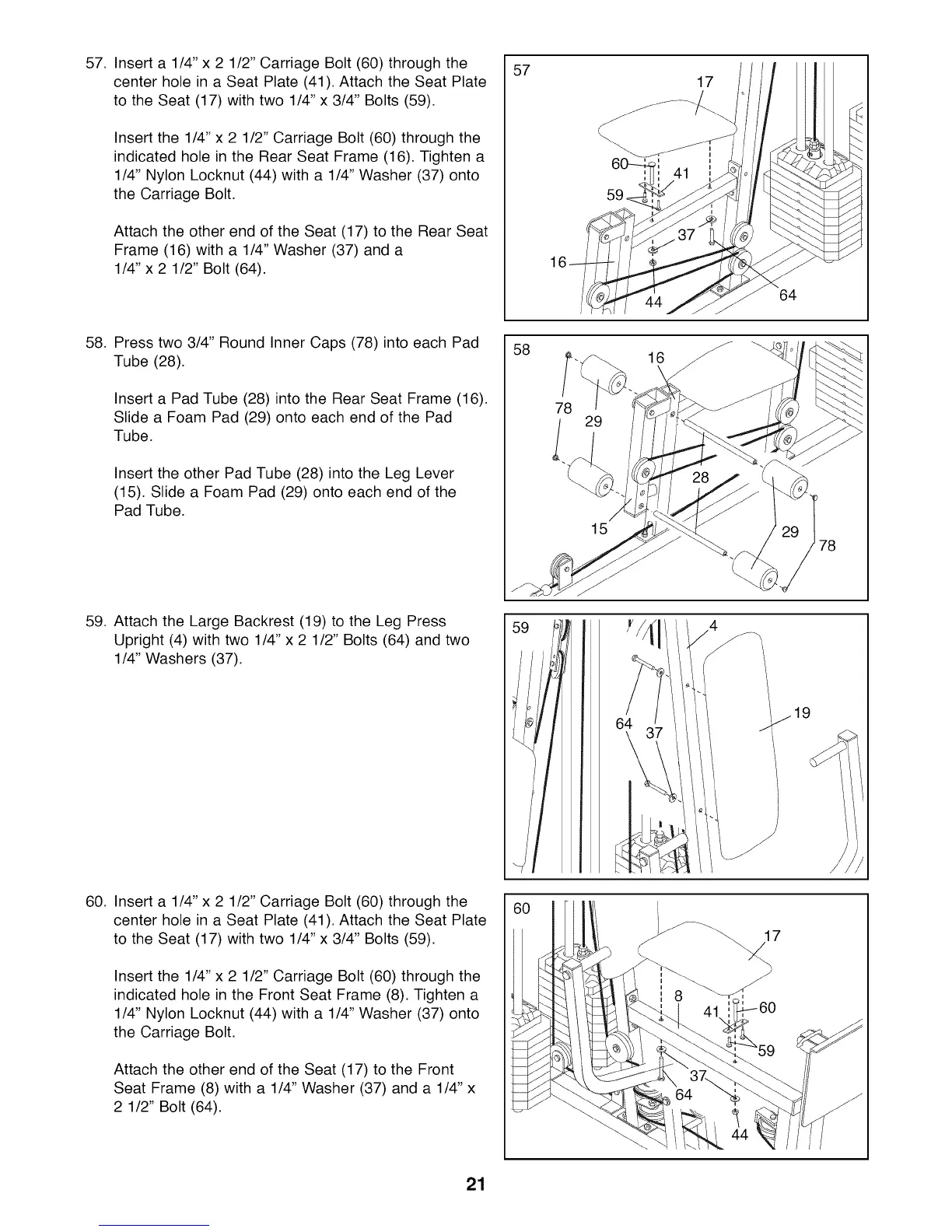

Weider PRO 9925 - Page 21

57. Insert a 1/4" x 2 1/2" Carriage Bolt (60) through the
center hole in a Seat Plate (41). Attach the Seat Plate
to the Seat (17) with two 1/4" x 3/4" Bolts (59).
Insert the 1/4" x 2 1/2" Carriage Bolt (60) through the
indicated hole in the Rear Seat Frame (16). Tighten a
1/4" Nylon Locknut (44) with a 1/4" Washer (37) onto
the Carriage Bolt.
Attach the other end of the Seat (17) to the Rear Seat
Frame (16) with a 1/4" Washer (37) and a
1/4" x 2 1/2" Bolt (64).
58. Press two 3/4" Round Inner Caps (78) into each Pad
Tube (28).
Insert a Pad Tube (28) into the Rear Seat Frame (16).
Slide a Foam Pad (29) onto each end of the Pad
Tube.
Insert the other Pad Tube (28) into the Leg Lever
(15). Slide a Foam Pad (29) onto each end of the
Pad Tube.
57
58
17
29
15
64
78
59. Attach the Large Backrest (19) to the Leg Press
Upright (4) with two 1/4" x 2 1/2" Bolts (64) and two
1/4" Washers (37).
60. Insert a 1/4" x 2 1/2" Carriage Bolt (60) through the
center hole in a Seat Plate (41). Attach the Seat Plate
to the Seat (17) with two 1/4" x 3/4" Bolts (59).
Insert the 1/4" x 2 1/2" Carriage Bolt (60) through the
indicated hole in the Front Seat Frame (8). Tighten a
1/4" Nylon Locknut (44) with a 1/4" Washer (37) onto
the Carriage Bolt.
Attach the other end of the Seat (17) to the Front
Seat Frame (8) with a 1/4" Washer (37) and a 1/4" x
2 1/2" Bolt (64).
59
64
/
21
