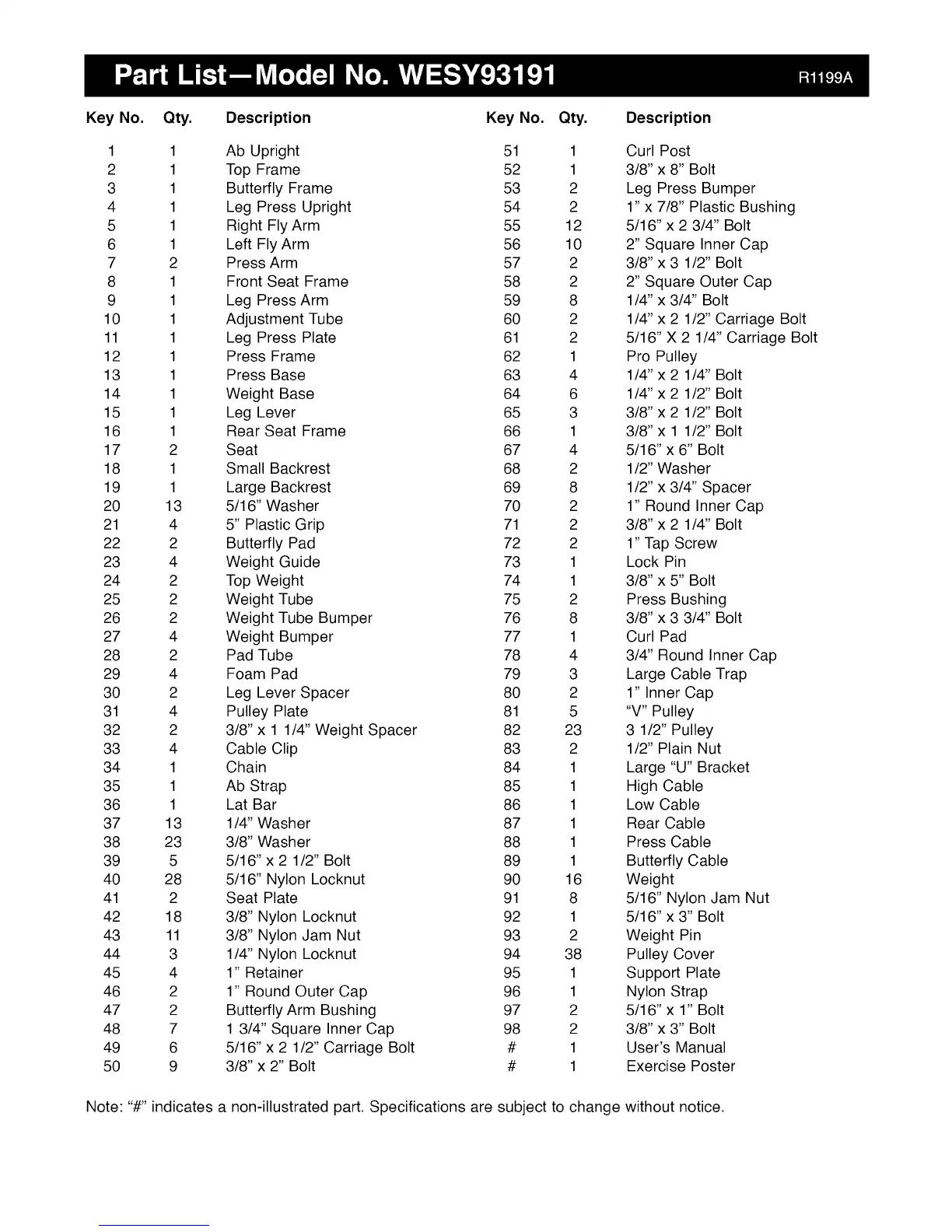

Weider PRO 9925 - Parts Identification; Component List and Key Numbers

Key No. Qty. Description Key No. Qty. Description
1 1 Ab Upright 51 1 Curl Post
2 1 Top Frame 52 1 3/8" x 8" Bolt
3 1 Butterfly Frame 53 2 Leg Press Bumper
4 1 Leg Press Upright 54 2 1" x 7/8" Plastic Bushing
5 1 Right Fly Arm 55 12 5/16" x 2 3/4" Bolt
6 1 Left Fly Arm 56 10 2" Square Inner Cap
7 2 Press Arm 57 2 3/8" x 3 1/2" Bolt
8 1 Front Seat Frame 58 2 2" Square Outer Cap
9 1 Leg Press Arm 59 8 1/4" x 3/4" Bolt
10 1 Adjustment Tube 60 2 1/4" x 2 1/2" Carriage Bolt
11 1 Leg Press Plate 61 2 5/16" X 2 1/4" Carriage Bolt
12 1 Press Frame 62 1 Pro Pulley
13 1 Press Base 63 4 1/4" x 2 1/4" Bolt
14 1 Weight Base 64 6 1/4" x 2 1/2" Bolt
15 1 Leg Lever 65 3 3/8" x 2 1/2" Bolt
16 1 Rear Seat Frame 66 1 3/8" x 1 1/2" Bolt
17 2 Seat 67 4 5/16" x 6" Bolt
18 1 Small Backrest 68 2 1/2" Washer
19 1 Large Backrest 69 8 1/2" x 3/4" Spacer
20 13 5/16" Washer 70 2 1" Round Inner Cap
21 4 5" Plastic Grip 71 2 3/8" x 2 1/4" Bolt
22 2 Butterfly Pad 72 2 1" Tap Screw
23 4 Weight Guide 73 1 Lock Pin
24 2 Top Weight 74 1 3/8" x 5" Bolt
25 2 Weight Tube 75 2 Press Bushing
26 2 Weight Tube Bumper 76 8 3/8" x 3 3/4" Bolt
27 4 Weight Bumper 77 1 Curl Pad
28 2 Pad Tube 78 4 3/4" Round Inner Cap
29 4 Foam Pad 79 3 Large Cable Trap
30 2 Leg Lever Spacer 80 2 1" Inner Cap
31 4 Pulley Plate 81 5 "V" Pulley
32 2 3/8" x 1 1/4" Weight Spacer 82 23 3 1/2" Pulley
33 4 Cable Clip 83 2 1/2" Plain Nut
34 1 Chain 84 1 Large "U" Bracket
35 1 Ab Strap 85 1 High Cable
36 1 Lat Bar 86 1 Low Cable
37 13 1/4" Washer 87 1 Rear Cable
38 23 3/8" Washer 88 1 Press Cable
39 5 5/16" x 2 1/2" Bolt 89 1 Butterfly Cable
40 28 5/16" Nylon Locknut 90 16 Weight
41 2 Seat Plate 91 8 5/16" Nylon Jam Nut
42 18 3/8" Nylon Locknut 92 1 5/16" x 3" Bolt
43 11 3/8" Nylon Jam Nut 93 2 Weight Pin
44 3 1/4" Nylon Locknut 94 38 Pulley Cover
45 4 1" Retainer 95 1 Support Plate
46 2 1" Round Outer Cap 96 1 Nylon Strap
47 2 Butterfly Arm Bushing 97 2 5/16" x 1" Bolt
48 7 1 3/4" Square Inner Cap 98 2 3/8" x 3" Bolt
49 6 5/16" x 2 1/2" Carriage Bolt # 1 User's Manual
50 9 3/8" x 2" Bolt # 1 Exercise Poster
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice.
