Weider PRO 9925 - Page 30

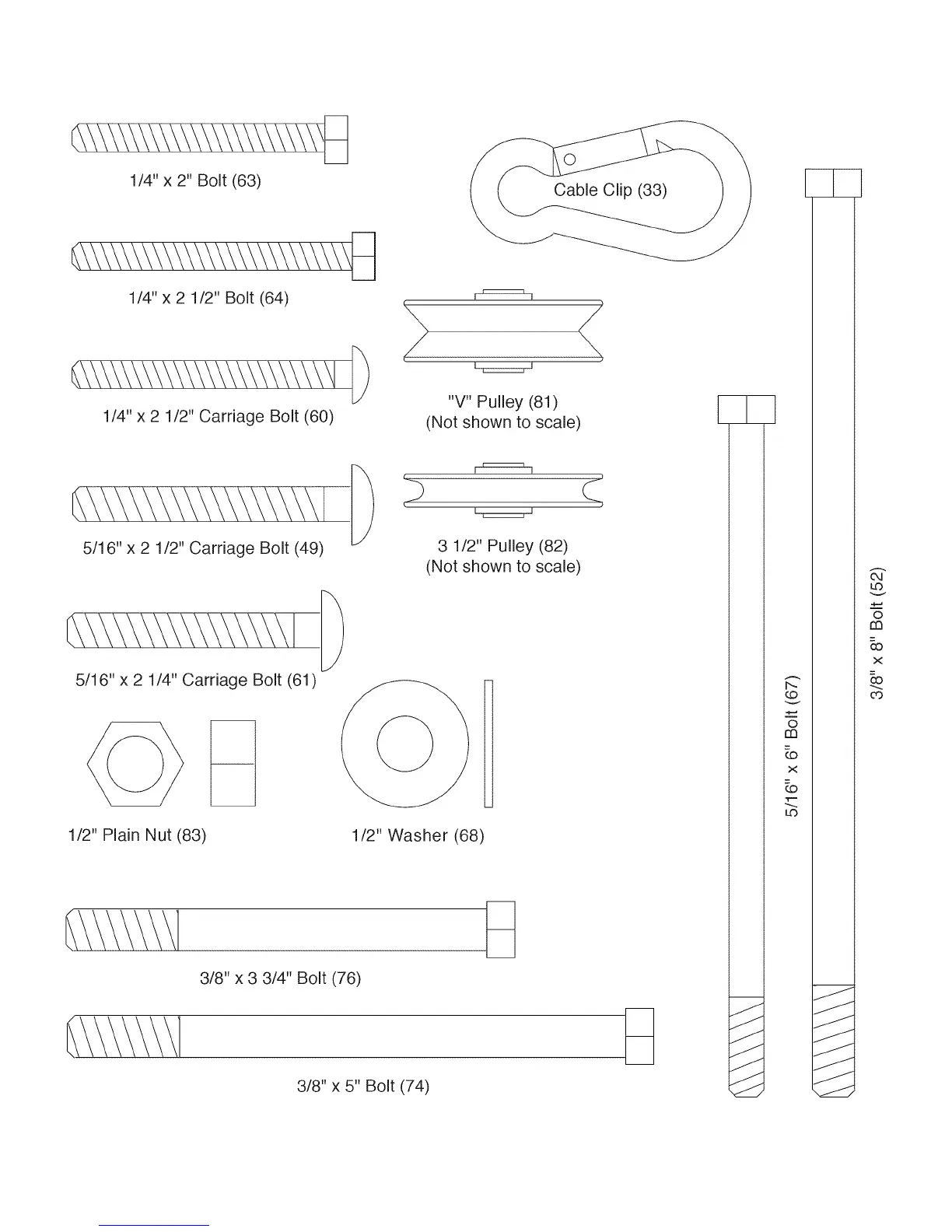

1/4"x 2" Bolt(63)
1/4"x 2 1/2"Bolt (64)
1/4"x 2 1/2"CarriageBolt(60)
"V"Pulley(81)
(Notshownto scale)
5/16"x 2 1/2"CarriageBolt(49)
_
3 1/2" Pulley (82)
(Not shown to scale)
5/16" x 2 1/4" Carriage Bolt (61)
1/2" Plain Nut (83) 1/2" Washer (68)
3/8" x 3 3/4" Bolt (76)
3/8" x 5" Bolt (74)
E
b--
(D
v
0
r_
¢0
x
(D
T""
LO
A
O4
LO
v
0
r_
x
cO
