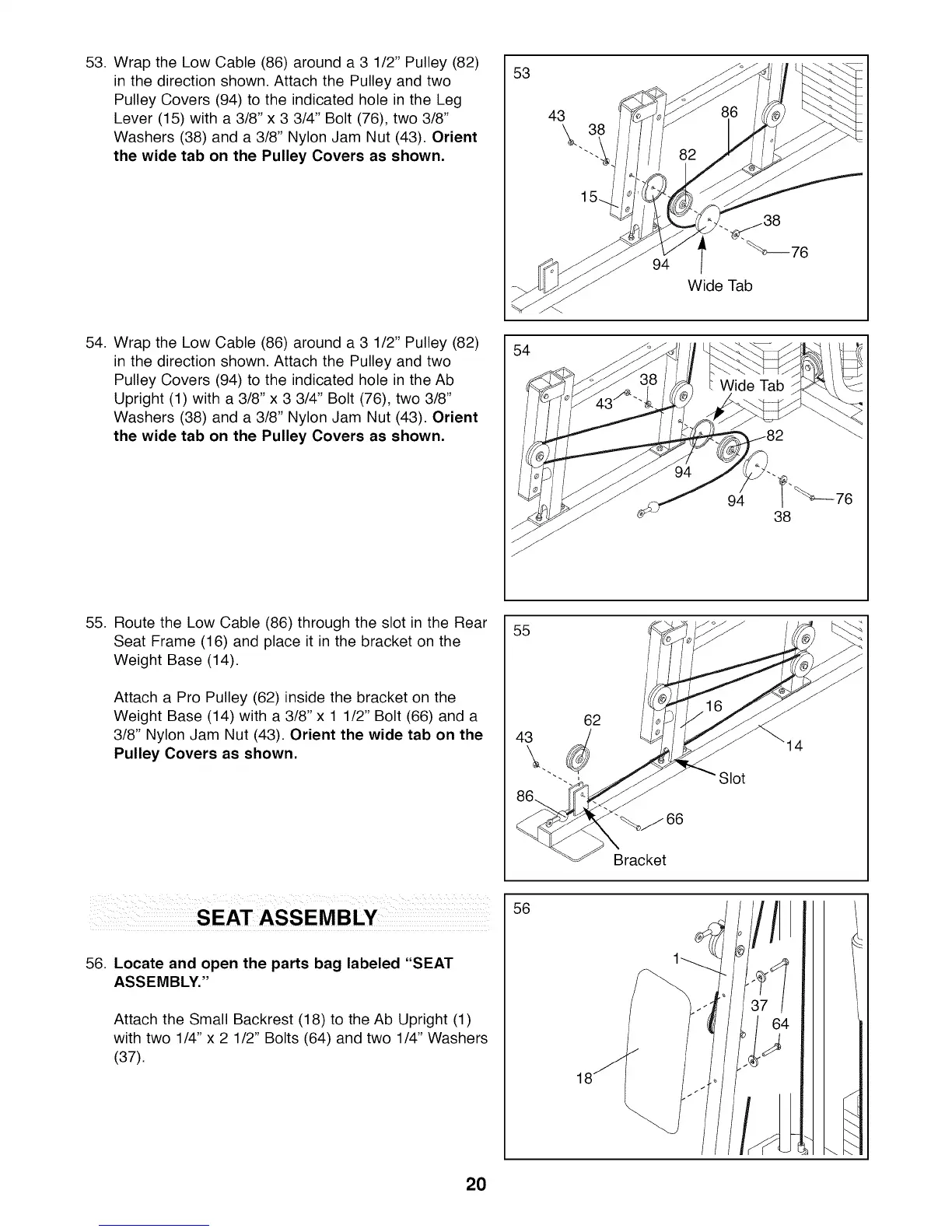

Weider PRO 9925 - Seat Assembly

53. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Leg
Lever (15) with a 3/8" x 3 3/4" Bolt (76), two 3/8"
Washers (38) and a 3/8" Nylon Jam Nut (43). Orient
the wide tab on the Pulley Covers as shown.
53
43
94
Wide Tab
54. Wrap the Low Cable (86) around a 3 1/2" Pulley (82)
in the direction shown. Attach the Pulley and two
Pulley Covers (94) to the indicated hole in the Ab
Upright (1) with a 3/8" x 3 3/4" Bolt (76), two 3/8"
Washers (38) and a 3/8" Nylon Jam Nut (43). Orient
the wide tab on the Pulley Covers as shown.
54
94
38
55. Route the Low Cable (86) through the slot in the Rear
Seat Frame (16) and place it in the bracket on the
Weight Base (14).
Attach a Pro Pulley (62) inside the bracket on the
Weight Base (14) with a 3/8" x 1 1/2" Bolt (66) and a
3/8" Nylon Jam Nut (43). Orient the wide tab on the
Pulley Covers as shown.
55
43
62
66
Bracket
14
56. Locate and open the parts bag labeled "SEAT
ASSEMBLY."
Attach the Small Backrest (18) to the Ab Upright (1)
with two 1/4" x 2 1/2" Bolts (64) and two 1/4" Washers
(37).
