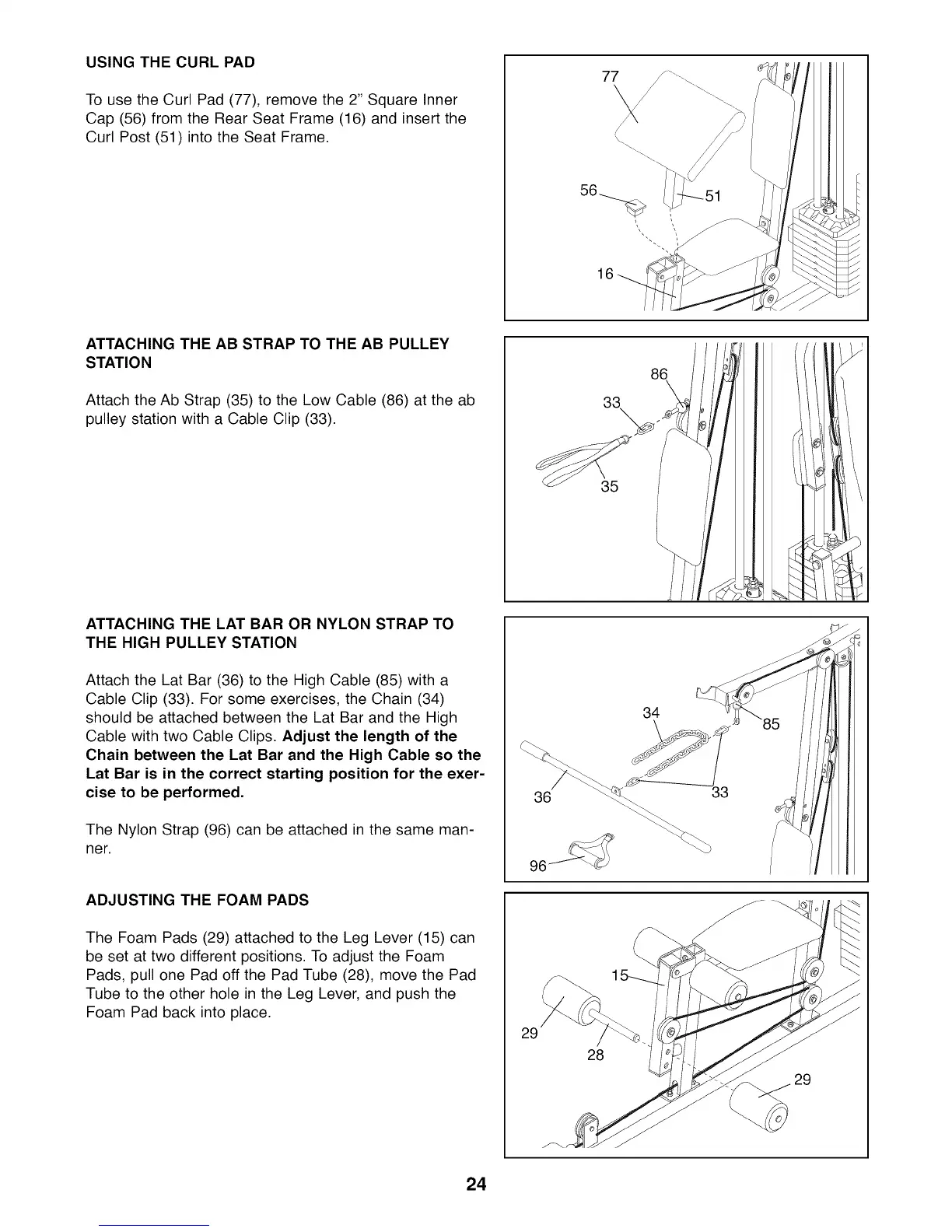

USING THE CURL PAD
To use the Curl Pad (77), remove the 2" Square Inner
Cap (56) from the Rear Seat Frame (16) and insert the
Curl Post (51) into the Seat Frame.
16
ATTACHING THE AB STRAP TO THE AB PULLEY
STATION
Attach the Ab Strap (35) to the Low Cable (86) at the ab
pulley station with a Cable Clip (33).
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
Attach the Lat Bar (36) to the High Cable (85) with a
Cable Clip (33). For some exercises, the Chain (34)
should be attached between the Lat Bar and the High
Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the High Cable so the
Lat Bar is in the correct starting position for the exer-
cise to be performed.
The Nylon Strap (96) can be attached in the same man-
ner.
ADJUSTING THE FOAM PADS
The Foam Pads (29) attached to the Leg Lever (15) can
be set at two different positions. To adjust the Foam
Pads, pull one Pad off the Pad Tube (28), move the Pad
Tube to the other hole in the Leg Lever, and push the
Foam Pad back into place.
36
96
29
86
33
\
35
34
33
28
24
