Weider PRO 9925 - Arm Assembly

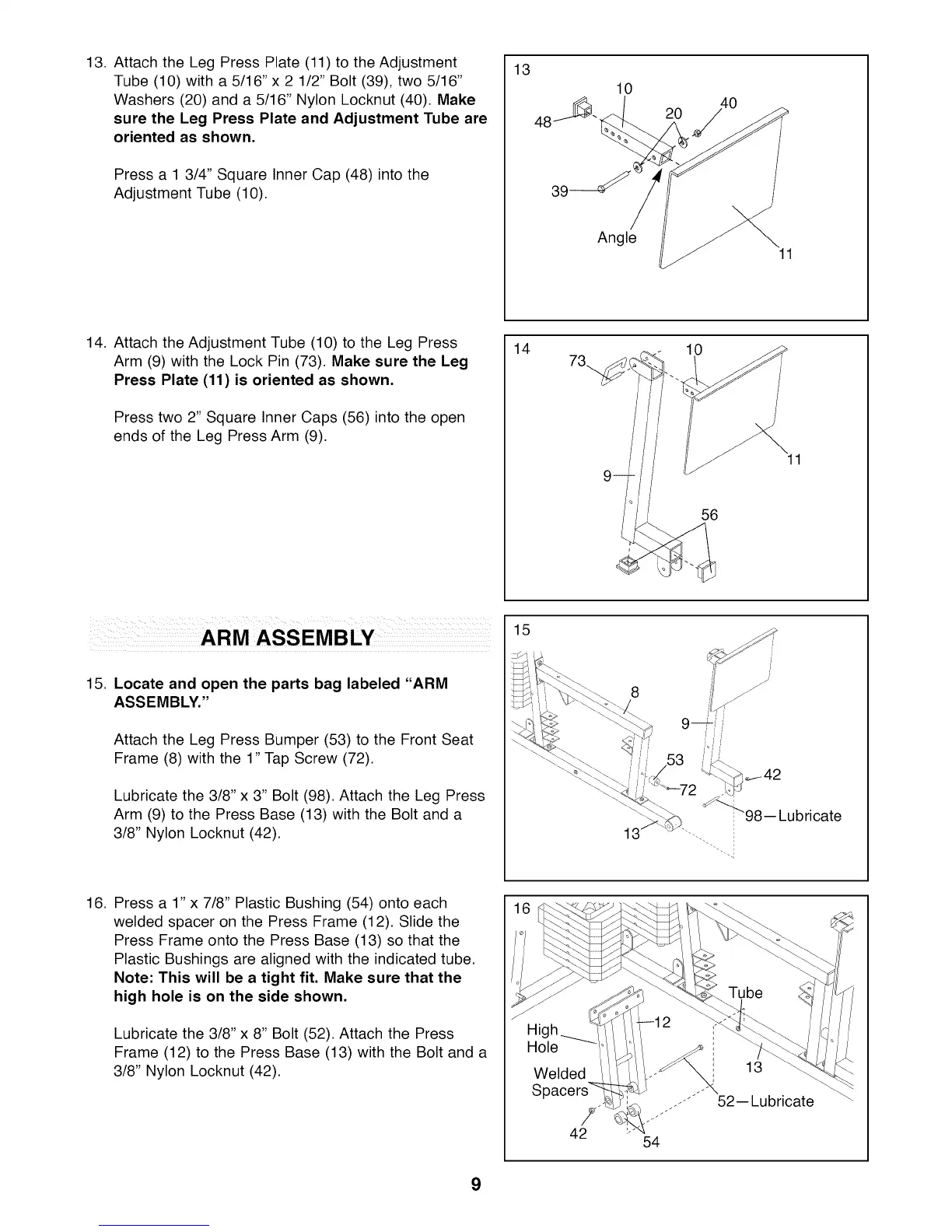

13. Attach the Leg Press Plate (11) to the Adjustment
Tube (10) with a 5/16" x 2 1/2" Bolt (39), two 5/16"
Washers (20) and a 5/16" Nylon Locknut (40). Make
sure the Leg Press Plate and Adjustment Tube are
oriented as shown.
Press a 1 3/4" Square Inner Cap (48) into the
Adjustment Tube (10).
13
39
10
Angle
20
11
14. Attach the Adjustment Tube (10) to the Leg Press
Arm (9) with the Lock Pin (73). Make sure the Leg
Press Plate (11) is oriented as shown.
Press two 2" Square Inner Caps (56) into the open
ends of the Leg Press Arm (9).
14
73
/
/
/
10
56
11
15. Locate and open the parts bag labeled "ARM
ASSEMBLY."
Attach the Leg Press Bumper (53) to the Front Seat
Frame (8) with the 1" Tap Screw (72).
Lubricate the 3/8" x 3" Bolt (98). Attach the Leg Press
Arm (9) to the Press Base (13) with the Bolt and a
3/8" Nylon Locknut (42).
15
13
16. Press a 1" x 7/8" Plastic Bushing (54) onto each
welded spacer on the Press Frame (12). Slide the
Press Frame onto the Press Base (13) so that the
Plastic Bushings are aligned with the indicated tube.
Note: This will be a tight fit. Make sure that the
high hole is on the side shown.
Lubricate the 3/8" x 8" Bolt (52). Attach the Press
Frame (12) to the Press Base (13) with the Bolt and a
3/8" Nylon Locknut (42).
Hole
Welded
13
9
