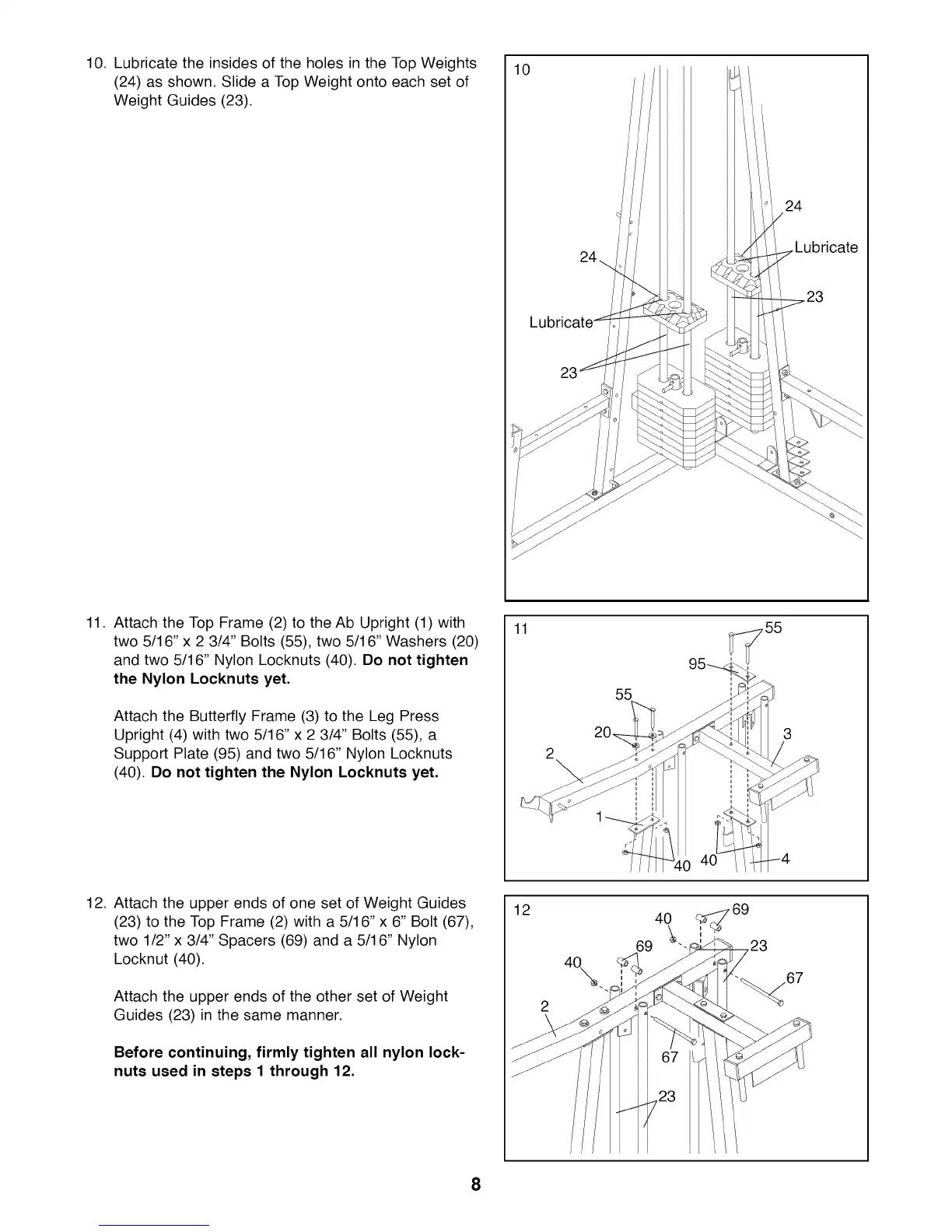

10. Lubricate the insides of the holes in the Top Weights
(24) as shown. Slide a Top Weight onto each set of
Weight Guides (23).
10
24\
24
.Lubricate
23
11.
Attach the Top Frame (2) to the Ab Upright (1) with
two 5/16" x 2 3/4" Bolts (55), two 5/16" Washers (20)
and two 5/16" Nylon Locknuts (40). Do not tighten
the Nylon Locknuts yet.
Attach the Butterfly Frame (3) to the Leg Press
Upright (4) with two 5/16" x 2 3/4" Bolts (55), a
Support Plate (95) and two 5/16" Nylon Locknuts
(40). Do not tighten the Nylon Locknuts yet.
11
2
55
12. Attach the upper ends of one set of Weight Guides
(23) to the Top Frame (2) with a 5/16" x 6" Bolt (67),
two 1/2" x 3/4" Spacers (69) and a 5/16" Nylon
Locknut (40).
Attach the upper ends of the other set of Weight
Guides (23) in the same manner.
Before continuing, firmly tighten all nylon lock-
nuts used in steps 1 through 12.
12
40
69
,23
67
8
