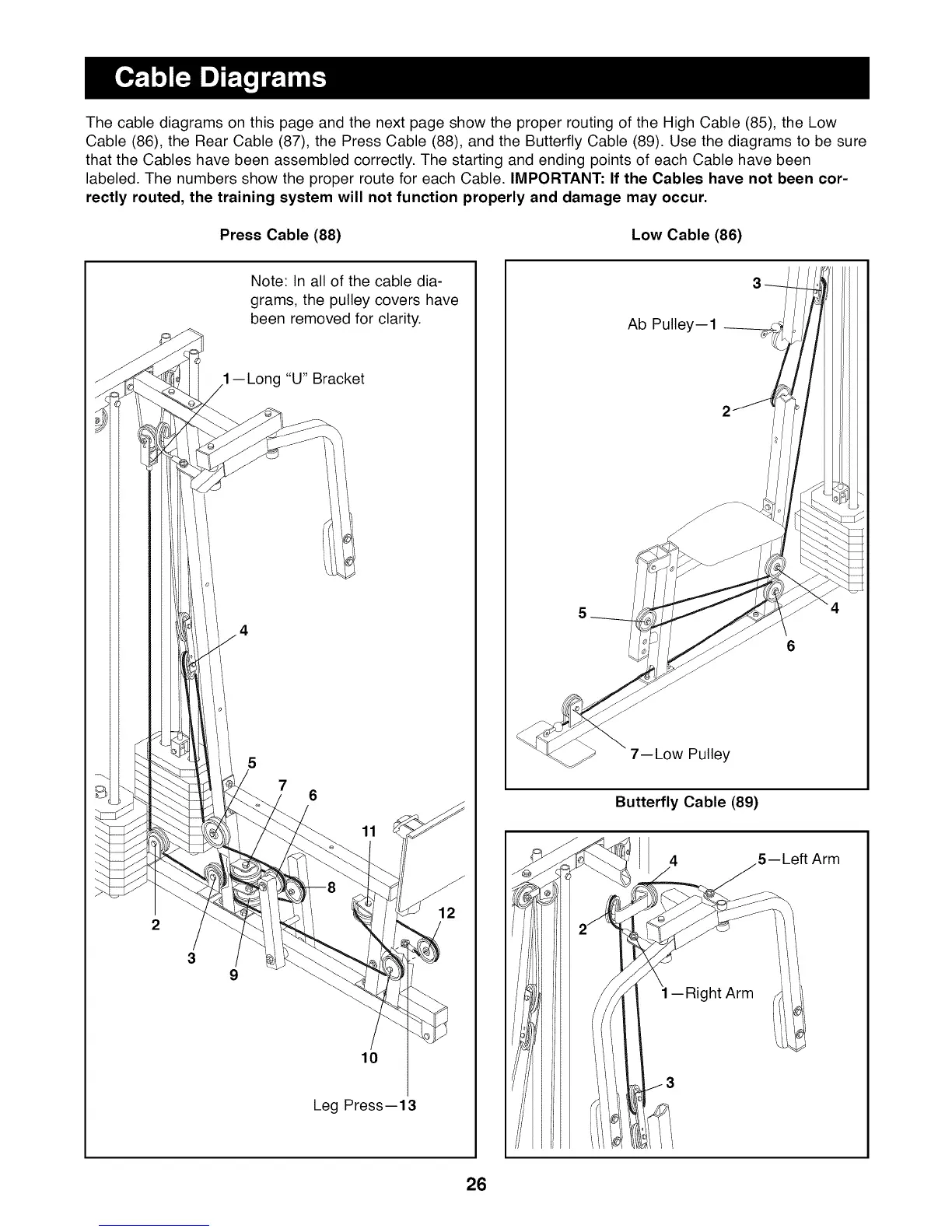

The cable diagrams on this page and the next page show the proper routing of the High Cable (85), the Low
Cable (86), the Rear Cable (87), the Press Cable (88), and the Butterfly Cable (89). Use the diagrams to be sure
that the Cables have been assembled correctly. The starting and ending points of each Cable have been
labeled. The numbers show the proper route for each Cable. IMPORTANT: If the Cables have not been cor-
rectly routed, the training system will not function properly and damage may occur.
Press Cable (88) Low Cable (86)
2
3
Note: In all of the cable dia-
grams, the pulley covers have
been removed for clarity.
'<U"Bracket
5
7
6
11
9
10
/
Leg Press--13
Ab Pulley--1
7--Low Pulley
Butterfly Cable (89)
5-- Left Arm
--Right Arm
26
To Next Page
