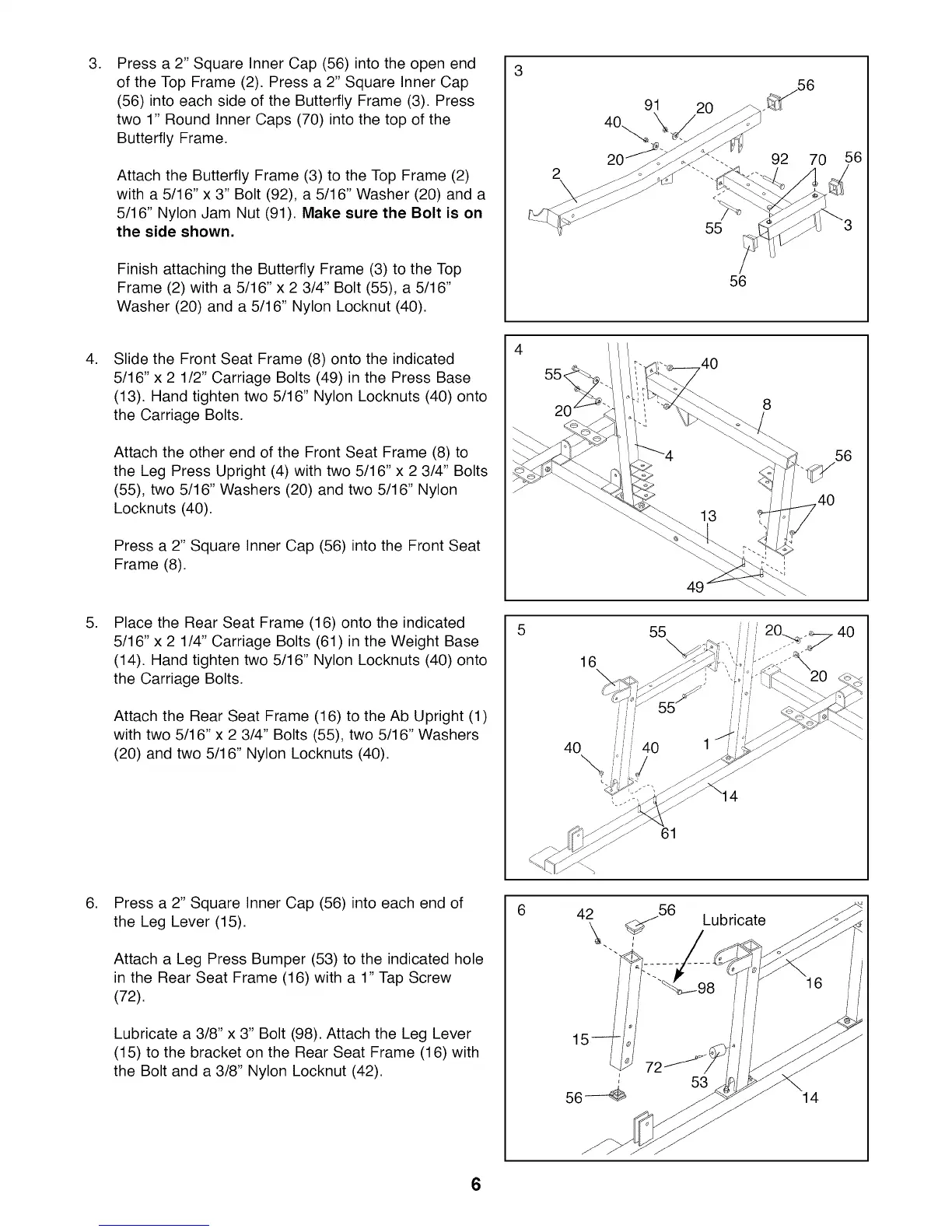

Press a 2" Square Inner Cap (56) into the open end
of the Top Frame (2). Press a 2" Square Inner Cap
(56) into each side of the Butterfly Frame (3). Press
two 1" Round Inner Caps (70) into the top of the
Butterfly Frame.
Attach the Butterfly Frame (3) to the Top Frame (2)
with a 5/16" x 3" Bolt (92), a 5/16" Washer (20) and a
5/16" Nylon Jam Nut (91). Make sure the Bolt is on
the side shown.
Finish attaching the Butterfly Frame (3) to the Top
Frame (2) with a 5/16" x 2 3/4" Bolt (55), a 5/16"
Washer (20) and a 5/16" Nylon Locknut (40).
2
2O
55
92 70
56
,6
,
Slide the Front Seat Frame (8) onto the indicated
5/16" x 2 1/2" Carriage Bolts (49) in the Press Base
(13). Hand tighten two 5/16" Nylon Locknuts (40) onto
the Carriage Bolts.
Attach the other end of the Front Seat Frame (8) to
the Leg Press Upright (4) with two 5/16" x 2 3/4" Bolts
(55), two 5/16" Washers (20) and two 5/16" Nylon
Locknuts (40).
Press a 2" Square Inner Cap (56) into the Front Seat
Frame (8).
56
,
,
Place the Rear Seat Frame (16) onto the indicated
5/16" x 2 1/4" Carriage Bolts (61) in the Weight Base
(14). Hand tighten two 5/16" Nylon Locknuts (40) onto
the Carriage Bolts.
Attach the Rear Seat Frame (16) to the Ab Upright (1)
with two 5/16" x 2 3/4" Bolts (55), two 5/16" Washers
(20) and two 5/16" Nylon Locknuts (40).
Press a 2" Square Inner Cap (56) into each end of
the Leg Lever (15).
Attach a Leg Press Bumper (53) to the indicated hole
in the Rear Seat Frame (16) with a 1" Tap Screw
(72).
Lubricate a 3/8" x 3" Bolt (98). Attach the Leg Lever
(15) to the bracket on the Rear Seat Frame (16) with
the Bolt and a 3/8" Nylon Locknut (42).
16
4O
55
\
%
61
42 56
Lubricate
4O
16
14
6
