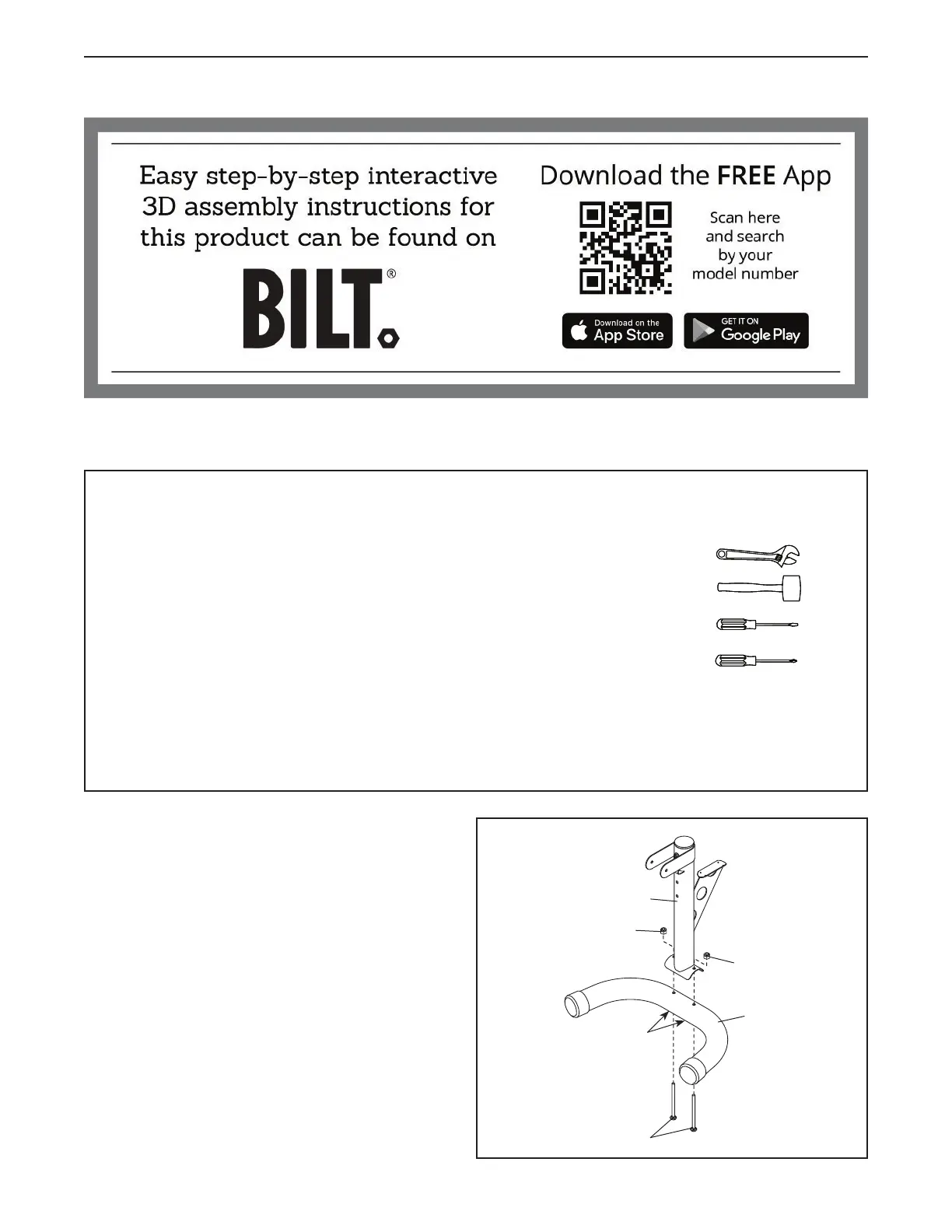

7
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Because of its size and weight, assemble the
weight bench in the location where it will be used.
Make sure that there is enough clearance to walk
around the weight bench as you assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tool(s):
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1. To use the assembly steps in this manual, first see the helpful tips below.
2. Orient the Front Stabilizer (2) with the square
holes (A) toward the floor.
Attach the Front Stabilizer (2) to the Front Leg
(4) with two M10 x 90mm Carriage Bolts (40)
and two M10 Locknuts (57); do not tighten the
Locknuts yet.
2
57
57
4
2
40
A
