9

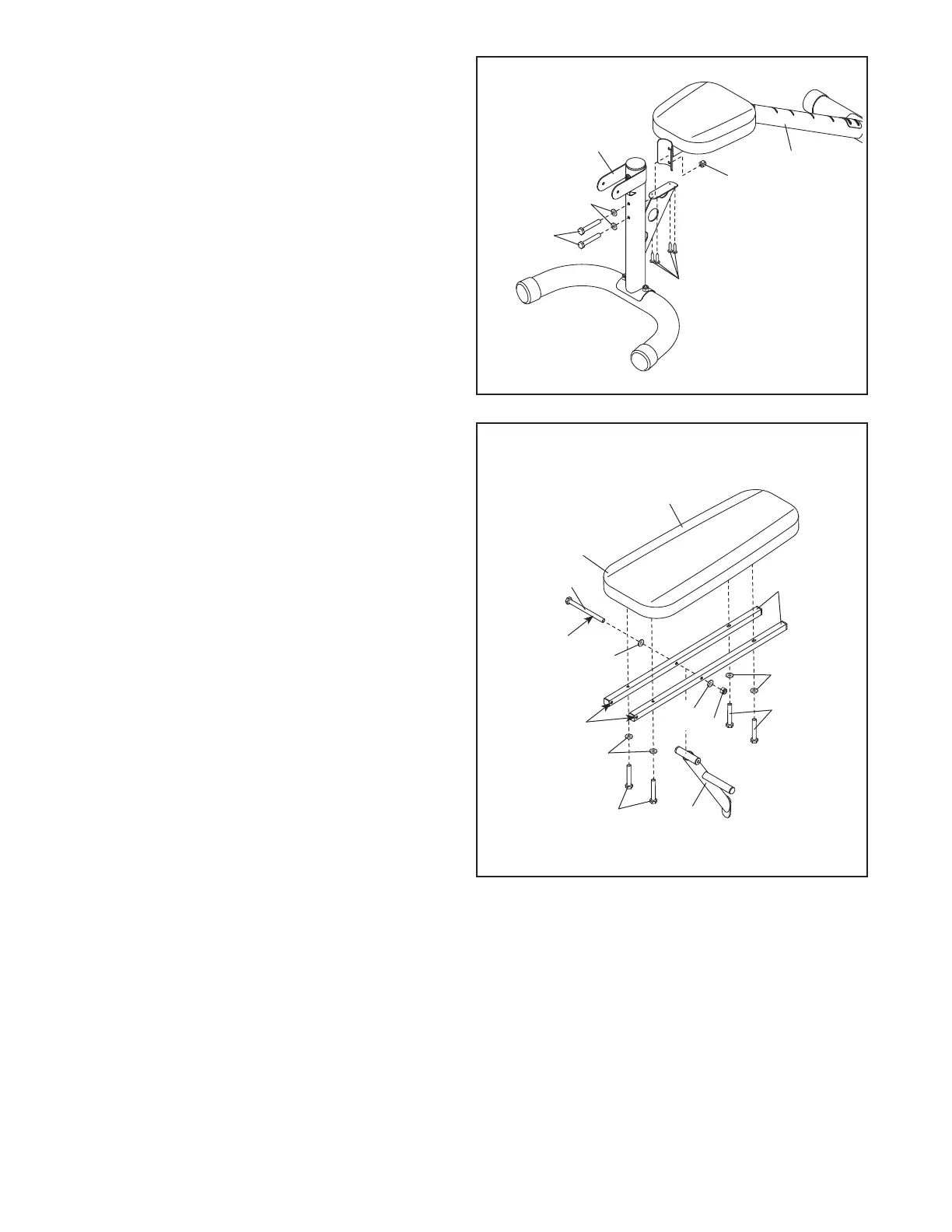

5. Attach the Frame (1) to the Front Leg (4) with
two M10 x 85mm Bolts (43), two M10 Washers
(52), and an M10 Locknut (57); do not tighten
the Locknut yet.
Finish attaching the Front Leg (4) to the Frame
(1) with four M4 x 19mm Screws (51); start all
the Screws, and then tighten them.
See steps 2, 3, and 5. Tighten the M10
Locknuts (57).
5
1
4
51
57
43
52
6. Orient the Backrest Post (15) and the Backrest
Frames (16) as shown. Make sure that the
indicated holes (D) in the Backrest Frames
are in the locations shown.
Using a plastic bag to keep your fingers clean,
apply some of the included grease to an
M10 x 165mm Bolt (49).
Attach the Backrest Post (15) to the Backrest
Frames (16) with the M10 x 165mm Bolt (49),
two M10 Washers (52), and an M10 Locknut
(57); do not tighten the Locknut yet.
Orient the Backrest (19) so that the wide end (E)
is in the location shown.
Attach the Backrest (19) to the Backrest Frames
(16) with four M6 x 40mm Screws (48) and
four M6 Washers (53); do not tighten the
Screws yet.
6
19
49
52
16
53
53
15
52
57
48
48
Grease
E
D
To Next Page
