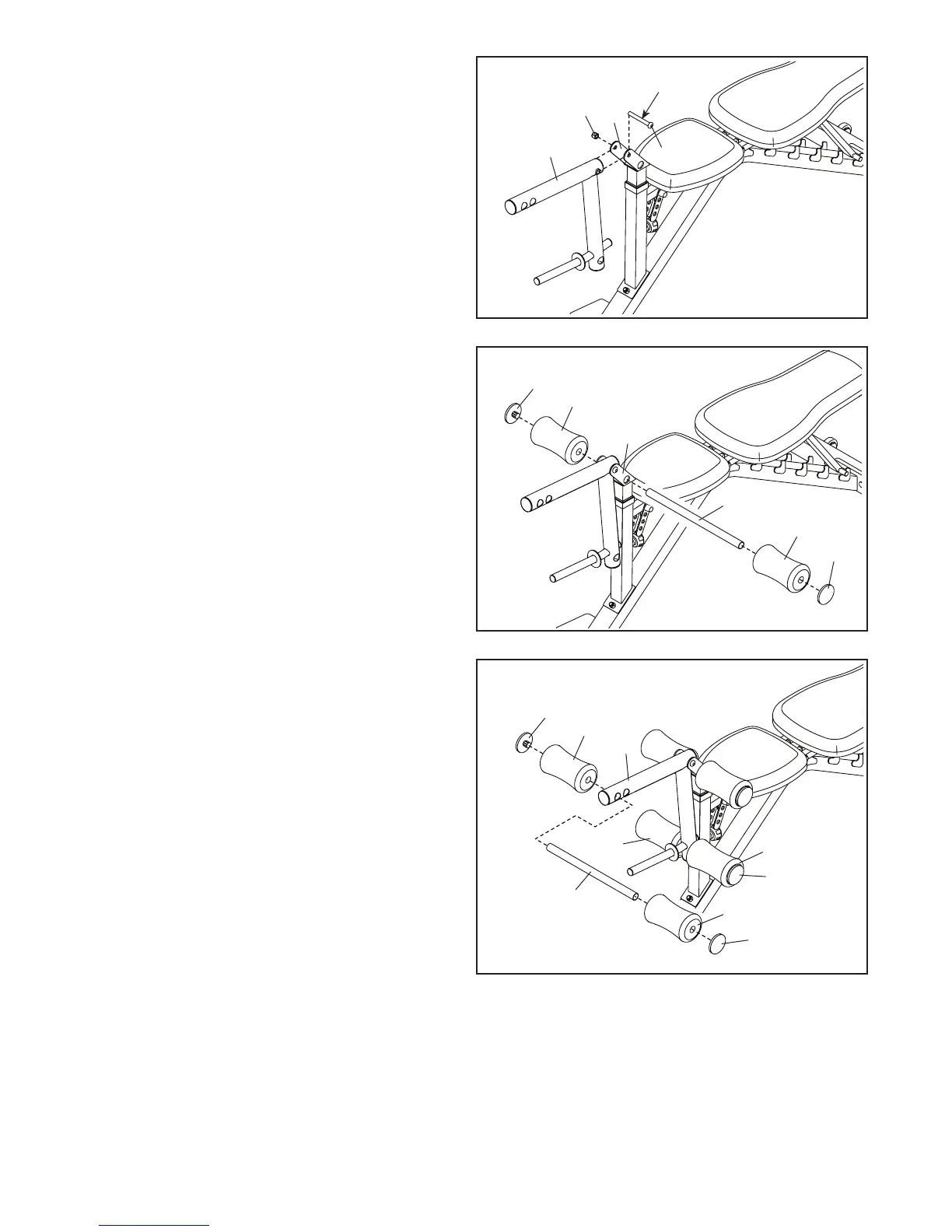

15. Apply a generous amount of the included grease
to an M12 x 80mm Bolt (50).
Attach the Leg Lever (6) to the Leg Lever Post
(5) with the M12 x 80mm Bolt (50) and an M12
Locknut (45); do not overtighten the Locknut;
the Leg Lever must pivot easily.
16
16. Insert the Long Pad Tube (61) through the Leg
Lever Post (5).
Next, slide two Foam Pads (18) onto the Long
Pad Tube (61). Then, press two Pad Caps (20)
into the Long Pad Tube.
20
20
5
61
5
Grease
50
45
18
18
6
17
17. Insert a Short Pad Tube (12) through either of
the holes in the upper end of the Leg Lever (6).
Next, slide two Foam Pads (18) onto the Short
Pad Tube (12). Then, press two Pad Caps (20)
into the Short Pad Tube.
Repeat this step on the lower end of the Leg
Lever (6).
20
20
18
6
18
18
12
20
18
