5

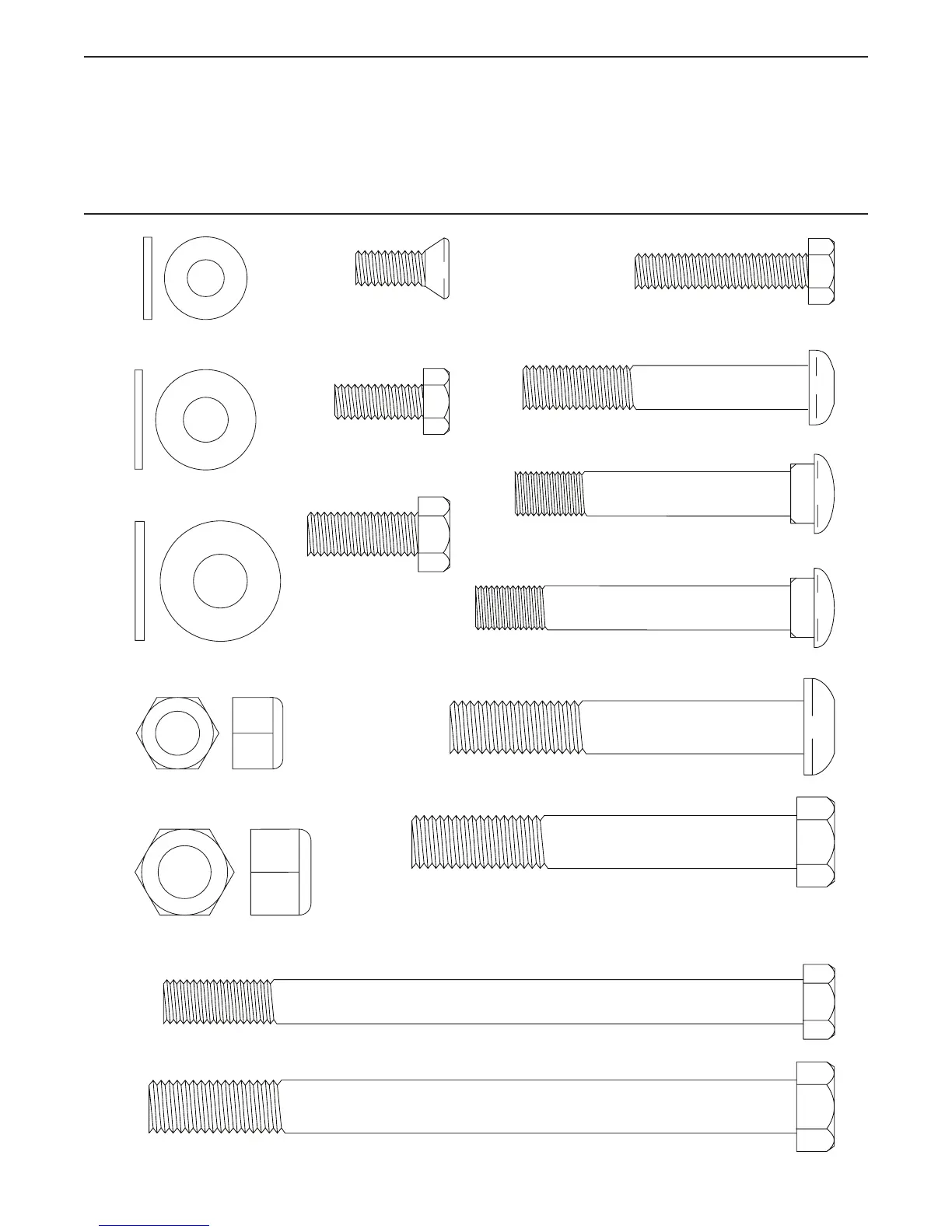

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in
the hardware kit, check to see whether it has been preassembled. Extra hardware may be included. If a
part is missing, call 1-877-992-5999.
M10 Locknut (44)
M8 Washer (40)
M10 Washer (41)
M12 Washer (42)
M10 x 77mm Carriage Bolt (53)
M10 x 68mm Carriage Bolt (54)
M12 Locknut (45)
M10 x 145mm Bolt (55)
M12 x 147mm Bolt (56)
M12 x 87mm Bolt (52)
M8 x 20mm Flat
Head Screw (43)
M8 x 20mm
Screw (47)
M10 x 25mm
Screw (49)
M12 x 80mm Bolt (50)
M10 x 65mm Bolt (48)
M8 x 40mm
Screw (46)
PART IDENTIFICATION CHART
