16

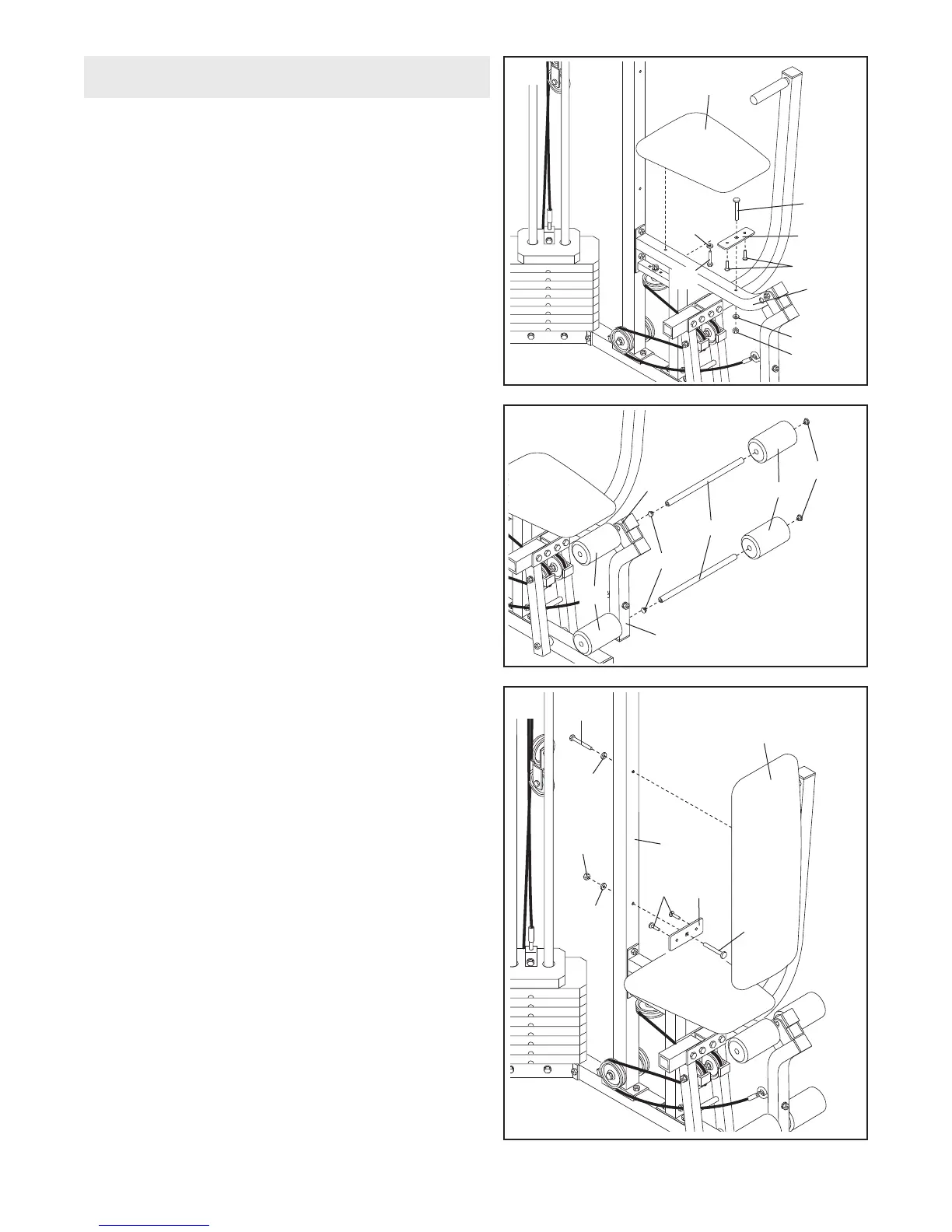

Seat Assembly
34. Press four 3/4” Round Inner Caps (40) into the ends
of the Pad Tubes (48).
Insert the Pad Tubes (48) into the indicated holes in
the Leg Lever (49) and the Press Seat Frame (52).
Slide Foam Pads (47) onto the ends of the Pad
Tubes.
35. Insert a 1/4” x 2 1/2” Carriage Bolt (12) through the
centre hole in a Seat Plate (42). Attach the Seat Plate
to the Press Backrest (89) with two 1/4” x 3/4” Screws
(13).
Insert the 1/4” x 2 1/2” Carriage Bolt (12) with a 1/4”
Flat Washer (11) into the indicated hole in the Press
Frame Upright (59) and secure it with a 1/4” Nylon
Locknut (16).
Secure the other end of the Press Backrest (89) with
a 1/4” x 2 1/2” Screw (10) and a 1/4” Flat Washer
(11).
33. Locate and open the parts bag labelled “SEAT
ASSEMBLY.”
Insert a 1/4” x 2” Carriage Bolt (85) through the cen-
tre hole in a Seat Plate (42). Attach the Seat Plate to
a Seat (51) with two 1/4” x 3/4” Screws (13).
Insert the 1/4” x 2” Carriage Bolt (85) into the indicat-
ed hole in the Press Seat Frame (52) and secure it
with a 1/4” Flat Washer (11) and a 1/4” Nylon Locknut
(16). Secure the other end of the Seat (51) with a 1/4”
x 2” Bolt (86) and a 1/4” Flat Washer (11).
51
52
1
1
11
16
86
13
42
85
35
10
11
11
16
59
13
42
12
89
33
34
40
49
52
47
47
40
48
To Next Page
