9

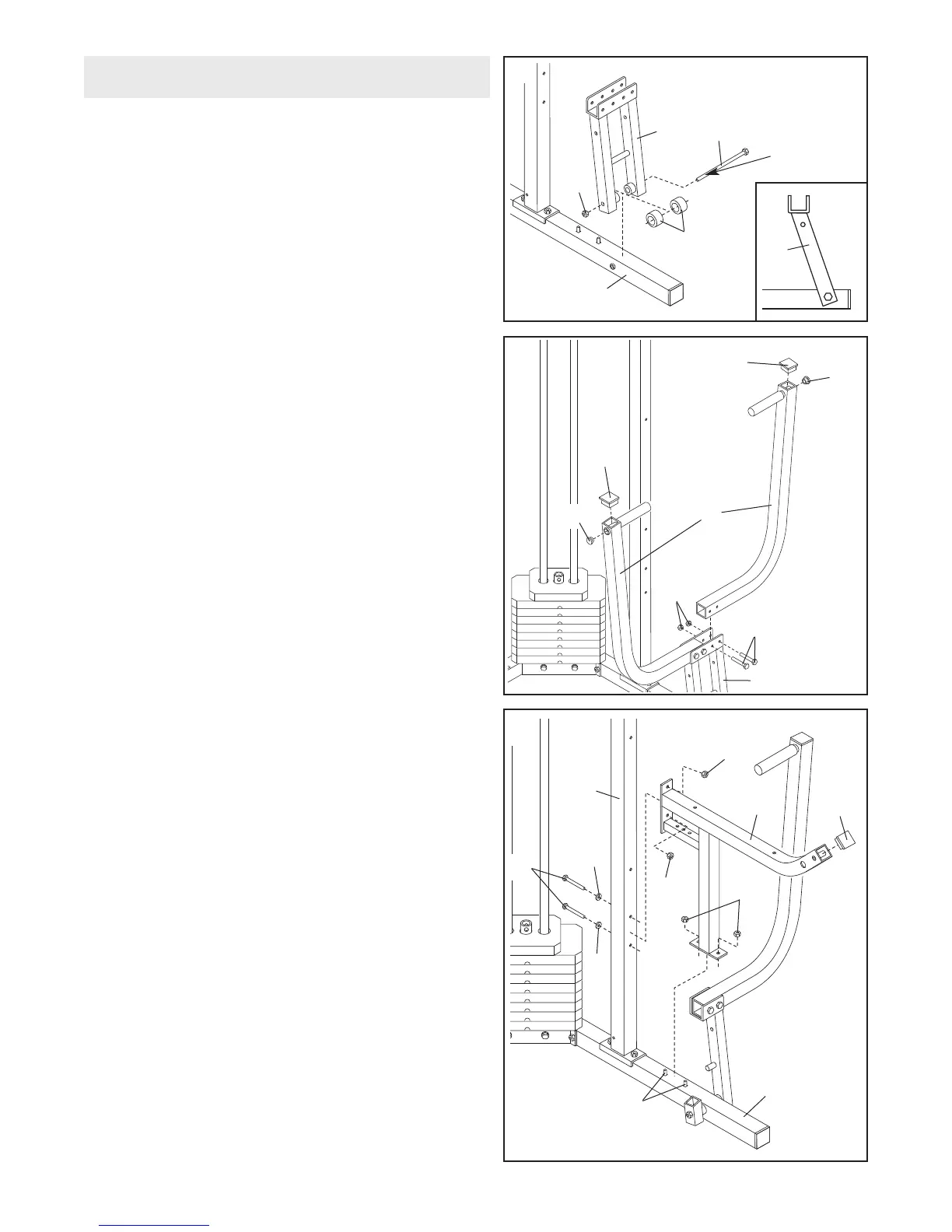

11. Press a 1 1/2” Square Inner Cap (79) into the Press
Seat Frame (52).
Slide the bracket on the Press Seat Frame (52) onto
the indicated 5/16” x 2 1/2” Carriage Bolts (1) in the
Press Base (60). Tighten two 5/16” Nylon Locknuts
(2) onto the Bolts.
Attach the Press Seat Frame (52) to the Press Frame
Upright (59) with two 5/16” x 2 3/4” Bolts (20), two
5/16” Flat Washers (19), and two 5/16” Nylon
Locknuts (2).
9
. Locate and open the parts bag labelled “ARM
ASSEMBLY.”
See the inset drawing. Orient the Press Frame (53) as
shown. Lubricate a 3/8” x 8” Bolt (30). Attach the
Press Frame to the Press Base (60) with the Bolt, two
1” x 7/8” Plastic Bushings (29), and a 3/8” Nylon
Locknut (4). Do not overtighten the Nylon Locknut.
The Press Frame must pivot easily.
10. Press a 1 3/4” Square Inner Cap (37) into the top of a
Press Arm (54). Press a 1” Inner Cap (80) into the
indicated hole in the Press Arm.
Attach the Press Arm (54) to the bracket on the Press
Frame (53) with two 5/16” x 2 1/2” Bolts (3) and two
5/16” Nylon Locknuts (2).
Repeat this step to assemble the second Press Arm
(54).
Arm Assembly
10
19
2
2
2
79
52
3
2
53
54
80
37
37
80
59
20
19
60
1
9
30
L
ubricate
53
29
60
4
53
11
