WeiderPro 9930 - Trouble-shooting and Maintenance; Regular Inspection and Tightening; Tightening Cables; Cable Slipping Troubleshooting

22
Slack can be removed from the Long Cable (73) by mov-
ing the indicated 3 1/2” Pulley (5) in the direction shown.
The Pulley is attached to the small tube on the Press
Seat Frame (52). There are two free holes in the small
tube, and the Pulley can be moved to any one of them to
tighten the cables. To do this, remove the 3/8” Nylon
Locknut (4), 3/8” Flat Washer (17), and 3/8” x 2 1/2” Bolt
(6). Start by moving the Pulley one hole, and then one
more as needed. Reattach the Bolt, Washer, and
Locknut.
Trouble-shooting and Maintenance
Inspect and tighten all parts each time you use the home gym. Replace any worn parts immediately. The
home gym can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
T
IGHTENING THE CABLES
The type of cable used on the home gym can stretch slightly when it is first used. If there is slack in the cables
before resistance is felt, the cables should be tightened. Slack can be removed from the cables in several differ-
ent ways:

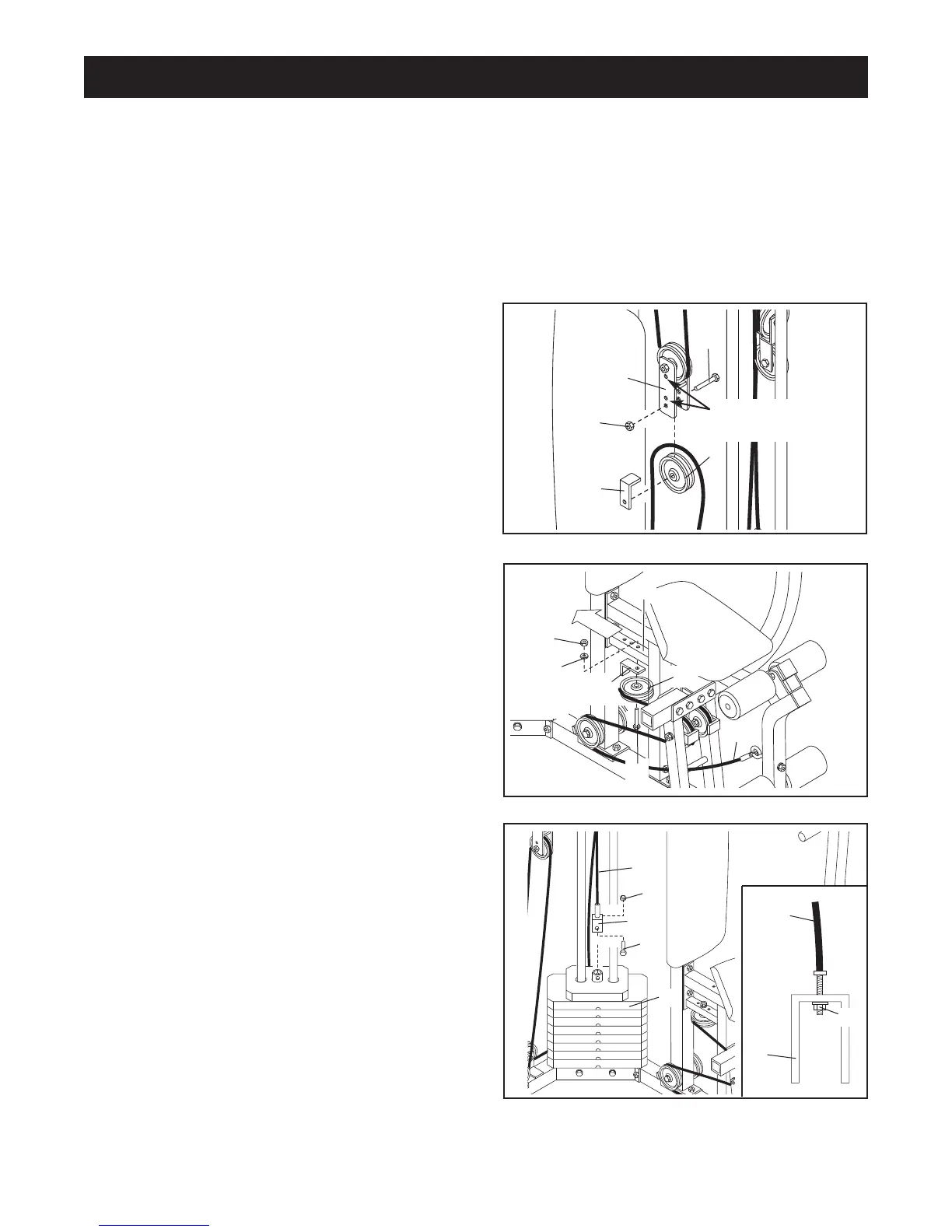

The Adjustable Pulley Plates (44) have two sets of
adjustment holes. By moving one or both 3 1/2” Pulleys
(5) to a different set of holes, you will tighten the cables.
To move a 3 1/2” Pulley (5), remove the 3/8” Nylon
Locknut (4) and the 3/8” x 2” Bolt (35). Remove the
Cable Trap (39) and Pulley from the Adjustable Pulley
Plates (44). Re-attach the Pulley and Cable Trap to the
appropriate adjustment hole in the Pulley Plates. Note:
Begin by moving one Pulley to the second adjust-
ment hole. If additional adjustment is needed, move
the other Pulley until the cables are tight.
44
Adjustment
Holes
5
35
39
4
73
4
17
6
14
5
If a cable slips off the pulleys often, the cable may have become twisted. Remove the cable and re-install
it. If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.
The threaded shaft on the Medium Cable (72) attached to
the Weights (8) can also be used to tighten the cables.
To tighten the Medium Cable (72), remove the Small “U”-
Bracket (43) by removing the 5/16” Nylon Locknut (2) and
the 5/16” x 1 3/4” Bolt (9).
See the inset drawing. Tighten the 1/4” Nylon Locknut
(16) at the end of the Medium Cable (72) as far as it will
go. Then re-attach the Small “U”-Bracket (43).
72
2
43
9
8
72
43
16
52
