WeiderPro Pro 4500 - Page 15

15

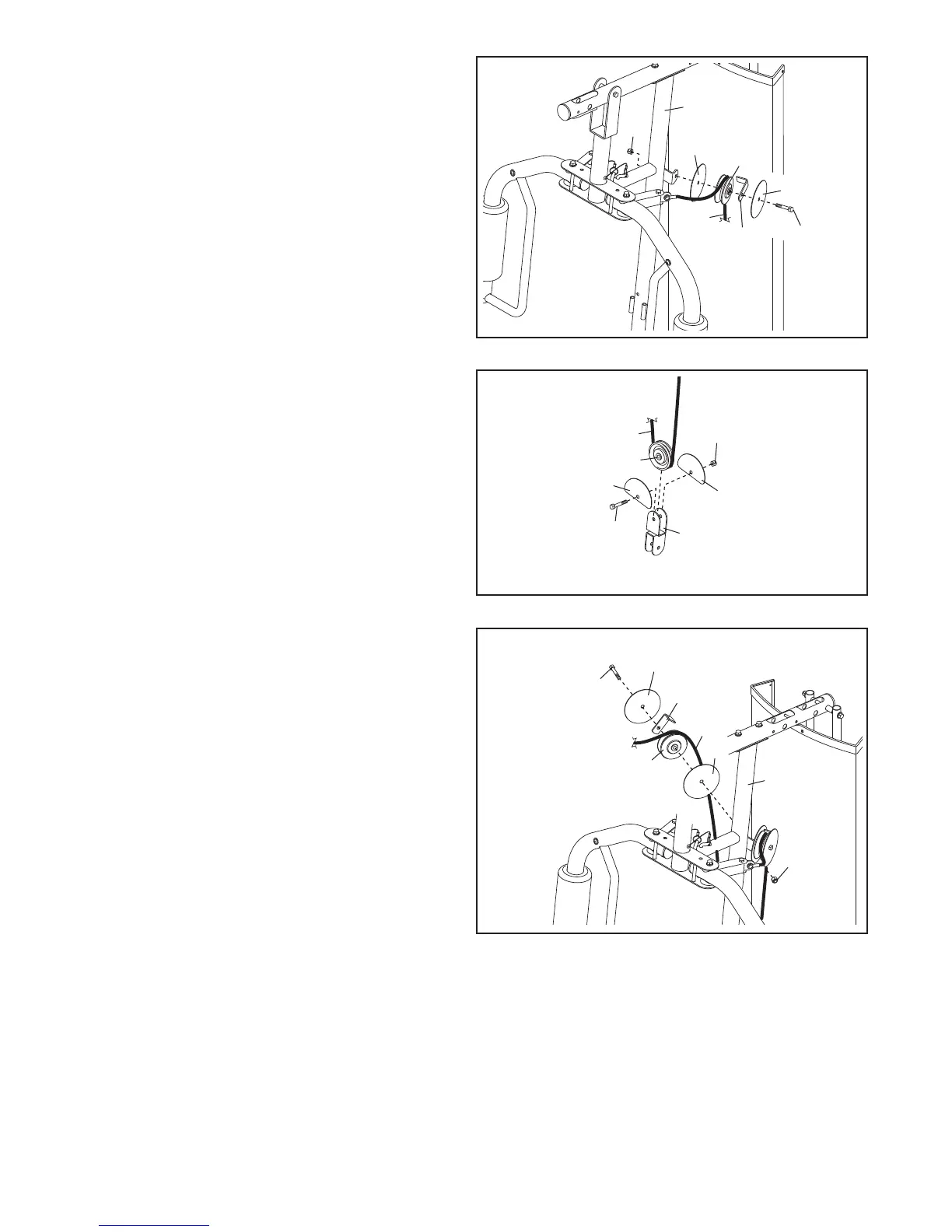

14. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
and two Guards (41) to the Upright (3) with an
M
10 x 65mm Bolt (75) and an M10 Locknut
(56). Make sure that the Cable Trap is ori-
e
nted to hold the Cable in the groove of the
V-pulley.
16. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
and two Guards (41) to the Upright (3) with an
M10 x 65mm Bolt (75) and an M10 Locknut
(56). Make sure that the Cable Trap is ori-
ented to hold the Cable in the groove of the
V-pulley.
15. Route the Arm Cable (54) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
45mm Bolt (81) and an M10 Locknut (56). Make
sure that the Half Guards are on the outside
of the Double U-bracket as shown.
56
3
46
50
41
75
54
41
14
48
43
43
63
81
56
54
15
16
56
3
54
46
50
41
75
41
