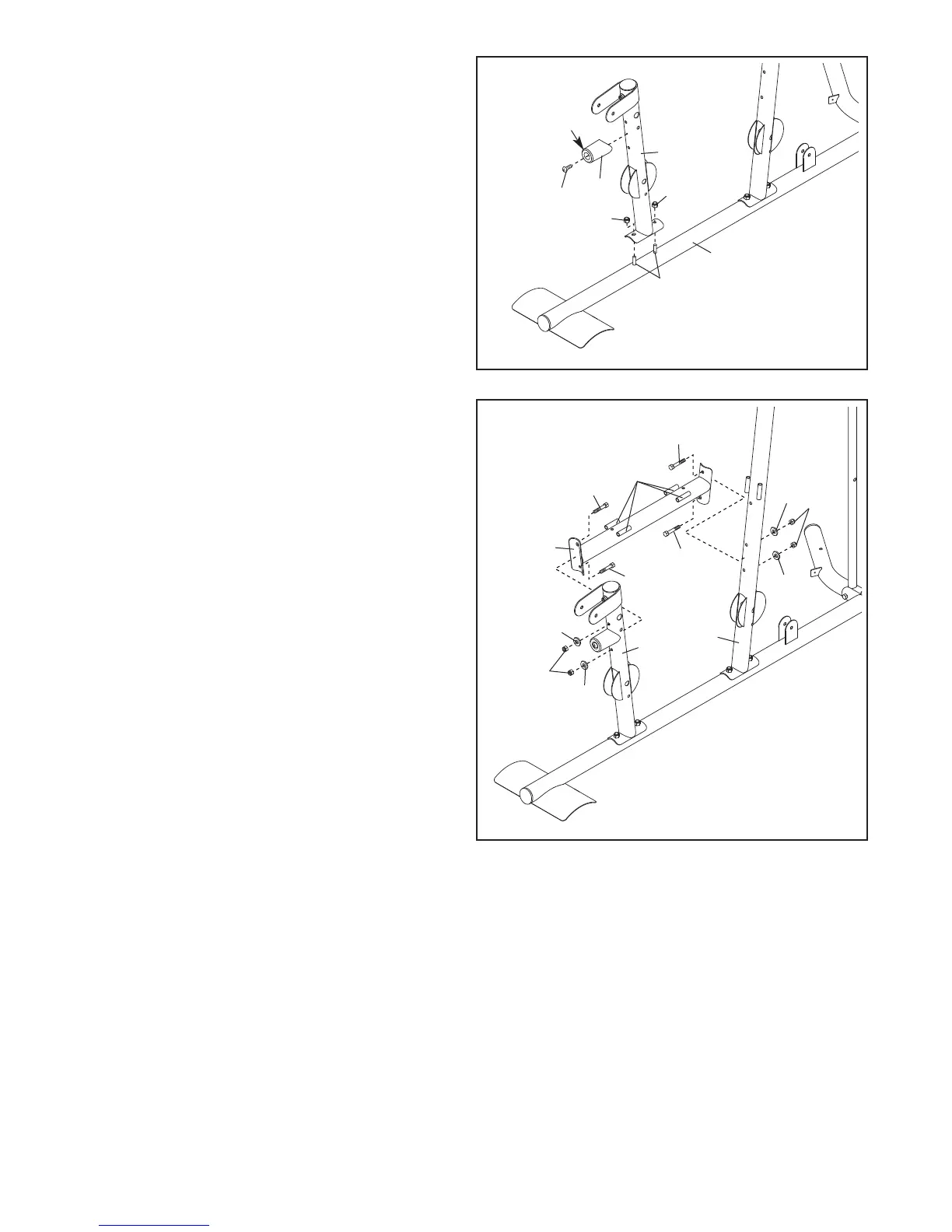

3. Attach the Front Leg (7) to the Base (1) with the
two indicated M8 x 75mm Carriage Bolts (78)
and two M8 Locknuts (58). Do not tighten the
L
ocknuts yet.
A
ttach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 19mm Screw (69). Make sure
that the end of the Leg Bumper is pointing
upward.
4. Hold the Seat Frame (6) between the Upright
(3) and the Front Leg (7). Orient the Seat
Frame so that the welded rods are closer to the
Upright.
Attach the Seat Frame (6) to the Upright (3)
with two M8 x 80mm Bolts (68), two M8
Washers (59), and two M8 Locknuts (58). Do
not tighten the Locknuts yet.
Attach the Seat Frame (6) to the Front Leg
(7) in the same manner.
