5.3 Mounting
The product is designed to be mounted onto a TS 35
DIN rail.
It clips onto the rail via a spring-loaded mounting
foot and can be removed via a spring release on the
edge of the product near the mounting rail.

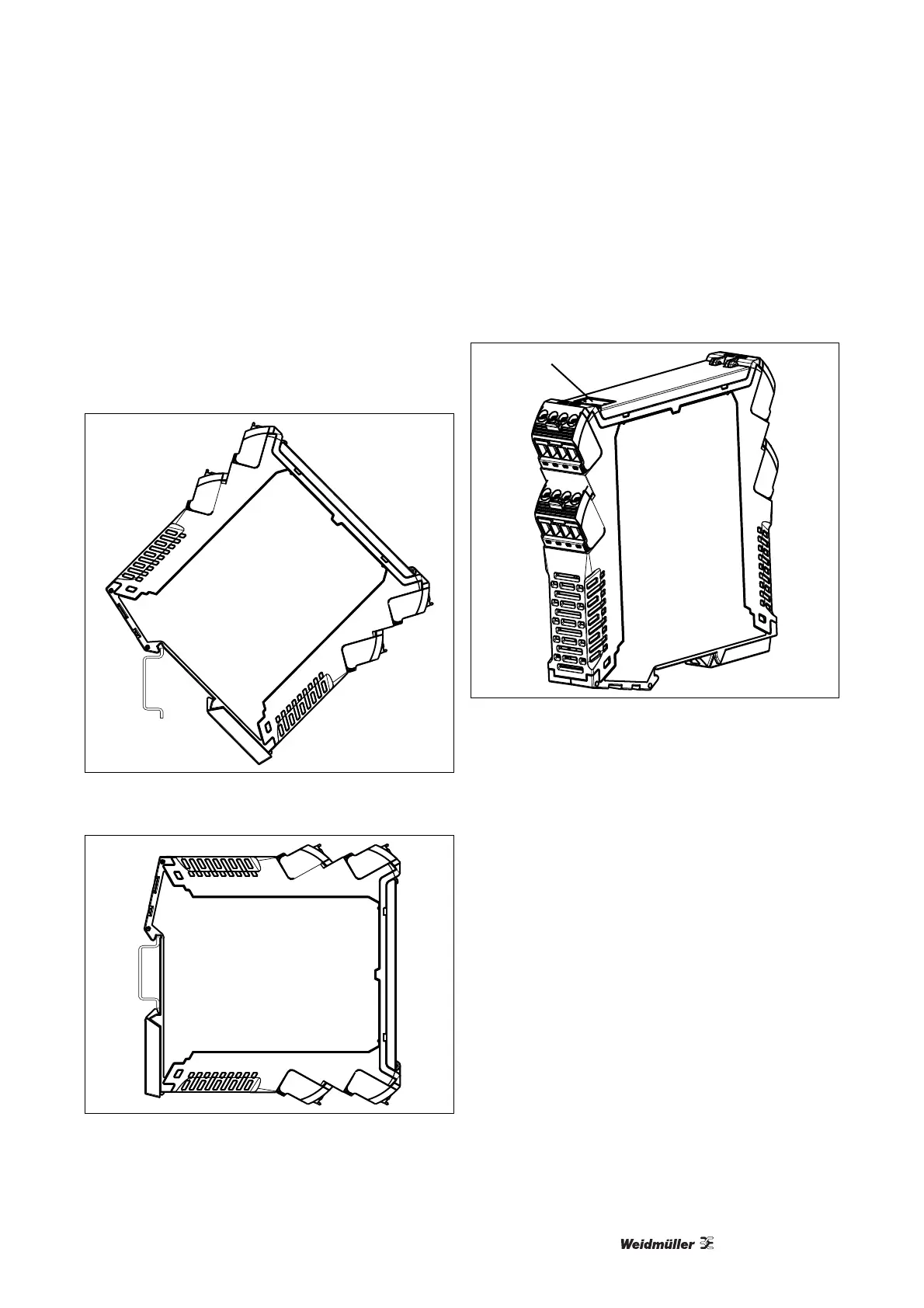

Illustration 5-1: Mounting, Step 1
Illustration 5-2: Mounting, Step 2
5.4 Marking
A device marker is located below the upper set of
terminals for costumer identification.
1
Illustration 5-3: Marking
1 Device Marker
