The Linear Pans should overlap each other but should never touch each other. Installed Linear Pans
should sit firmly in their Linear Vibrator Brackets.
To secure the Linear Pan, pull the Clamp Assembly’s handle up until the Linear Pan is held firmly in the
Linear Vibrator Bracket.

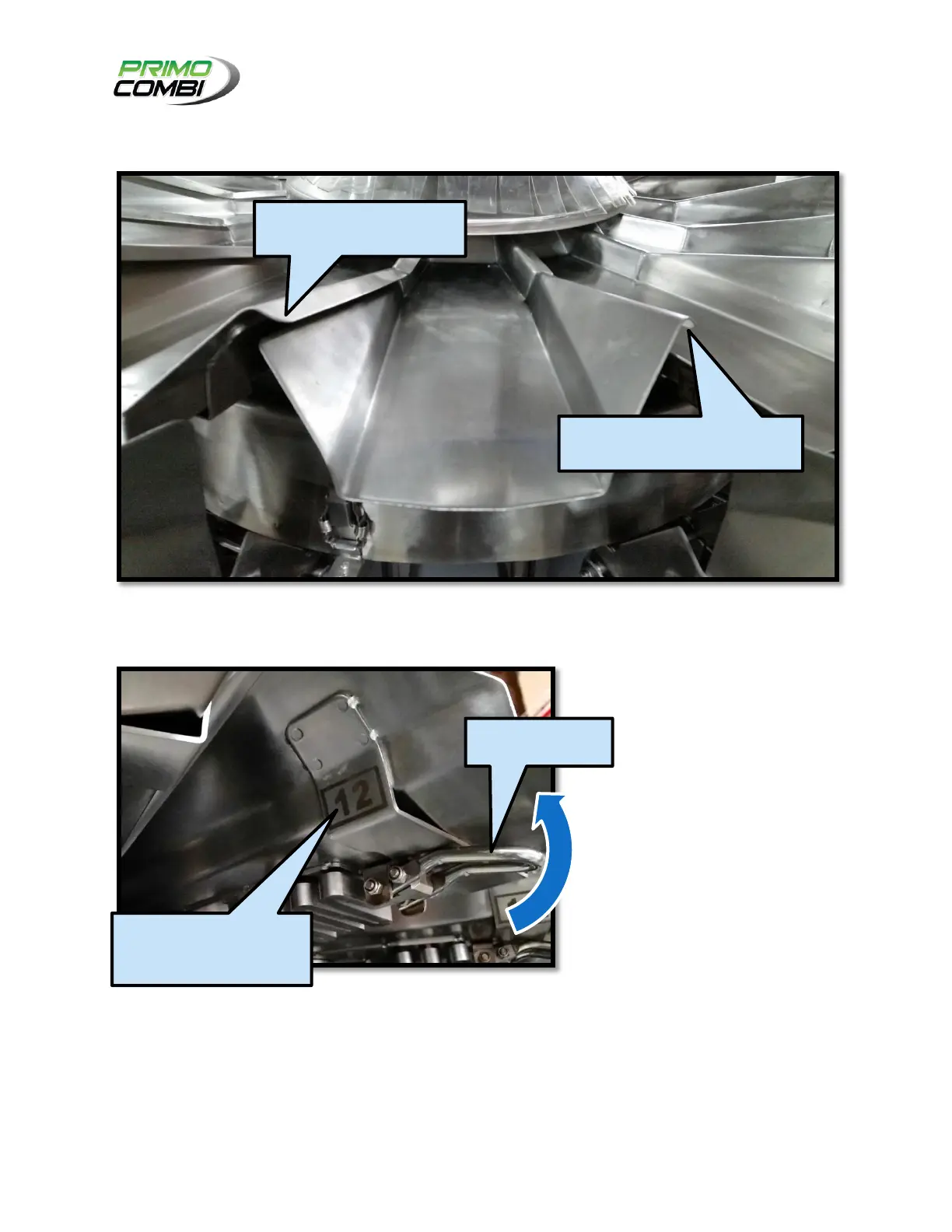

OVERLAP FROM ADJACENT
LINEAR PAN
LIP OF LINEAR PAN OVERLAPPING
WITH THE NEXT LINEAR PAN
PULL HANDLE UP
TO LOCK IN PLACE
EACH PAN HAS A NUMBER
MATCHING THE LANE IT
BELONGS TO
