WEIHONG ELECTRONIC Ncstudio User Manual

上海维宏电子科技股份有限公司
Weihong Electronic Technology Co., Ltd.
Specialized, Concentrated, Focused 21
End point
Start point
X
10
20
10
20
Y
0
R
1
0
(a)
(10,10)
Start point
End point
X
10
20
10
20
Y
0
R
1
0
(b)
(10,10)

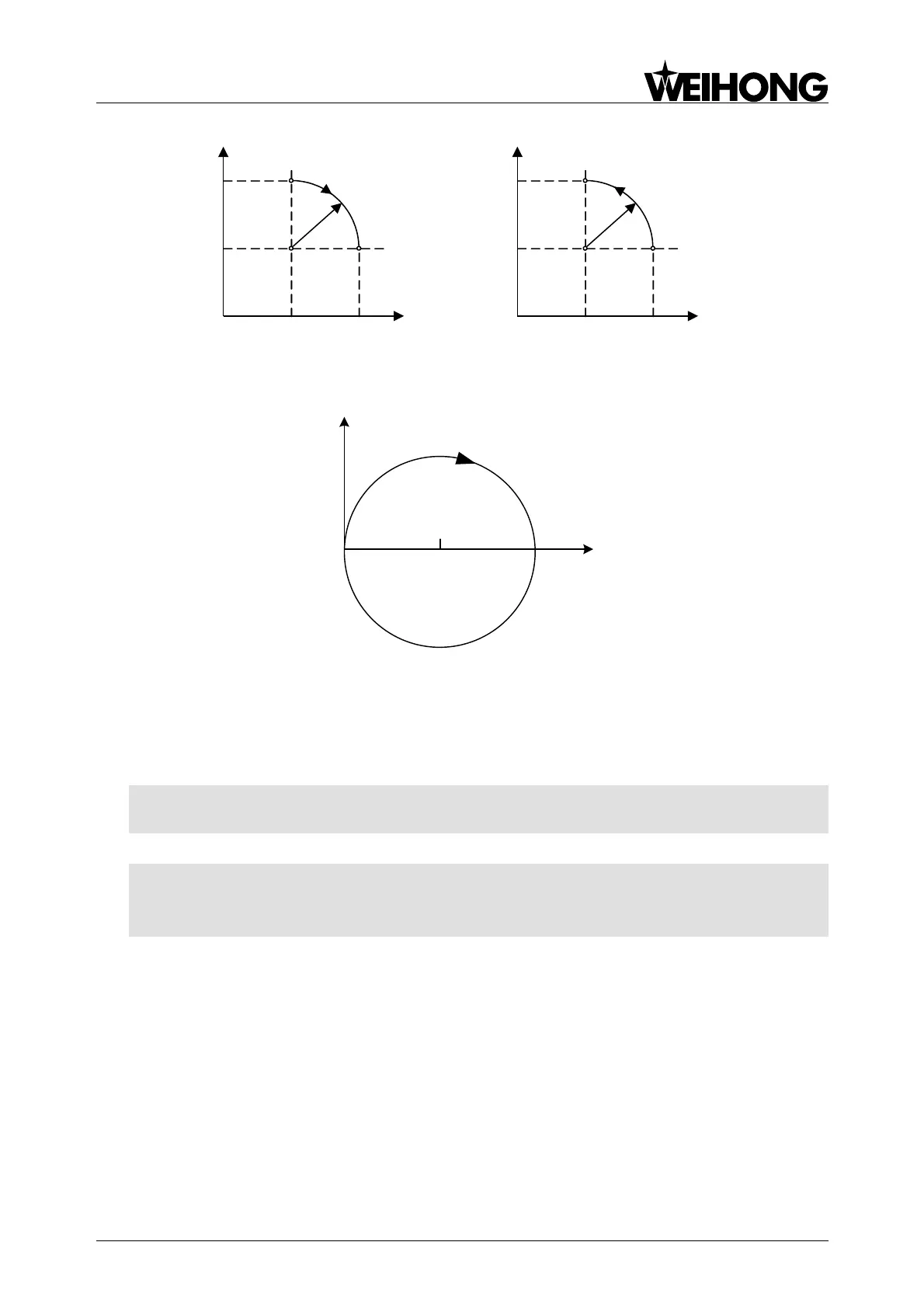

Fig. 4-10 G02/ G03 Programming
20
0
Y
X
40
Fig. 4-11 A Full Circle Interpolation
Programming Example:
A full circle interpolation, see Fig. 4-11.
Solution 1:
G00 X0 Y0
G02 X0 Y0 I20 J0 F300
Solution 2:
G00 X0 Y0
G02 X20 Y-20 R-20 F300
G02 X0 Y0 R20 F300
Programming Example:
Helical programming in G03, as shown in Fig. 4-12.
