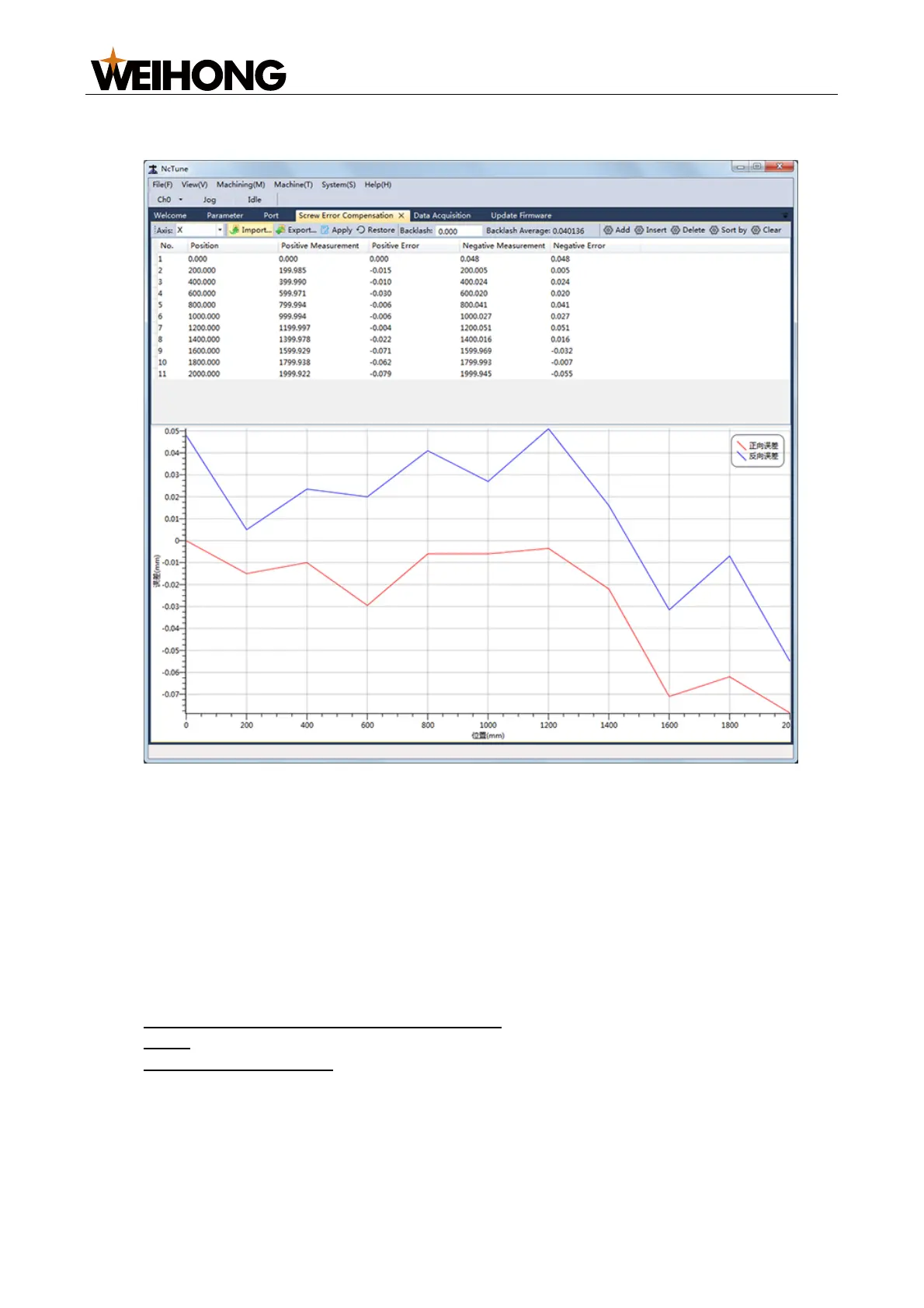

7. To import a compensation file, click Import. NcTune generates the error curve
according to the file:
Red curve: positive error; blue curve: negative error.
8. Click Apply. The system automatically saves the compensation data to the
corresponding configuration file.
Restart NcStudio to make the setting effective.
During machining, the system automatically compensates the screw error according to the
compensation data.
3.11 Check Machine Settings
After debugging is complete, you need to check to see if the machine parameters are set
properly:
 Pulse Equivalent and Electronic Gear Ratio
 Pulse
 Laser Technic Settings
3.11.1 Pulse Equivalent and Electronic Gear Ratio
Check to see if the electronic gear ratio and pulse equivalent are matched.
Follow the steps below to check the electronic gear ratio and pulse equivalent:
1. Mark a point on any axis and set it as the workpiece origin.
