Description of device
3.1 Summary of device components

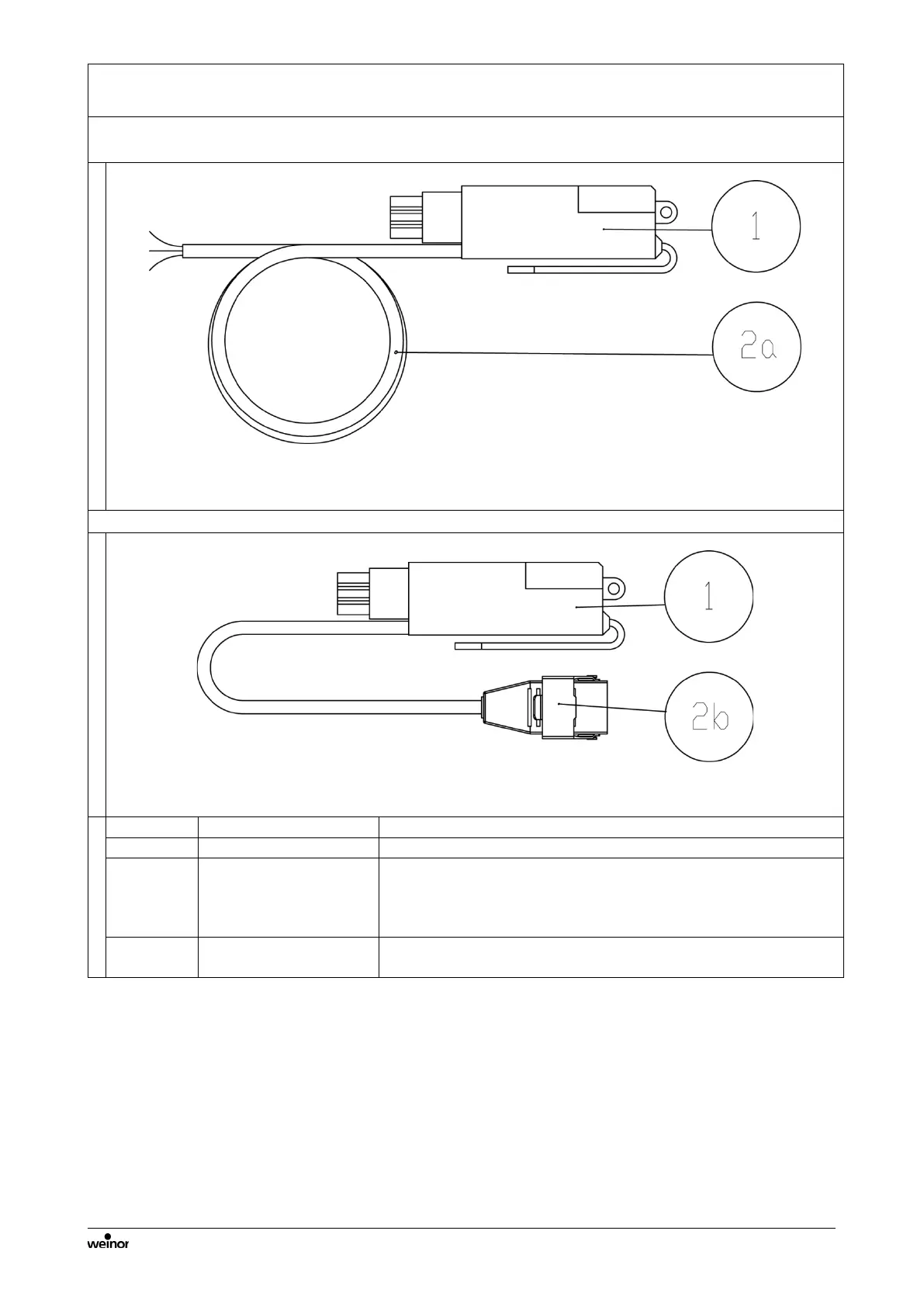

Figure1: BiRec MA remote receiver
Figure 2: BiRec MA-K remote receiver
Item
Connection
1
Awning motor
Hirschmann STAK3 (integrated)
2 a
Mains (MA)
5 m cable with bare ends
Blue (N)
Brown (L)
Green/yellow (PE)
2 b
Mains (MA-K)
0.2 m cable with Hirschmann connector
STAS3 (pre-assembled)
