weinor BiRec MA User Manual

BiConnect BiRec Ma + MA-K
Version 2
2016-04-20
Assembly and installation instructions/ Instructions de montage et d’installation
Item number/
We reserve the right to make technical changes/ Sous reserve de modifications techniques
Numéro d’article
117476-0000
Page 6/28
3.2 Function
Connection lead 3.2.1
The BiRec MA remote receiver is equipped with a dedicated Hirschmann connector which
directly connects to the awning. The 5 m lead can be trimmed and connected by a qualified
electrician at the site of installation. The remote receiver is supplied pre-fitted to the awning and
with all the cables ready-connected.
The BiRec MA-K remote receiver includes a short lead, approx 0.2 m long, and an integrated
STAS3 Hirschmann connector.
Connector pin assignment 3.2.2
The following connector pin assignment is used (see figure 1 for details):
• 5 m power cable with bare end: 230 V power supply
• MA-K only: approx. 0.2 m cable with STAS3 Hirschmann connector: 230 V power supply
• Hirschmann STAK3 (integrated, female): for awning motor
If the motor cable is fitted with a STAS3 Hirschmann connector, the following pin assignment is
used:
Pin designation
Wire colour
Assignment
• N
• Blue
• Pin 1
• UP/DOWN
• Black
• Pin 2
• UP/DOWN
• Brown
• Pin 3
• PE
• Yellow/Green
• PE

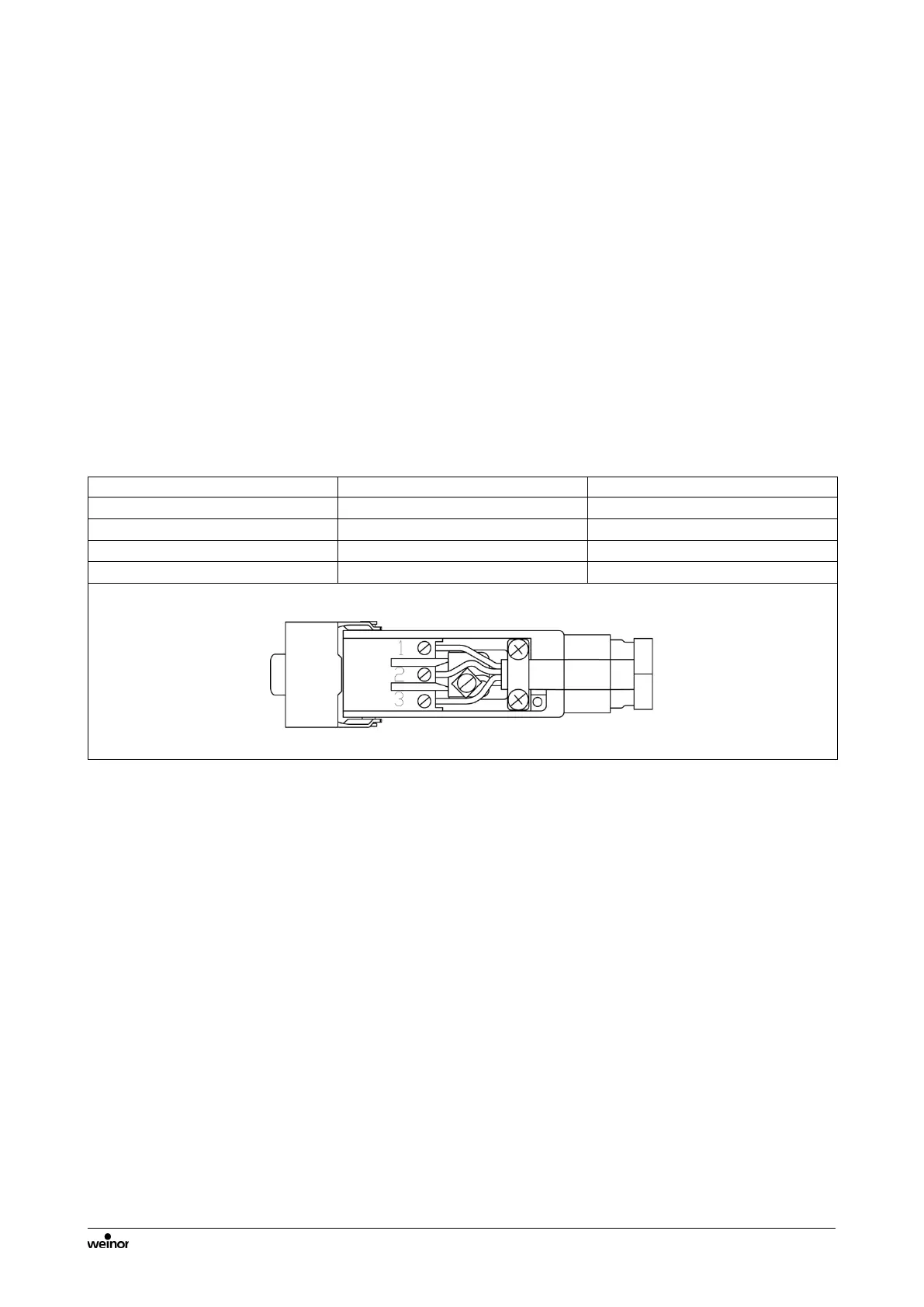

Figure 3: Hirschmannstecker STAS 3 on the power cable
Scope of delivery 3.2.3
If delivered separately, the BiRec MA/MA-K remote receiver is supplied as follows:
• Remote receiver for awning
• Operating instructions
