VertiTex WeiTop – Instructions for assembly, maintanance and use |
Informations importantes pour les revendeurs spécialisés et l’utilisateur final Version | Version 29.10.2019
Reserve technical changes | Sous réserve de modifications techniques Item no. | N° art. 126363-0000 Page | Page 13/28
Notice de montageAssembly instructions
���
Lock in the nut
Bloquer l’écrou
Tighten the nut
Resserrer l’écrou
Cover cap
Cache de protection
Pict 5.7 Pict 5.7
M4x5
Pict 5.6
Pict 5.6
���

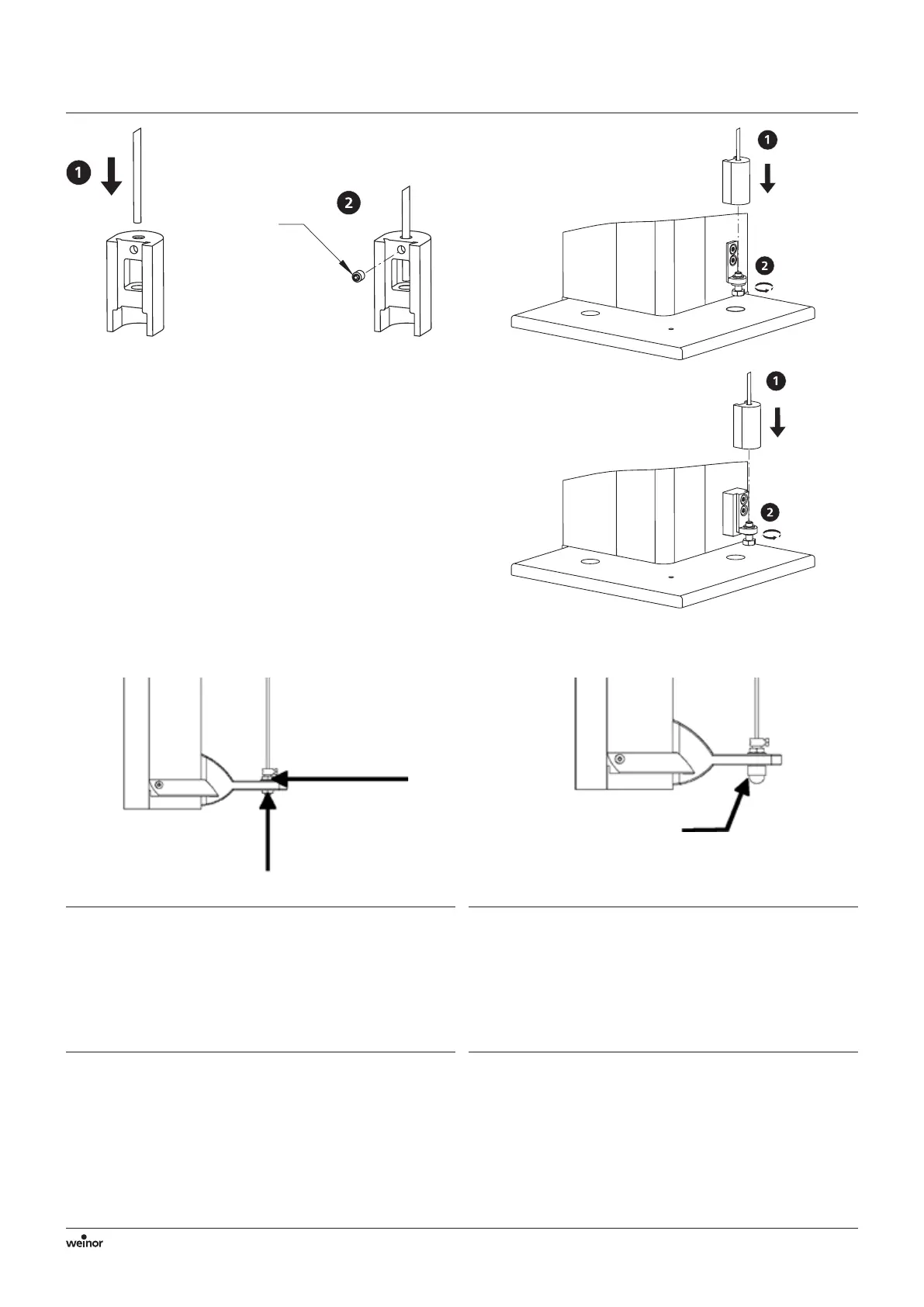

5.6 Attaching the VertiTex WeiTop wire (115 post)
Preload the wire downwards.
Straighten out the wire. Insert into the wire holder cap and
screw on tight using M4 grub screw.
Push the wire holder cap onto the rope holder and screw using
the M6 hex socket head screw.
���
5.7 Attaching the elastic buffer to the bottom rail of the
VertiTex WeiTop for Terrazza
Determine and mark the position of the drill holes on the
bottom rail for the elastic buffer.
Drill the holes using a 7.0 – 7.5 mm drill bit.
Insert the elastic buffer into the drill hole.
���
5.6 Fixation de câble pour VertiTex WeiTop (montant 115)
Précontraindre le câble vers le bas.
Mettre le câble en bonne position. Introduire le cache dans le
support de câble et le visser solidement avec une tige filetée M4.
Déplacer le cache du support de câble sur le support de câble et
fixer avec la vis à tête hexagonale M6.
���
5.7 Fixation du butoir élastique à la barre de charge VertiTex
WeiTop pour Terrazza
Déterminer et marquer l’emplacement des trous sur la barre de
charge pour le butoir élastique.
Percer les trous avec un foret de 7,0 - 7,5 mm.
Insérer le butoir élastique dans les trous.
