VertiTex WeiTop – Instructions for assembly, maintanance and use |
Informations importantes pour les revendeurs spécialisés et l’utilisateur final Version | Version 29.10.2019
Reserve technical changes | Sous réserve de modifications techniques Item no. | N° art. 126363-0000 Page | Page 16/28
Notice de montageAssembly instructions
���
���
6. Assembly of VertiTex WeiTop on indented posts
Hold the wire bracket for the indented posts in the middle of the
position shown and mark the position of the drill holes.
Drill the holes on the posts and gutter using a 3.5 mm drill bit.
Caution: Do not drill too deep as this may damage the drain
pipe.
Plug the drill hole with a suitable sealant.
Screw the wire bracket onto the gutter and posts.
Hang the wire (without spring).
Centre and affix the second wire bracket at the required height
at the lower end of the post. (Minimum space between the drill
holes and the ground: 45 mm).
Ensure that the wire is plumb.
���
6.1 Casing fixing VertiTex WeiTop, see 4.1
���
6.
Montage de VertiTex WeiTop dans le cas de montants insérés
Maintenir le support de câble pour montants insérés à
l’emplacement indiqué, au milieu du montant et marquer
l’emplacement des trous à percer.
Percer les trous au niveau du montant et de la gouttière avec
un foret de 3,5 mm.
Attention : ne pas percer trop en profondeur afin de ne pas
endommager le tuyau de descente.
Combler le trou avec du mastic d’étanchéité.
Visser le support de câble à la gouttière et au montant.
Accrocher le câble (sans ressort).
Fixer le deuxième support de câble à la hauteur souhaitée à
l’extrémité inférieure du montant (la distance minimale du trou
par rapport au sol est de 45 mm).
S’assurer que le câble est bien en position verticale.
���
6.1 Fixation du caisson VertiTex WeiTop cf. 4.1

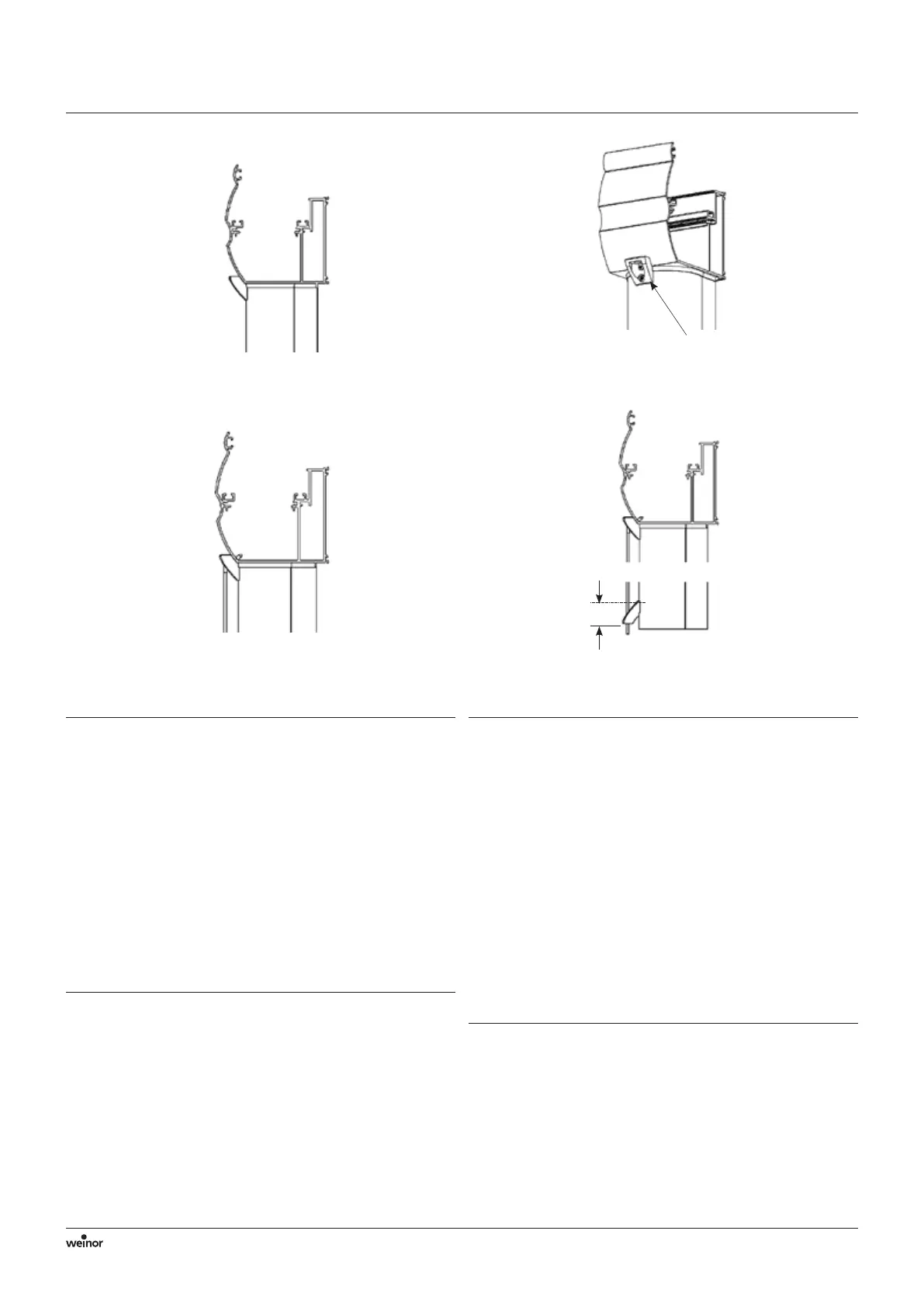

Pict 6
Pict 6
Pict 6
Pict 6
Wire bracket
Support de câble
45
