VertiTex WeiTop – Instructions for assembly, maintanance and use |
Informations importantes pour les revendeurs spécialisés et l’utilisateur final Version | Version 29.10.2019
Reserve technical changes | Sous réserve de modifications techniques Item no. | N° art. 126363-0000 Page | Page 14/28
Notice de montageAssembly instructions

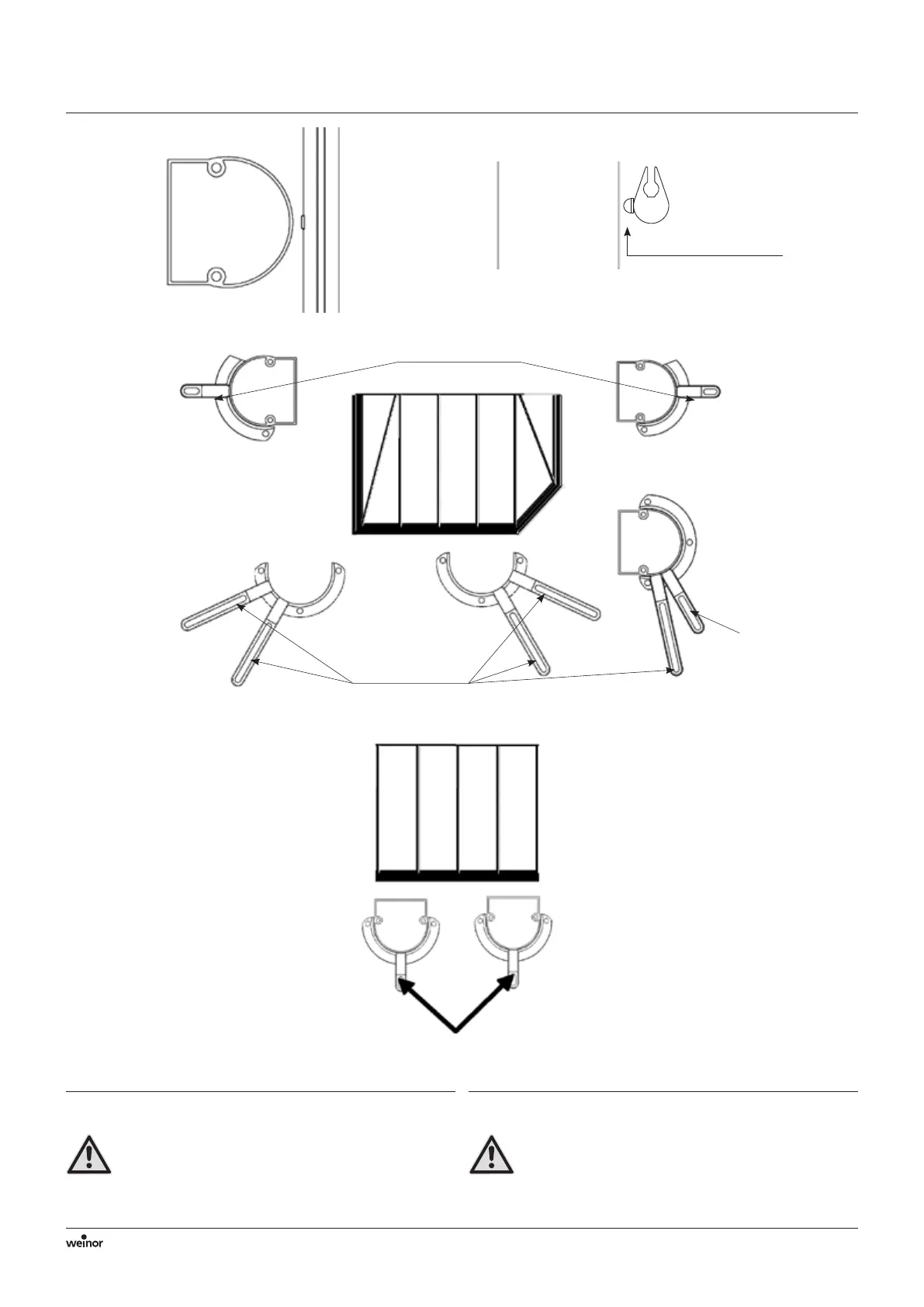

Example of a type I + G WeiTop (standard post) Exemple pour WeiTop type I + G (montant standard)
Wire brace 66
Étai de câble 66
Wire brace 145
Étai de câble 145
Wire brace 100
Étai de câble 100
Seilstrebe 66
Étai de câble 66
���
5.8 Use of VertiTex WeiTop wire braces after positioning
the posts
Note:
If the posts are indented (Terrazza), two wire brackets are
used per post for indented posts and one wire guide for
indented posts.
���
5.8 Utilisation des étais de câble VertiTex WeiTop après
positionnement des montants
Remarque :
En cas de montant inséré (Terrazza), 2 étais de câble et
1 guidage de câble sont utilisés par montant inséré.
Pict 5.8
���
Pict 5.8
Elastic buffer
Butoir élastique
Pict 5.8
Example of a type A WeiTop (also applies to the division for type B) Exemple pour WeiTop type A (s’applique aussi pour la
répartition type B)
Pict 5.8
